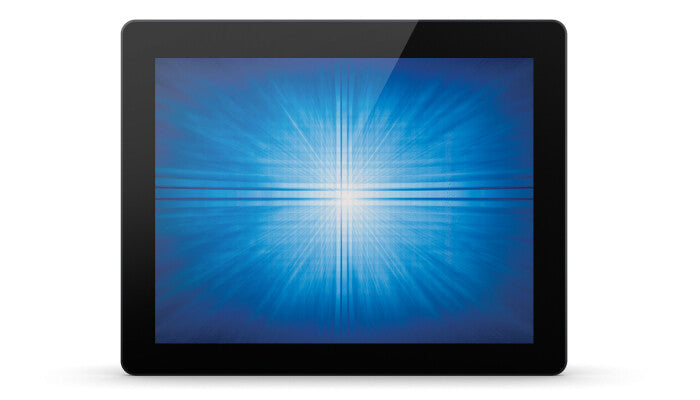

1590L Open Frame Touchscreen (Rev B), 15" LCD (LED) 1024x768, PCAP (TouchPro Projected Capacitive) 10 Touch, HDMI, VGA, Display Port
The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready. The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.
Commercial-grade. The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Display
Display diagonal
38.1 cm (15")
Display technology
LCD
LED backlight
Yes
Display resolution
1024 x 768 pixels
Display brightness
225 cd/m²
Touchscreen
Yes
Touchscreen technology
Capacitive
Response time
16 ms
Contrast ratio (typical)
700:1
Viewing angle, horizontal
160°
Viewing angle, vertical
140°
Native refresh rate
60 Hz
Vertical scan range
50 - 75 Hz
Horizontal scan range
30 - 60 kHz
Ports & interfaces
HDMI ports quantity
1
DisplayPorts quantity
1
Design
Product colour
Black
Screen shape
Flat
VESA mounting
Yes
Panel mounting interface
75 x 75 mm
Performance
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
