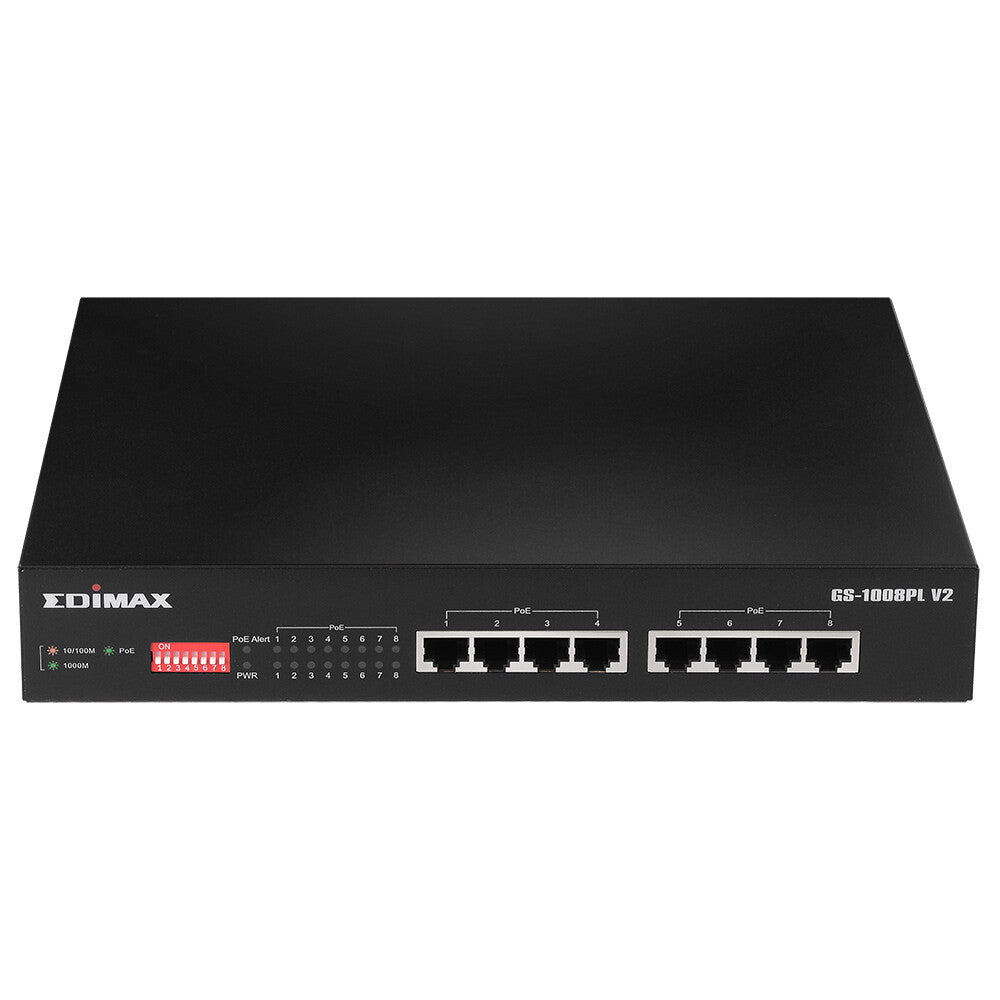

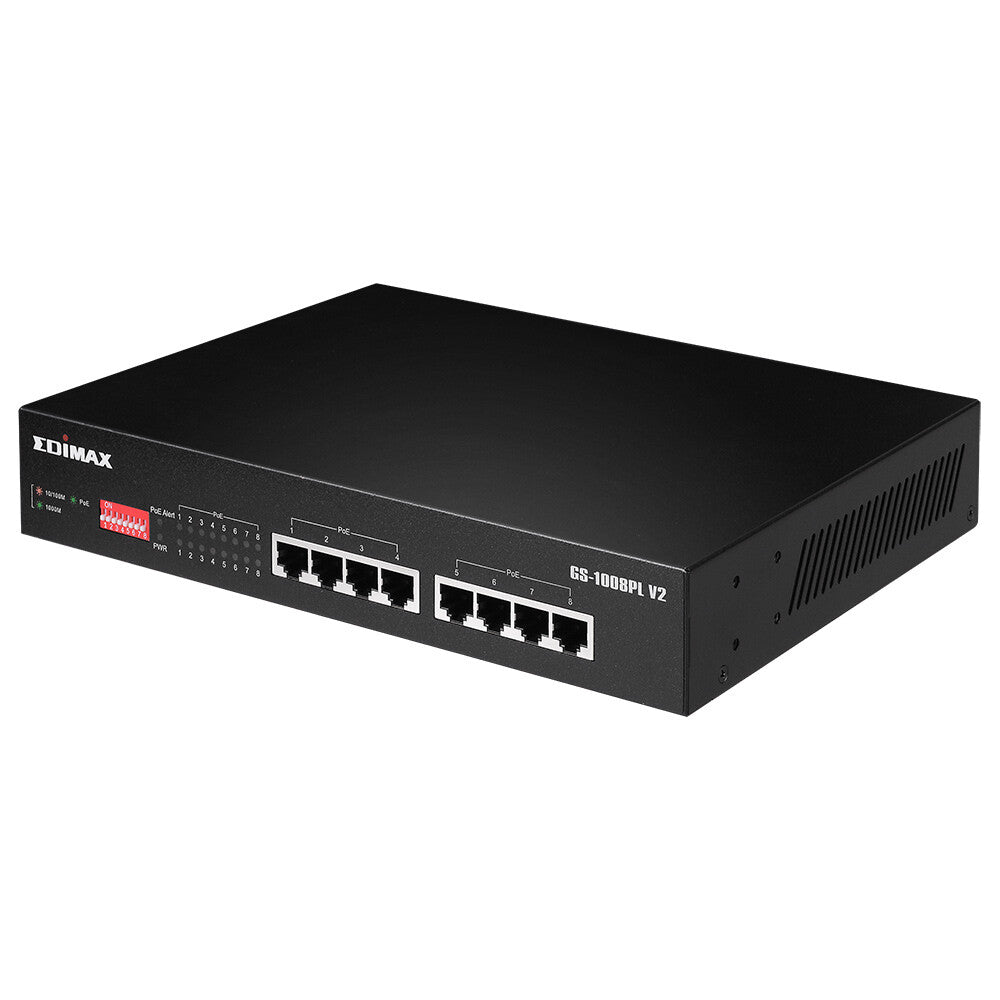

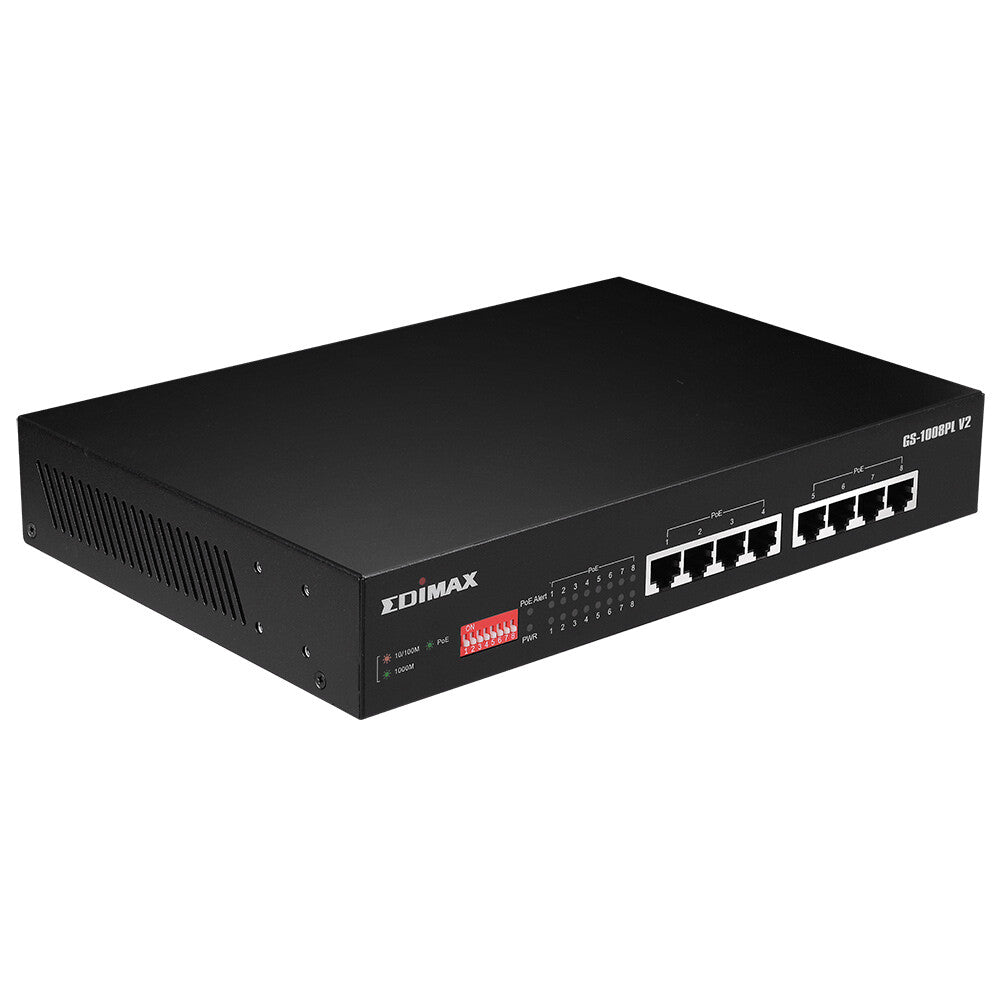

Edimax GS-1008PL V2 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Edimax GS-1008PL V2 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
SKU:GS-1008PL V2
Low stock: 1 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Gigabit High Speed PoE+: Equipped with 8 Gigabit PoE+ ports, IEEE 802.3af/at PoE compliant, supports up to 30W per PoE port (total power budget: 70W)
- PoE Long Range Extension: Guaranteed PoE transmit distance to 200 meters at speed of 10Mbps
- Port-based VLAN: Port isolated from each other to prevent multicast or broadcast storms
- Hardware QoS: Easy DIP switch setup QoS, supports 802.1p, for video & voice traffic priority
- PoE Auto Detection: Auto detect PoE and non-PoE devices to avoid from being damaged by incorrect power sending
- Power Backfeed Protection: Equipped with power backfeed protection to avoid damaging the PoE ports
- Plug-and-Play, Flexible Network Deployment and Energy Efficient
- Fanless, Compact, Rack-Mount, Durable Metal Casing
PoE Long Range Extension
Break Through 100 Meters PoE Distance Limitation
Supports PoE power output over a distance up to 200 meters overcoming the 100 meters limit on Ethernet UTP cable with the PoE Extend “ON”, the GS-1008PL V2 provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.
Innovative Port-based VLAN
Port Isolated from Affecting Each Other
The GS-1008PL V2 features port-based VLAN where ports can be easily isolated from each other. This can help to prevent IP camera’s multicast or broadcast storms from affecting each other.
Easy Hardware QoS
Video & Voice Traffic Priority
Supports 802.1p QoS via DIP switch port 4. This ensures first priority for video and voice traffic for reduced package loss, lower latency and jitter on the network.
Safe Power Backfeed Protection
Avoid Damaging the PoE Ports
Each port equipped with power backfeed protection to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected.
Edimax GS-1000PL V2 Long Range 8-Port Gigabit Ethernet PoE+ Switch with DIP Switch, PoE power backfeed protection
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Gigabit Ethernet (copper) ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| VLAN support | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Half duplex | Yes |
| Full duplex | Yes |
| 10G support | No |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Data transmission | |
|---|---|
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Forwarding rate | 1.488 Mpps |
| Switching capacity | 16 Gbit/s |
| MAC address table | 4096 entries |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Certification | CE, FCC, LVD |
| LED indicators | Activity, Link, Power |
| Housing material | Metal |
| Product colour | Black |
| Form factor | 1U |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Fanless | Yes |
| Technical details | |
|---|---|
| Compliance certificates | CE |
| Power | |
|---|---|
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 70 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) type supported | Active PoE |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.61 kg |
| Height | 44 mm |
| Depth | 184 mm |
| Width | 265 mm |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
