Digitus

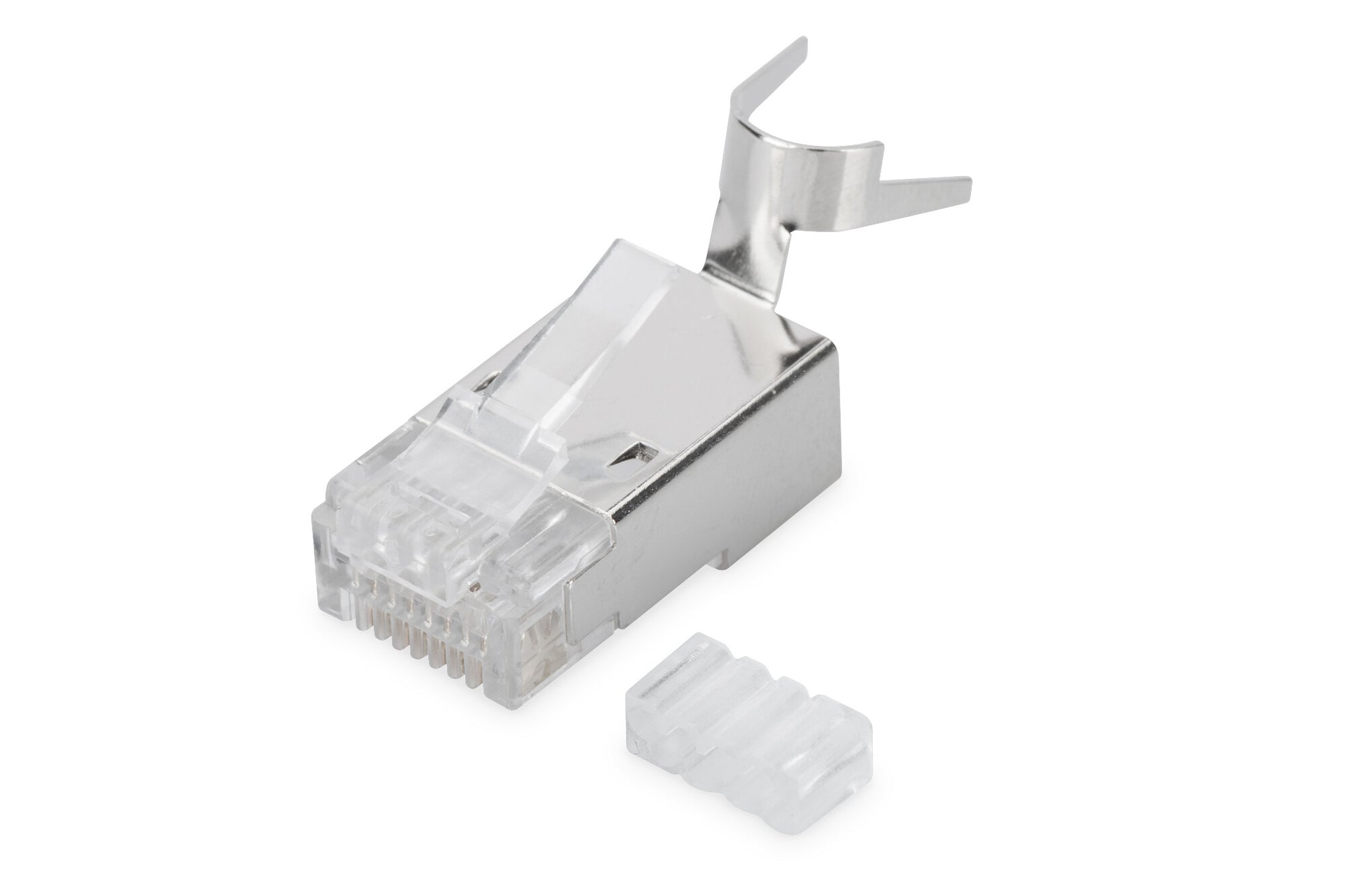

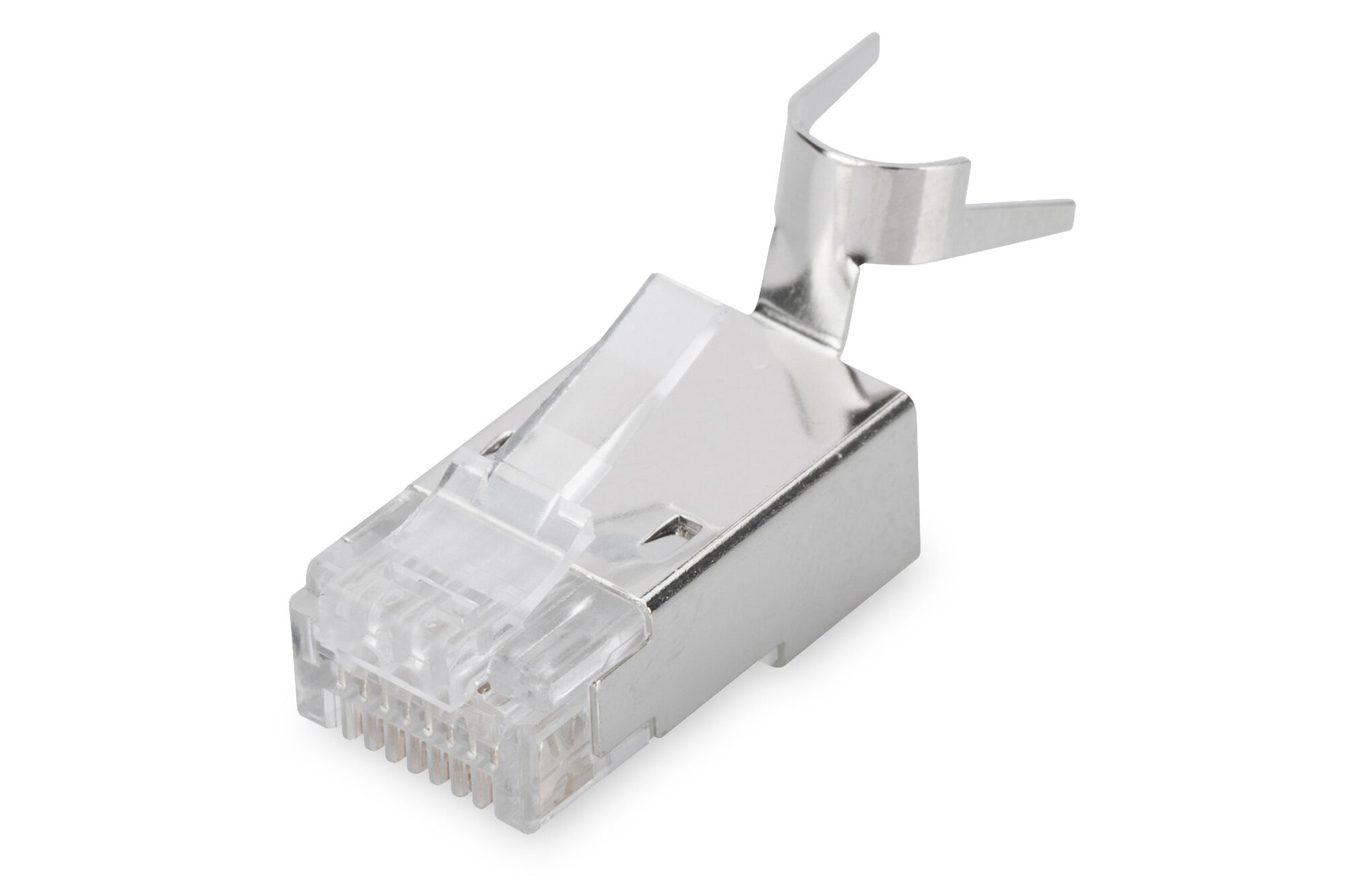

Digitus Modular Plug for Round Cable, CAT 6A, shielded, Pass through connector
Digitus Modular Plug for Round Cable, CAT 6A, shielded, Pass through connector
SKU:AK-219604
Regular price
£1.80 GBP£1.50 GBP
Regular price
£0.00 GBP
Sale price
£1.80 GBP£1.50 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Crimping tool – DN-94025 (Multi Modular Crimping Tool Pass through connectors)
- Layout performance: CAT 6A, 10GBase-T
- Area of application: Patch cable assembly
- Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
- General properties:
- UL certified
- Technical properties:
- Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
- Material connector body: Polycarbonat, clear
- Connector contact: Phosphor bronze, brass 0.6 μ gold-plated
- Flammability: UL 94V-2
- Physical properties:
- Insertion force: ≤ 30 N
- Diameter Cu-Conductor: AWG (23/1... 22/1)
- Operating temperature: -40 °C to +80 °C
- Current carrying capacity: 1A -1.5A at 50 °C
CAT 6A Modular Plug, 8P8C, shielded for solid wire AWG 22-23, pass through
These modular plugs can be used to establish quick and simple connections.
| Features | |
|---|---|
| Product colour | Transparent |
| Material | Polycarbonate |
| Cable standard | Cat6a |
| Connector contacts plating | Gold |
| Connector shielding | Yes |
| Certification | UL ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
| Logistics data | |
|---|---|
| Country of origin | China |
| UK Trade Tariff code | 85369010 |
| Packaging data | |
|---|---|
| Package width | 20 mm |
| Package depth | 10 mm |
| Package height | 5 mm |
| Package weight | 3.98 g |
| Technical details | |
|---|---|
| Technology | 10GBase-T |
