DELL TB16 Wired Thunderbolt 3 Black
DELL TB16 Wired Thunderbolt 3 Black
Couldn't load pickup availability
SKU:452-BCOS
Low stock: 2 left
- Wired
- Host interface: Thunderbolt 3
- Ethernet LAN 10,100,1000 Mbit/s
One dock. One cable. Ultimate Performance.

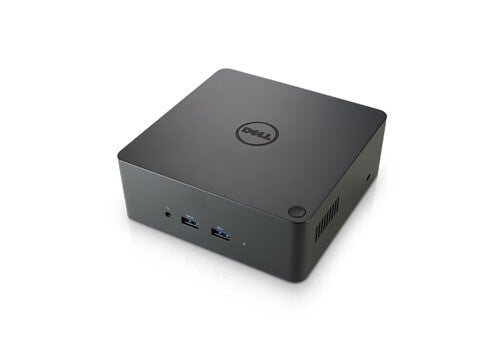

The Dell Thunderbolt™ Dock TB16 -240W with Intel® Thunderbolt 3 technology is the ultimate docking solution, designed for power users and traditional workstation clients, creating the ability to connect up to three FHD displays, two 4K displays or one 5K display at 60Hz. Data transfers up to 40 Gbps allow lightning-fast transfers of larger files such as video editing files.
Small footprint and big flexibility

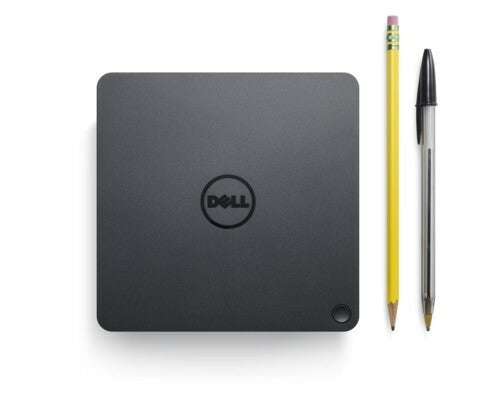

The Dell Thunderbolt™ Dock TB16 -240W is small in size – just 5.7 x 5.7 x 2 inches (145 x 145 x 51mm). By connecting one cable to your laptop, you can get access to a wide variety of ports, enhancing productivity.
One source for power
The Dell Thunderbolt™ Dock TB16 -240W can provide power to your laptop (at 19.5V) and can also provide up to 60W of power to attached Thunderbolt™ 3 peripherals. Dell Precision, Latitude or XPS notebooks with a Thunderbolt™ 3 port can receive up to 130W of power.
*Precision 7510/7520/7530/7710/7720/7730 require more power than 130W, so when docked with the Dell Business Thunderbolt Dock TB16, the workstation power adapter needs to be plugged in for optimal operation. For the best experience with Precision 7530 or 7730, choose the Dell Precision Thunderbolt Dock TB18DC which comes with a dual USB-C connector that provides up to 210W power delivery, so you no longer need an additional power adapter to charge your Precision 7530 or 7730.
| Performance | |
|---|---|
| Compatibility | Latitude 5480 (Discrete), 5580 (Discrete), 7275, 7280, 7285 2-in-1, 7370, 7380, 7480, E5270 (Discrete), E5470 (Discrete), E5570 (Discrete); Precision Mobile Workstation 3510, 3520, 5510, 5520, 7510, 7520, 7710, 7720; XPS 12 (9250), 13 (9350), 13 9360, 15 (9550), 15 9560, 9250 |
| Brand compatibility | Dell |
| LED indicators | Status |
| On/off switch | Yes |
| Cable lock slot type | Kensington |
| Number of displays supported | 3 |
| Card reader integrated | No |
| Product colour | Black |
| Power | |
|---|---|
| Output voltage | 19.5 V |
| Output current | 12.31 A |
| Power supply type | External |
| Power supply | 240 W |
| Input current | 3.5 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Weight & dimensions | |
|---|---|
| Weight | 720 g |
| Height | 52 mm |
| Depth | 145 mm |
| Width | 145 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Cables included | USB Type-C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
