Datalogic

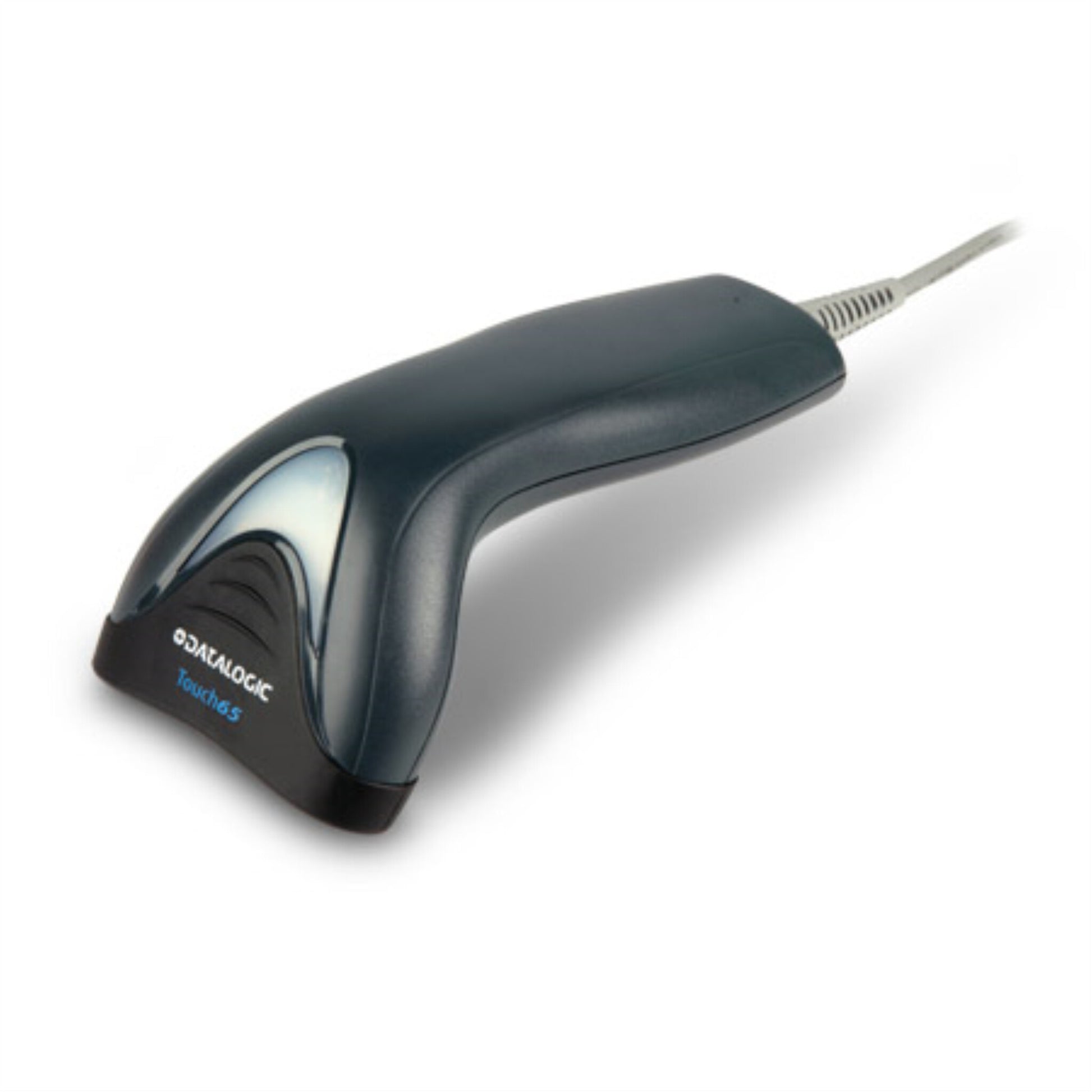

Datalogic Touch 65 Lite Handheld bar code reader 1D Laser Black

Datalogic Touch 65 Lite Handheld bar code reader 1D Laser Black

£68.47 GBP
£68.47 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

TD1120-BK-65K1

44 in stock

  • Handheld bar code reader Black
  • Scanner type: 1D Sensor type: Laser
  • Code 39, EAN-13
  • Working distance: 15 cm
  • Tilt reading angle: -45 - 45°
  • Wired Standard interfaces: USB
Corded, USB Kit w/Scanner, Holder, 90A052044 Cable, Black

The Touch TD1100 readers are available with the option of two different sizes of reading windows: 6.5 cm / 2.6 in (TD1100-65) for reading standard bar codes or 9.0 cm / 3.5 in (TD1100-90) for reading wide bar codes. Both options are provided with a complete all-in-one multi-interface solution including RS-232, USB and Keyboard Wedge (TD1130) and with USB or RS-232 / Keyboard Wedge interfaces (TD1120/TD1170). All models include the new innovative 'read-through' holder. Cables, power cords and supplies are all sold separately.

Scanning
Type Handheld bar code reader
Scanner type 1D
Linear (1D) barcodes supported Code 39, EAN-13
2D (matrix & stacked) barcodes supported Not supported
Sensor type Laser
Working distance 15 cm
Light levels (direct sunlight) 0 - 20000 lx
Wavelength 640 nm
Tilt reading angle -45 - 45°
Pitch reading angle -65 - 65°
Yaw reading angle -70 - 70°
Tilt angle range -45 - 45°
Ports & interfaces
Connectivity technology Wired
Standard interfaces USB
Bluetooth No
Performance
Product colour Black
International Protection (IP) code IP30
Buzzer Yes
Built-in display No
Certification RoHS
Power
Input voltage 5 V
Power consumption 100 mA
Weight & dimensions
Width 84 mm
Depth 160 mm
Height 58 mm
Weight 130 g
Packaging data
Cables included USB
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 84716070
