Datalogic

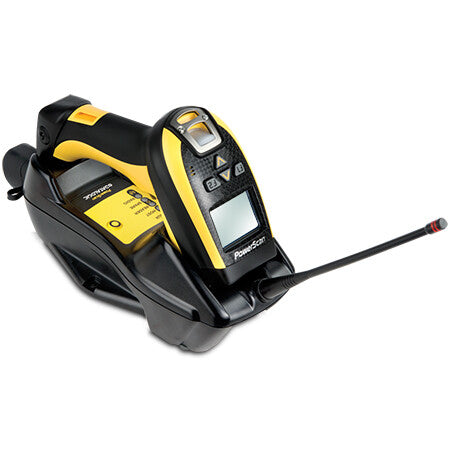

Datalogic PowerScan PM9100 Handheld bar code reader 1D LED Black, Yellow
Datalogic PowerScan PM9100 Handheld bar code reader 1D LED Black, Yellow
SKU:PM9100-D433RBK20
Out of stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Handheld bar code reader Black, Yellow
- Scanner type: 1D Sensor type: LED
- Codabar, Code 32, Code 39, Code 93, EAN 2, EAN 5, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, Interleaved 2 of 5, U.P.C.
- Tilt reading angle: -45 - 45°
- Standard interfaces: RS-232
- Power source type: Battery Lithium-Ion (Li-Ion) 2150 mAh
The PowerScan PM9100 linear imager is a cordless device offering state-of-the-art performance in an industrial product and features Datalogic’s STAR Cordless System narrow band radio. This linear imager introduces Datalogic’s new and innovative scanning technology, implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager.
The PM9100 imager also features Datalogic’s exclusive 3 Green Lights (3GL) for superior good read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle.
The PM9100 linear imager is available in 3 models: a basic model with no display or keypad; with display and 4-key keypad or with display and full alphanumeric keypad.
All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.
| Scanning | |
|---|---|
| Yaw reading angle | -70 - 70° |
| Pitch reading angle | -75 - 75° |
| Tilt reading angle | -45 - 45° |
| Linear (1D) barcodes supported | Codabar, Code 32, Code 39, Code 93, EAN 2, EAN 5, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, Interleaved 2 of 5, U.P.C. |
| Sensor type | LED |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Scanner type | 1D |
| Type | Handheld bar code reader |
| Ports & interfaces | |
|---|---|
| Operating frequency | 433 MHz |
| Wireless range | 50 m |
| Standard interfaces | RS-232 |
| Performance | |
|---|---|
| Backlight display | Yes |
| Display resolution | 48 x 132 pixels |
| Built-in display | Yes |
| LED indicators | Yes |
| Keys quantity | 4 keys |
| Protection features | Shock resistant |
| International Protection (IP) code | IP65 |
| Product colour | Black, Yellow |
| Power | |
|---|---|
| Power consumption | 500 mA |
| Input voltage | 10 - 30 V |
| Battery life | 4 h |
| Number of reads per charge | 50000 |
| Battery capacity | 2150 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power source type | Battery |
| Weight & dimensions | |
|---|---|
| Weight | 435 g |
| Base dimensions | 240 x 108 x 95 mm |
| Height | 74 mm |
| Depth | 110 mm |
| Width | 212 mm |
| Packaging data | |
|---|---|
| Cables included | RS-232 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Sustainability certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84716070 |
