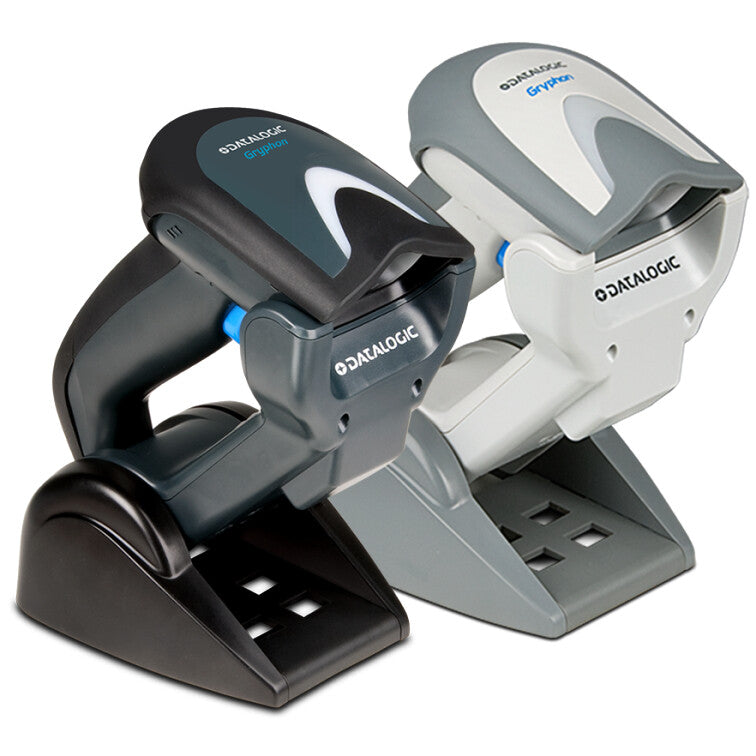

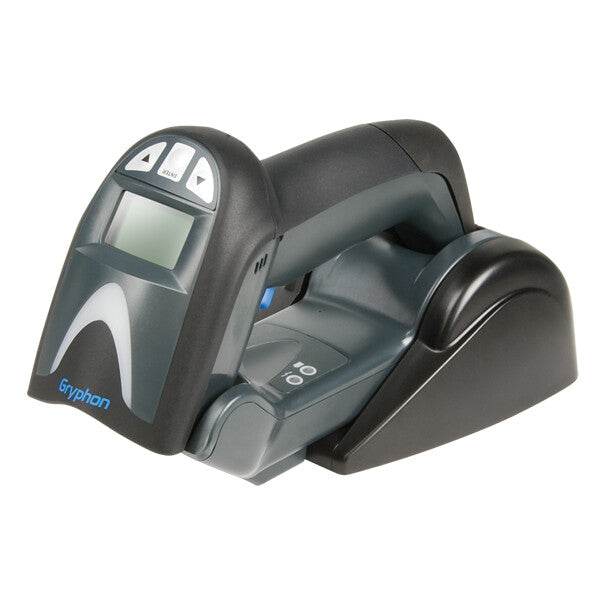

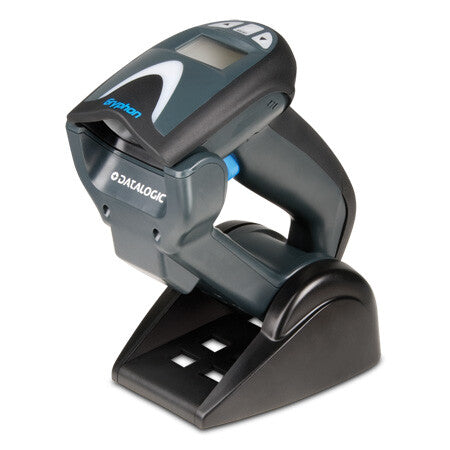

Datalogic Gryphon I GM4132 Handheld bar code reader 1D Black, Grey

Datalogic Gryphon I GM4132 Handheld bar code reader 1D Black, Grey

Regular price £434.58 GBP
Regular price Sale price £434.58 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:GM4132-BK-433K1

28 in stock

  • Extremely snappy reading performance with speeds up to 325 reads/second
  • Datalogic STAR Cordless System™ with up to 30 m / 98 ft range

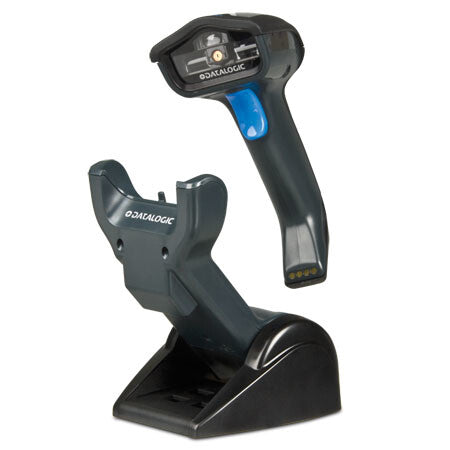

  • Two-position cradle with Scan-While-Charging capability
Gryphon GM4132, 433 Mhz, Kit, USB, Black (Incl. base station BC4032-BK-433 & cable 90A052065) Not for use in the US

Extremely versatile and durable, the Gryphon GM4100 cordless linear imaging readers are the ultimate solution for applications in retail and light industrial environments where mobility is necessary for improved productivity. Narrow band radio communications with Datalogic’s STAR Cordless System™ is the key to increased productivity and flexibility in the workplace. The GM4100 reader series offer scalable solutions from simple point-to-point applications to point-to-multipoint installations with up to 16 readers connected to the same base station. Datalogic’s new, patented 2-position cradle provides multiple solutions to answer different functional and reduced space requirements. It provides hands-free reading capabilities and a scan-while-charging feature to ensure constant up-time for increased productivity. GM4100 Batch Mode capability allows thousands of codes to be stored in memory. This feature combined with a long lasting 50K scans per charge Lithium-Ion battery allows unlimited mobility and reliable data collection when out-of-range from the base station. Standard multi-interface capabilities (GM4130) provide host connectivity via USB, RS-232, Keyboard Wedge and Wand Emulation while IBM interface models (GM4110) provide connectivity via IBM 46XX, USB and RS-232 emulation.

Scanning
Yaw reading angle -65 - 65°
Pitch reading angle -65 - 65°
Tilt reading angle -35 - 35°
Read rate (max) 325 reads/s
Scanner type 1D
Type Handheld bar code reader
Ports & interfaces
Operating frequency 433 MHz
Wireless range 30 m
Standard interfaces RF Wireless, USB
Connectivity technology Wired & Wireless
Performance
LED indicators Yes
International Protection (IP) code IP52
Product colour Black, Grey
Power
Charging time 4 h
Number of reads per charge 50000
Battery capacity 2100 mAh
Battery technology Lithium-Ion (Li-Ion)
Power source type Battery
Weight & dimensions
Weight 246 g
Height 181 mm
Depth 100 mm
Width 71 mm
Packaging data
Cables included USB
Charging base Yes
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 5 - 95%
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 84716070
