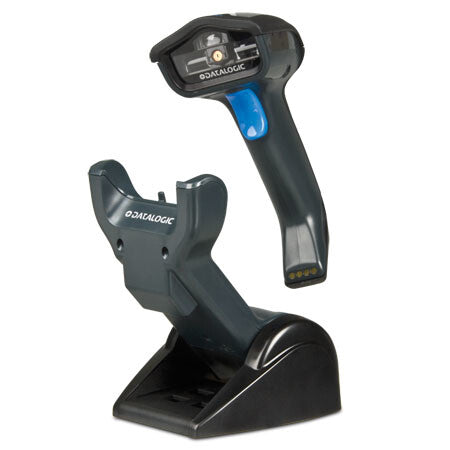

Datalogic Gryphon I GM4132 Handheld bar code reader 1D Black, Grey
Datalogic Gryphon I GM4132 Handheld bar code reader 1D Black, Grey
SKU:GM4132-BK-433K1
Low stock: 6 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Extremely snappy reading performance with speeds up to 325 reads/second
- Datalogic STAR Cordless System™ with up to 30 m / 98 ft range
- Two-position cradle with Scan-While-Charging capability
Extremely versatile and durable, the Gryphon GM4100 cordless linear imaging readers are the ultimate solution for applications in retail and light industrial environments where mobility is necessary for improved productivity. Narrow band radio communications with Datalogic’s STAR Cordless System™ is the key to increased productivity and flexibility in the workplace. The GM4100 reader series offer scalable solutions from simple point-to-point applications to point-to-multipoint installations with up to 16 readers connected to the same base station. Datalogic’s new, patented 2-position cradle provides multiple solutions to answer different functional and reduced space requirements. It provides hands-free reading capabilities and a scan-while-charging feature to ensure constant up-time for increased productivity. GM4100 Batch Mode capability allows thousands of codes to be stored in memory. This feature combined with a long lasting 50K scans per charge Lithium-Ion battery allows unlimited mobility and reliable data collection when out-of-range from the base station. Standard multi-interface capabilities (GM4130) provide host connectivity via USB, RS-232, Keyboard Wedge and Wand Emulation while IBM interface models (GM4110) provide connectivity via IBM 46XX, USB and RS-232 emulation.
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D |
| Read rate (max) | 325 reads/s |
| Tilt reading angle | -35 - 35° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -65 - 65° |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired & Wireless |
| Standard interfaces | RF Wireless, USB |
| Wireless range | 30 m |
| Operating frequency | 433 MHz |
| Performance | |
|---|---|
| Product colour | Black, Grey |
| International Protection (IP) code | IP52 |
| LED indicators | Yes |
| Power | |
|---|---|
| Power source type | Battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2100 mAh |
| Number of reads per charge | 50000 |
| Charging time | 4 h |
| Weight & dimensions | |
|---|---|
| Width | 71 mm |
| Depth | 100 mm |
| Height | 181 mm |
| Weight | 246 g |
| Packaging data | |
|---|---|
| Cables included | USB |
| Charging base | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84716070 |
