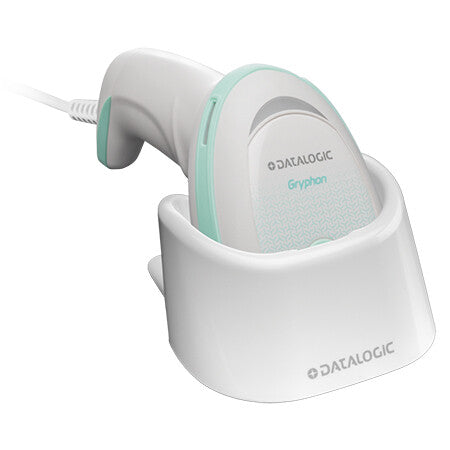

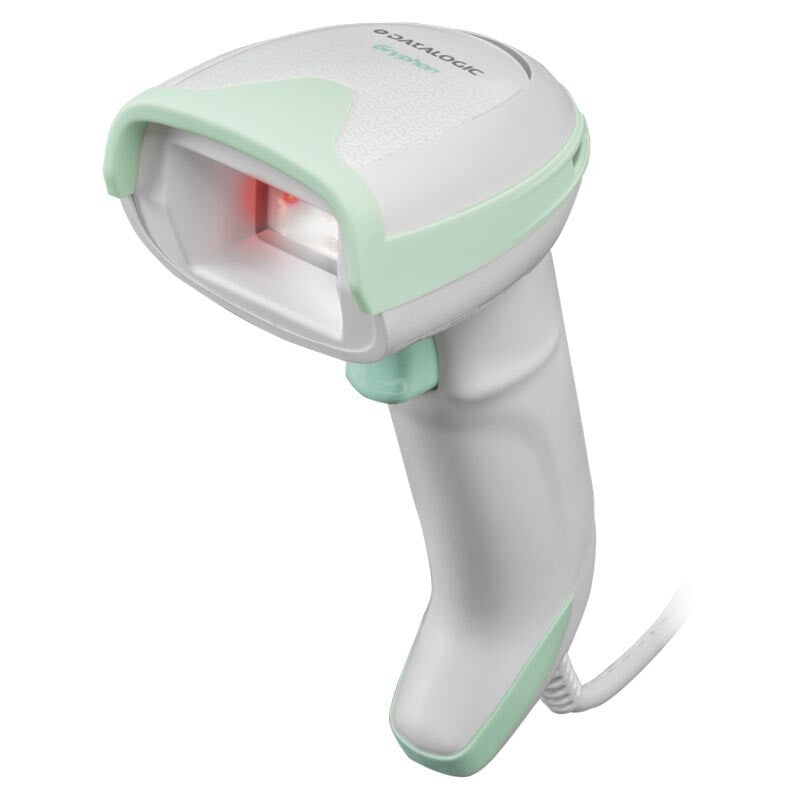

Datalogic Gryphon I GD4520 Handheld bar code reader 1D/2D White
Datalogic Gryphon I GD4520 Handheld bar code reader 1D/2D White
SKU:GD4520-HCK1-HD
100 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Handheld bar code reader White
- Scanner type: 1D/2D
- Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code
- 1280 x 800 pixels
- Tilt reading angle: 0 - 360°
- Wired Standard interfaces: USB
- Power source type: DC
Kit includes Scanner & USB Cable 90A052278.
The Gryphon™ 4500 2D series represents the premium range of hand held scanners from Datalogic. The GD4500 scanner is the desk (corded) version for general purpose applications.
The Gryphon I GD4500 imager stands out with an elegant and trendy new design, unchallenged ergonomics and features the most advanced Megapixel sensor with warm-white-illumination 2D technology for outstanding performance.
The Gryphon GD4500 imager takes advantage of Datalogic’s Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering both hand held and presentation reading options.
Datalogic’s reading technology with highly visible warm-white illumination is easier on the human eyes and reads colored labels much better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.
The GD4500 imager is also available in a Healthcare model with disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Wavelength | 650 nm |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | -65 - 65° |
| Motion tolerance (cm/s) | 88.9 |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Standard interfaces | USB |
| Performance | |
|---|---|
| Product colour | White |
| International Protection (IP) code | IP52 |
| Protection features | Shock resistant |
| Built-in display | No |
| Image formats supported | TIFF, BMP, JPEG |
| Certification | IEC 60825 Class 2 |
| Power | |
|---|---|
| Power source type | DC |
| Input voltage | 5 V |
| Power consumption | 300 mA |
| Weight & dimensions | |
|---|---|
| Width | 68 mm |
| Depth | 109 mm |
| Height | 166 mm |
| Weight | 161 g |
| Packaging data | |
|---|---|
| Cables included | USB |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84716070 |
