Datalogic

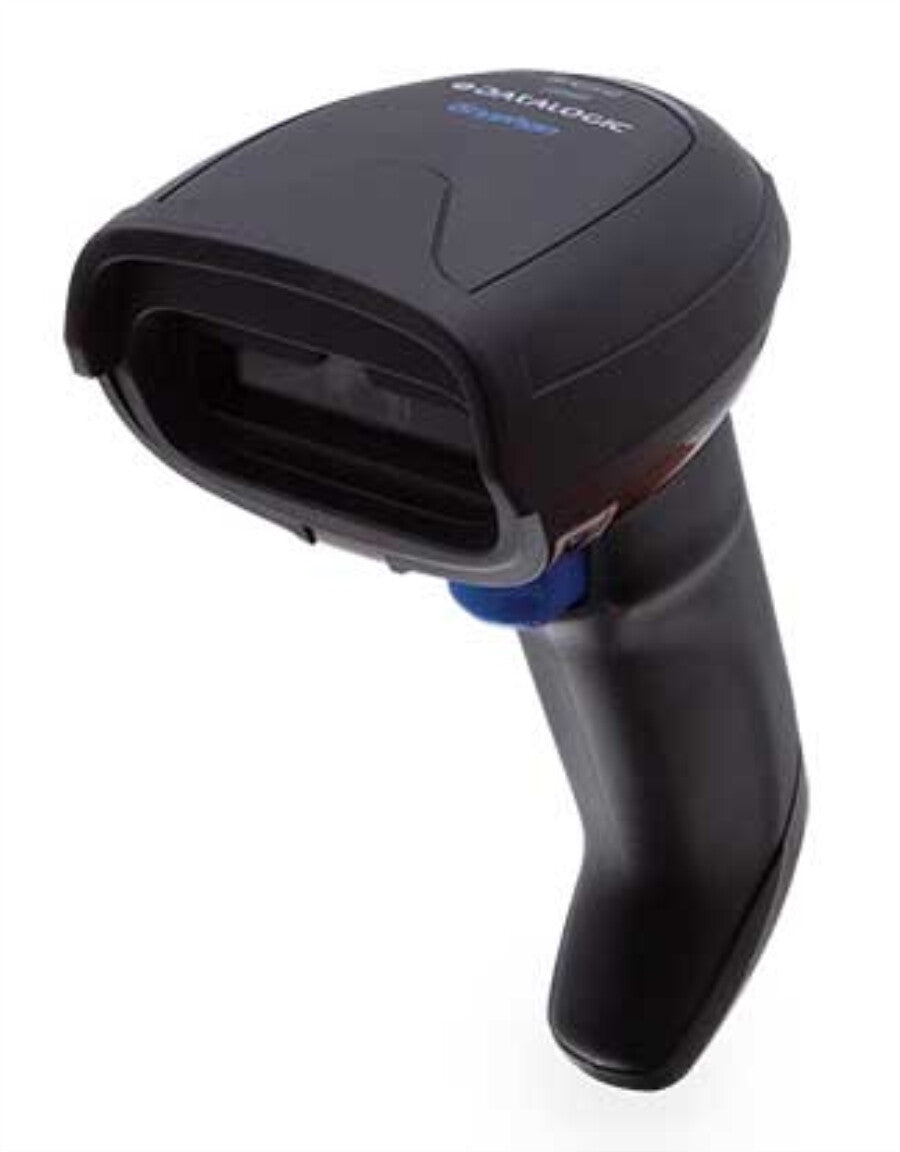

Datalogic Gryphon I GD4220 Handheld bar code reader 1D Linear Black

Datalogic Gryphon I GD4220 Handheld bar code reader 1D Linear Black

Regular price £124.70 GBP
Regular price Sale price £124.70 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:GD4220-BKK1

79 in stock

  • Enhanced linear imaging technology for superior scanning and Depth of Field
  • Reads 1D high-density and low-resolution codes, hard-to-read, poor or damaged codes and bar codes from mobile devices
  • Datalogic’s distinctive ‘soft line viewfinder’ to easily target the barcode to be read
  • Datalogic’s ‘Green Spot’ technology and 3GL (3 Green Lights) for superior good-read feedback
  • Motionix motion-sensing technology for seamless reading mode transitions
  • Choice of Bluetooth wireless technology or Datalogic’s STAR Cordless System (radio frequencies available in 433 MHz or 910 MHz)
  • Wireless battery charging system
  • Choice of WLC4190 sleek desk/wall cradle with USB Type C connectivity or WLC4090 adjustable position cradle with Scan-While-Charging capability
  • Long lasting replaceable Lithium-Ion battery
  • Multi-interface options: USB type C / USB only or multi-interface USB type C / USB /RS-232 / Keyboard Wedge multi-interface
  • Disinfectant-Ready enclosures withstand daily cleaning with harsh disinfectant solutions
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Gryphon I GD4220, Kit, Linear Imager, USB-only, Black (Kit includes Scanner and USB Cable

The Gryphon™ 4200 series represents the premium range of 1D hand held scanners from Datalogic for general purpose applications. Designed to provide the best-in-class reading performance, the Gryphon 4200 readers’ ability to capture bar codes from near to far, to read both high-density and low resolution codes, to decode hard-to-read, poorly printed or damaged codes and to easily read bar codes from mobile devices simplifies all applications. Ideal for hand held reading, the Gryphon 4200 utilizes Datalogic’s Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the ‘ready-to-read’ scanning mode. Datalogic’s distinctive ‘soft line viewfinder’ helps the operator to easily target the code to be read, making it easier and faster to point, shoot and decode the proper label, reducing accidental reads in a multiple bar code situation. The Gryphon 4200 Series includes 3 models: a corded ‘Desk’ model (GD4200), a cordless model featuring Bluetooth® wireless technology (GBT4200) and a cordless model featuring Datalogic’s STAR Cordless System™ narrow band radio (GM4200).

Scanning
Yaw reading angle 0 - 65°
Pitch reading angle 0 - 65°
Tilt reading angle 0 - 45°
Read rate (max) 400 reads/s
Linear (1D) barcodes supported GS1 DataBar
Sensor type Linear
2D (matrix & stacked) barcodes supported Not supported
Scanner type 1D
Type Handheld bar code reader
Ports & interfaces
Standard interfaces Keyboard wedge, RS-232, USB
Connectivity technology Wired
Performance
Print contrast 15%
Ambient lighting Yes
LED indicators Yes
Protection features Electrostatic Discharge (ESD) protection
International Protection (IP) code IP52
Product colour Black
Power
Input voltage 5 V
Power source type DC, USB
Weight & dimensions
Weight 163 g
Height 109 mm
Depth 68 mm
Width 166 mm
Packaging data
Cables included USB Type-C
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 0 - 95%
Logistics data
Harmonized System (HS) code 84716070
