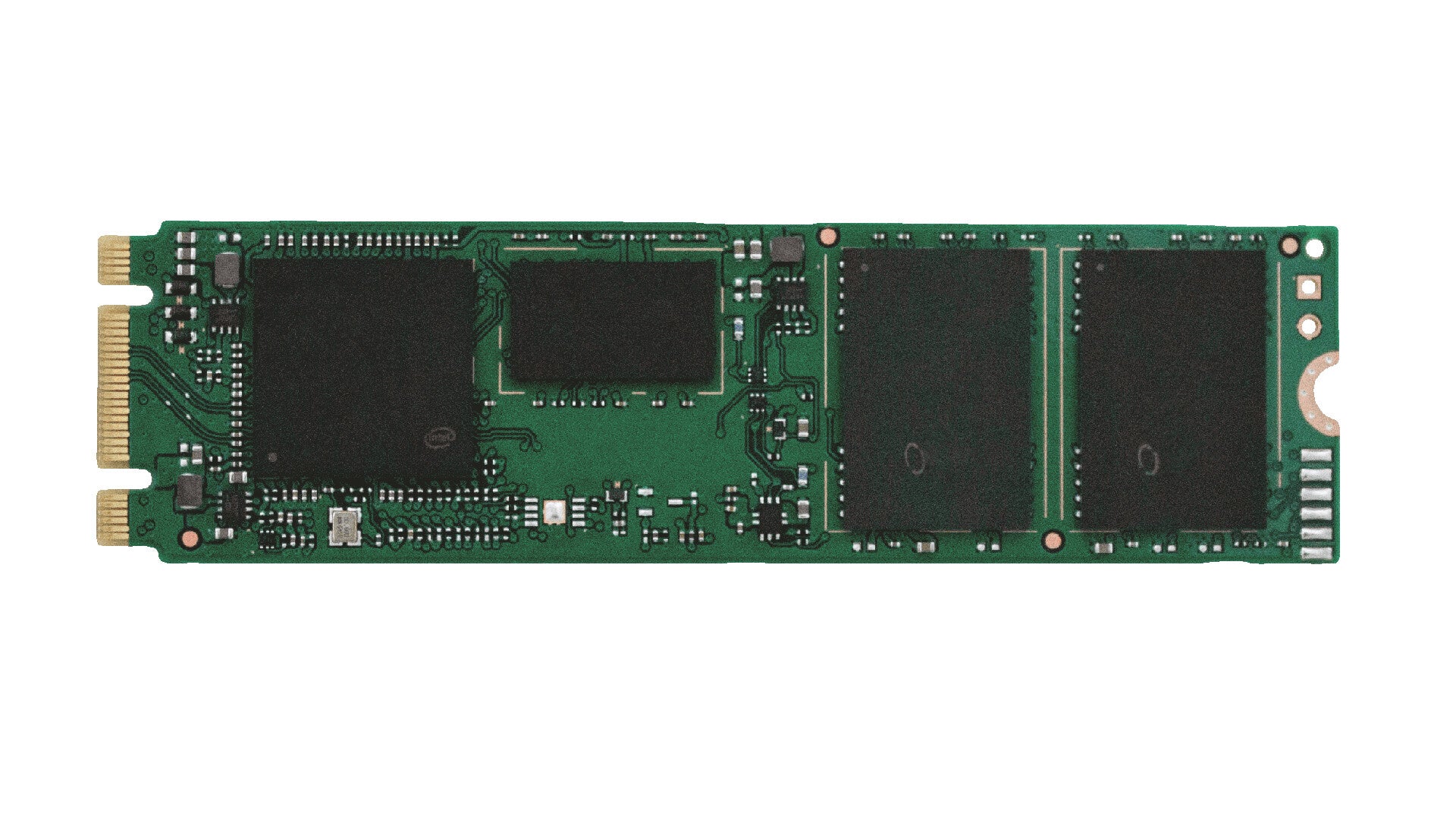

D3 SSDSCKKB240G801 internal solid state drive 240 GB M.2 Serial ATA III TLC 3D NAND

D3 SSDSCKKB240G801 internal solid state drive 240 GB M.2 Serial ATA III TLC 3D NAND

£338.35 GBP
£338.35 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SSDSCKKB240G801

Low stock: 3 left

  • 240 GB M.2 Serial ATA III
  • Read speed: 555 MB/s
  • Write speed: 275 MB/s
  • TLC 3D NAND
  • Hardware encryption 256-bit AES
  • Component for: Server/workstation
240 GB, M.2, Serial ATA III, 3D TLC

Enhanced Power Loss Data Protection

Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.

Hardware Encryption

Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.

End-to-End Data Protection

End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.

Features
Temperature monitoring and logging Yes
Commodity Classification Automated Tracking System (CCATS) G162706
Export Control Classification Number (ECCN) 5A992C
SSD ARK ID 134922
Mean time between failures (MTBF) 2000000 h
Uncorrectable Bit Error Rate (UBER) < 1 per 10^17 bits read
SSD temperature monitoring Yes
Enhanced Power Loss Data Protection technology Yes
End-to-End Data Protection Yes
Write latency 36 µs
Read latency 34 µs
Random write 16000 IOPS
Random read 87000 IOPS
Random write (100% span) 16000 IOPS
Random read (100% span) 87000 IOPS
Write speed 275 MB/s
Read speed 555 MB/s
Security algorithms 256-bit AES
Hardware encryption Yes
Component for Server/workstation
Memory type TLC 3D NAND
NVMe No
Interface Serial ATA III
SSD capacity 240 GB
SSD form factor M.2
Power
Power consumption (idle) 0.8 W
Power consumption (write) 2.2 W
Power consumption (read) 2.2 W
Brand-specific features
Intel® Smart Response Technology No
Intel High Endurance Technology (HET) No
Intel® Rapid Start Technology No
Intel® Remote Secure Erase No
general_information_attribute_container_name
attribute_product_family_name D3
Operational conditions
Operating / non-operating shock 1000 G/0.5 msec
Non-operating shock 1000 G
Operating shock 1000 G
Non-operating vibration 3.13 G
Operating vibration 2.17 G
Minimum operating temperature 0 °C
Maximum operating temperature 70 °C
Operating temperature (T-T) 0 - 70 °C
Weight & dimensions
Height 80 mm
Width 22 mm
Logistics data
Harmonized System (HS) code 84717070
Other features
Product codename Youngsville Refresh
Product series Intel® SSD D3-S4510 Series
Power consumption (active) 2.2 W
SSD endurance rating 0.9 PBW
SSD power consumption (idle) 0.8W
SSD shock 1000 G/0.5 msec
Sequential reading 555 MB/s
Sequential writing speed 275 MB/s
Status Launched
Launch date Q1'19
Processor family Intel SSD D3
Endurance rating 0.85 PB
