D-Link

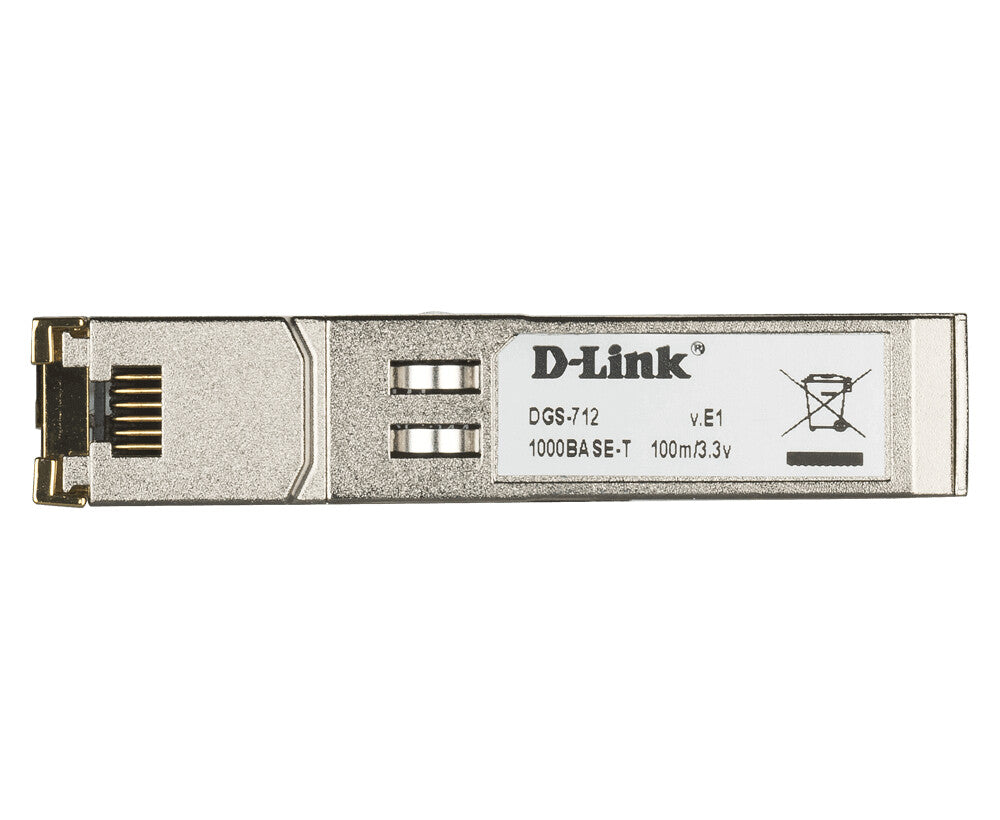

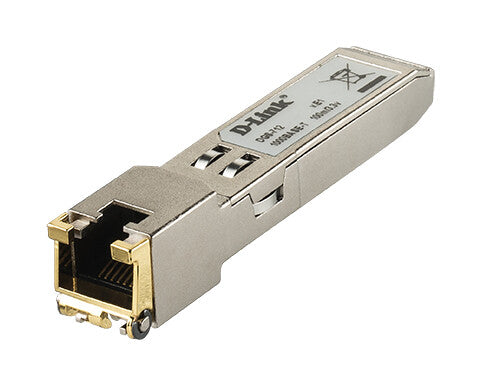

D-Link SFP 10/100/1000 BASE-T Copper Transceiver

D-Link SFP 10/100/1000 BASE-T Copper Transceiver

Regular price £49.81 GBP
Regular price Sale price £49.81 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:DGS-712

Low stock: 6 left

  • Compliant with IEEE 802.3ab Gigabit Standard
  • MSA, RoHs Compliant
  • Maximum distance of 100 m
  • RJ-45 connector type
1000Base-T Copper SFP Transceiver

Gigabit Ethernet connectivity for data centers, enterprise wiring closets, and service provider transport applications
The D-Link DGS-712 1000Base-T Copper SFP Transceiver Module is a hot-swappable SFP (Small Form-Factor Pluggable) transceiver that plugs into standard SFP slots on switches and supports Gigabit Ethernet. The DGS-712 offers a wide variety of Gigabit Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications. The DGS-712 is an external transceiver designed for insertion into SFP slots of network devices for transmission and reception of data signals from fiber ports. These transceivers provide Gigabit operation and physical compactness to deliver the speed, reliable data transfer, and deployment flexibility that today’s networks require.

Performance
SFP transceiver type Copper
Maximum data transfer rate 1000 Mbit/s
Interface type SFP
SFP transceiver standard T, TX
Maximum transfer distance 100 m
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Copper ethernet cabling technology 10BASE, 100BASE, 1000BASE
Features
Product colour Metallic
Mean time between failures (MTBF) 5617000 h
Safety CSA, TUV
Certification FCC Class ACE Class AVCCI Class A
Power
Maximum voltage 3.3 V
Operational conditions
Operating temperature (T-T) 0 - 85 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 0 - 80%
Storage relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 13.7 mm
Depth 70.2 mm
Height 13.4 mm
Weight 20 g
Packaging data
Package width 74 mm
Package depth 131 mm
Package height 49 mm
Package weight 64 g
Logistics data
Shipping (inner) case gross weight 4.2 kg
Pallet height (sea) 199 cm
Products per pallet (sea) 2700 pc(s)
Master (outer) cases per pallet (sea) 54 pc(s)
Pallet gross weight (sea) 246.8 kg
Pallet height (air) 199 cm
Pallet gross width 122 cm
Pallet gross length 102 cm
Products per pallet (air) 2700 pc(s)
Master (outer) cases per pallet (air) 54 pc(s)
Pallet gross weight (air) 246.8 kg
Products per shipping (inner) case 50 pc(s)
Shipping (inner) case net weight 3.2 kg
Shipping (inner) case height 31 cm
Shipping (inner) case width 26 cm
Shipping (inner) case length 36 cm
Harmonized System (HS) code 85176990
