D-Link

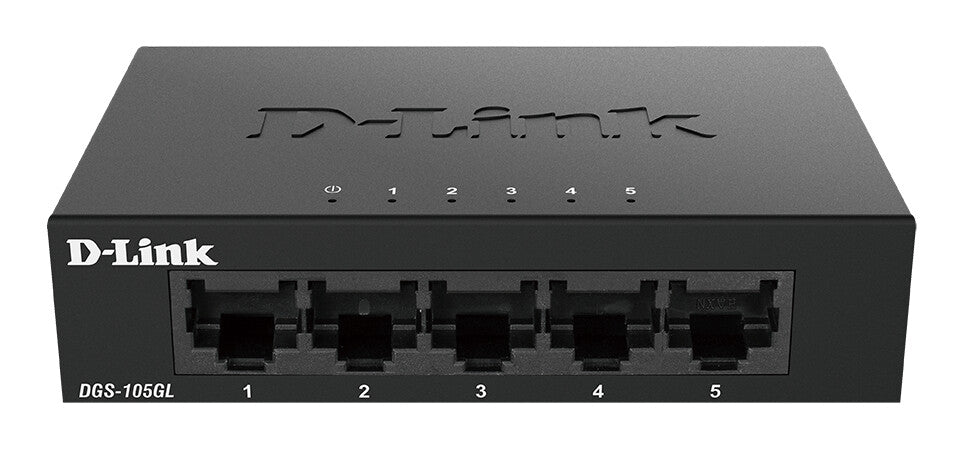

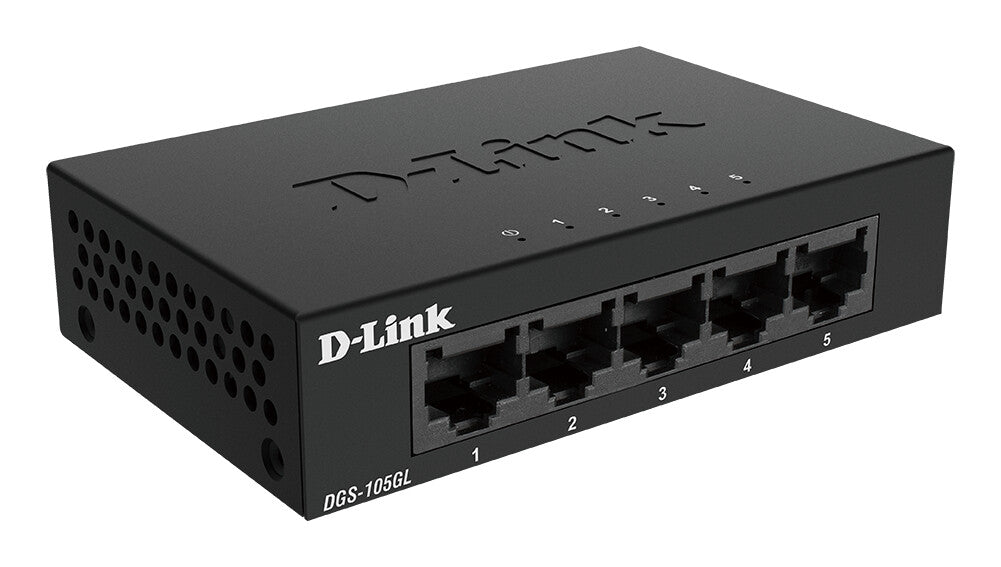

D-Link DGS-105GL 5-Port Gigabit Ethernet Switch, Fanless, Low Profile, Metal Housing, Plug-and-Play, 802.3az EEE black

D-Link DGS-105GL 5-Port Gigabit Ethernet Switch, Fanless, Low Profile, Metal Housing, Plug-and-Play, 802.3az EEE black

Regular price £18.24 GBP
Regular price Sale price £18.24 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:DGS-105GL/B

Low stock: 4 left

  • 5 Gigabit Ethernet ports
  • Metal casing
  • Energy efficient
  • Fanless
  • Plug & Play Installation
5 x 10/100/1000 Mbps LAN, 10 Gbps, 2K MAC, 100 x 64 x 24 mm

Effortless Gigabit networking.
Easily upgrade or extend your home or small business network with high-speed energy-saving Gigabit connectivity. It’s optimised for intensive 4K video streaming, surveillance, large file downloads and conferencing.

Plug-and-play. Easily extend a network.
The DGS-105GL is a plug-and-play device that requires no advanced technical configuration. You can easily connect multiple computers within minutes, and start sharing an internet connection, files, music, and video across your small office or home network.

Effortless traffic optimisation.
With Gigabit transfer speeds on each port, you can rapidly transfer files between connected computers and devices. The switch features 802.1p Quality of Service (QoS), which automatically organises and prioritises time-sensitive and critical data for efficient delivery, allowing for buffer-free video streaming as well as smooth video and voice calls.

Designed for life, built to last.
The DGS-108GL features a fanless design for silent operation, reduced energy consumption, and increased reliability by eliminating a common point of failure. Its sturdy compact metal housing ensures the product can withstand wider operating temperatures by helping to dissipate heat and reduce stress on internal components.

Energy Saving.
The compact, metal housing and fanless design mean the switches can be placed virtually anywhere and operate silently. The DGS-108GL is designed with energy efficiency in mind. The switches automatically reduce power to ports that are inactive or not connected, and support the IEEE 802.3az Energy-Efficient Ethernet standard.

Management features
Switch type Unmanaged
Quality of Service (QoS) support Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Network
Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Auto MDI/MDI-X Yes
Flow control support Yes
Data transmission
MAC address table 2000 entries
Switching capacity 10 Gbit/s
Forwarding rate 7.44 Mpps
Store-and-forward Yes
Number of queues 8
Jumbo frames support Yes
Jumbo frames 9216
Packet forwarding rate (10 Mbps) 14880 pps
Packet forwarding rate (100 Mbps) 148800 pps
Packet forwarding rate (1 Gbps) 1488000 pps
Design
Stackable Yes
Form factor Desktop
Product colour Black
Housing material Metal
LED indicators Activity, Link, Power
Certification CE; FCC; RoHS
Performance
Mean time between failures (MTBF) 1455562 h
Technical details
Compliance certificates CE, RoHS
Power
Power source DC
DC input voltage 5 V
Input current 1 A
Power consumption (max) 3.55 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -10 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 95%
Heat dissipation 12.11 BTU/h
Weight & dimensions
Width 100 mm
Depth 64 mm
Height 24 mm
Weight 160 g
Logistics data
Harmonized System (HS) code 85176990
