MAC address table: 8000 entries Switching capacity: 4.8 Gbit/s

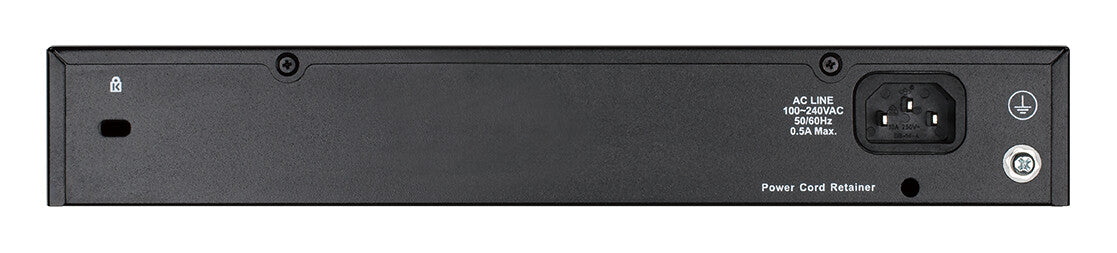

AC Power supply included
Unmanaged, Fast Ethernet, Duplex, 24x RJ-45, IEEE 802.3x, 2K MAC, Auto MDI/MDIX, RoHS, 1.14 kg

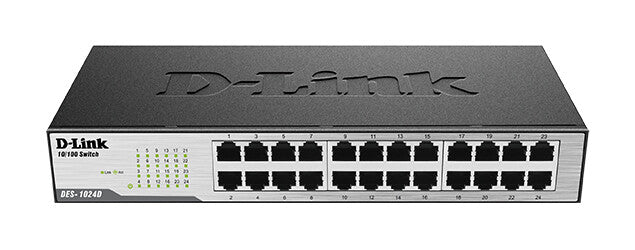

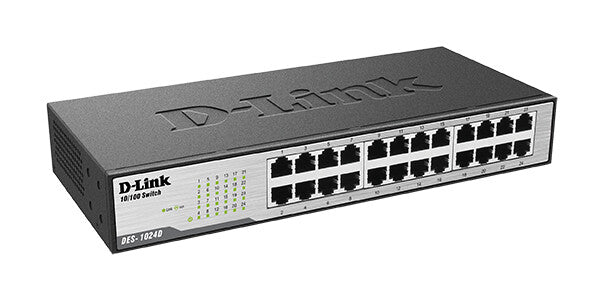

The DES-1024D 24-Port Fast Ethernet Unmanaged Desktop Switch is designed to enhance workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands.
With the D-Link 24-Port Fast Ethernet Unmanaged Switches, you can easily expand your business or home network by adding more computers and devices, each achieving speeds up to 200 Mbps per port in full-duplex mode. Quickly and securely connect employees working in small offices with one another and with all of the servers, printers, and other devices they use. High performance and reliable connectivity help speed file transfers and data processing, improve network uptime, and keep your employees connected and productive.
Expand and Upgrade Your Network
The DES-1024D switch offers an economical way for SOHO and small to medium businesses (SMB) to benefit from high-speed networking. It provides twenty-four ports for easy expansion of your network and a quick way to upgrade your network to Fast Ethernet connectivity. The switches speed file transfer times, improve slow and sluggish networks, keep your vital business applications available, and help your employees respond more quickly to customers and each other.
Conserve Energy
The DES-1024D switch helps you conserve energy through IEEE802.3az EEE, which works when both the switch and its link partner are EEE-compliant devices. This power-saving feature automatically puts the switch into a low-power idle state when the switch utilization is zero, allowing you to lower your energy usage and save on your energy costs.
Designed with the Environment in Mind
The DES-1024D switch uses recyclable packaging that helps reduce waste, complying with the WEEE directive. It’s innovatively designed to run cool and quiet without sacrificing performance.
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Network
Networking standards
IEEE 802.1D, IEEE 802.3, IEEE 802.3U, IEEE 802.3x
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX
Half duplex
Yes
Full duplex
Yes
Auto-sensing
Yes
Ethernet LAN data rates
10,100 Mbit/s
MAC address auto-learning supported
Yes
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Flow control support
Yes
Data transmission
MAC address table
8000 entries
Supported data transfer rates
100 Mbps
Switching capacity
4.8 Gbit/s
Store-and-forward
Yes
Packet forwarding rate (10 Mbps)
14.88 pps
Packet forwarding rate (100 Mbps)
148.8 pps
Protocols
Switching protocols
Ethernet
Data link protocols
Ethernet, Fast Ethernet
Supported network protocols
CSMA/CD
Design
Stackable
No
Product colour
Black
LED indicators
Activity, Link, Power
Performance
Internal memory
2 MB
Mean time between failures (MTBF)
810.88 h
Technical details
Compliance certificates
BSMI, CB, CCC, CE, Federal Communications Commission (FCC), ICES, Low Voltage Directive (LVD), RCM, VCCI, cUL
