D-Link

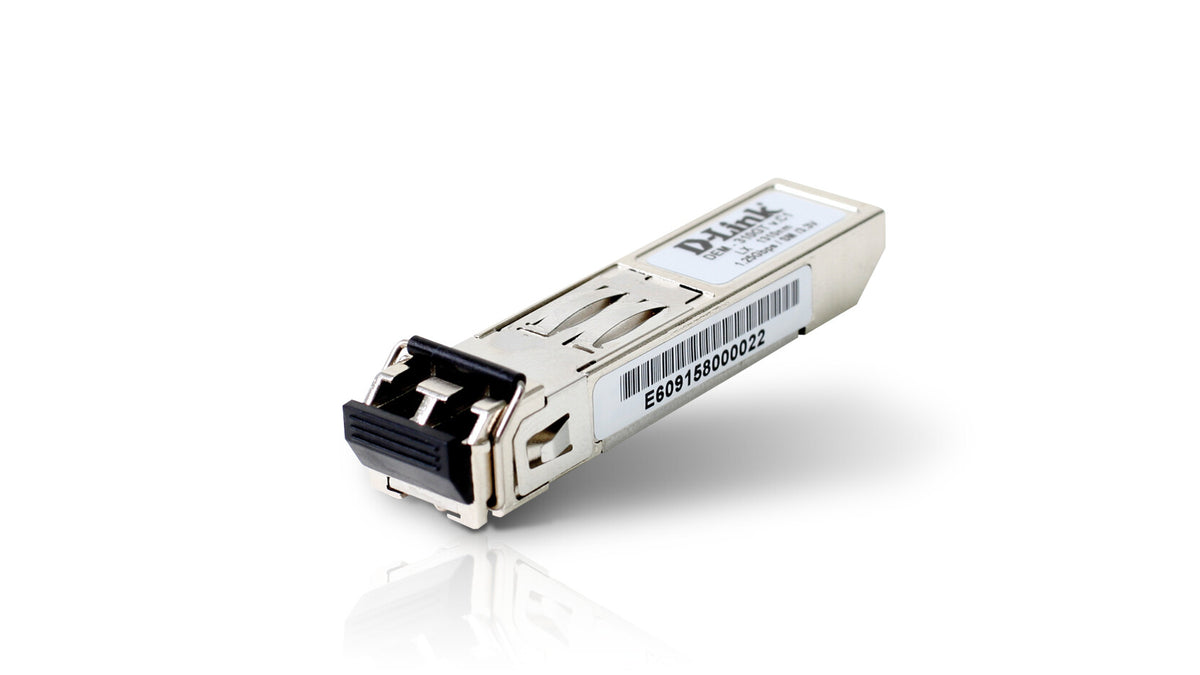

D-Link 1-port Mini-GBIC SFP to 1000BaseLX, 10km for all
D-Link 1-port Mini-GBIC SFP to 1000BaseLX, 10km for all
Regular price
£40.56 GBP
Regular price
Sale price
£40.56 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:DEM-310GT
32 in stock
- 1000Base-LX port (IEEE 802.3z standard)
- Duplex LC connector
- Full duplex operation
- 802.3x flow control support
- Fibre type: 9um single-mode fibre, up to 10 km
- Wavelenght: 1310 nm
- Power support: 3.3 V
- Power budget: 10.5 dB
- Hot pluggable
- Class 1 laser product (complies with EN60825-1)
- TTL signal detect indicator
- Metal enclosure for lower EMI
SFP, 1.25 Gbps, 10 km, Duplex LC connector
The DEM-310GT is a high performance 1310nm single mode SFP (mini-GBIC) transceiver. Supporting full duplex, Gigabit speeds on single mode fiber for distances of up to 10km on 9µm respectively. The unit features a metal housing to reduce EMI and to increase durability. The DEM-310GT is hot pluggable and is backed by a standard 2-year product warranty and free technical support.
| Performance | |
|---|---|
| Duplex system | Full |
| Cabling technology | 1000Base-LX |
| Networking standards | IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Wavelength | 1310 nm |
| Maximum transfer distance | 10000 m |
| SFP transceiver standard | LX |
| Fiber optic connector | LC |
| Multi-mode fiber (MMF) supported | No |
| Single-mode fiber (SMF) supported | Yes |
| Interface type | SFP |
| Maximum data transfer rate | 1250 Mbit/s |
| SFP transceiver type | Fiber optic |
| Features | |
|---|---|
| Certification | MSA, RoHS |
| Hot-swap | Yes |
| Hot-Plug support | Yes |
| Product colour | Metallic |
| Power | |
|---|---|
| Maximum voltage | 3.3 V |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Packaging data | |
|---|---|
| Package weight | 64 g |
| Package height | 49 mm |
| Package depth | 131 mm |
| Package width | 74 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85177900 |
| Shipping (inner) case length | 36 cm |
| Shipping (inner) case width | 26 cm |
| Shipping (inner) case height | 31 cm |
| Shipping (inner) case net weight | 3.2 kg |
| Products per shipping (inner) case | 50 pc(s) |
| Pallet gross weight (air) | 246.8 kg |
| Master (outer) cases per pallet (air) | 54 pc(s) |
| Products per pallet (air) | 2700 pc(s) |
| Pallet gross length | 102 cm |
| Pallet gross width | 122 cm |
| Pallet height (air) | 199 cm |
| Pallet gross weight (sea) | 246.8 kg |
| Master (outer) cases per pallet (sea) | 54 pc(s) |
| Products per pallet (sea) | 2700 pc(s) |
| Pallet height (sea) | 199 cm |
| Shipping (inner) case gross weight | 4.2 kg |
| Other features | |
|---|---|
| I/O ports | mini-GBIC |
| Dimensions (WxDxH) | 29.8 x 11.8 x 56.3 mm |
