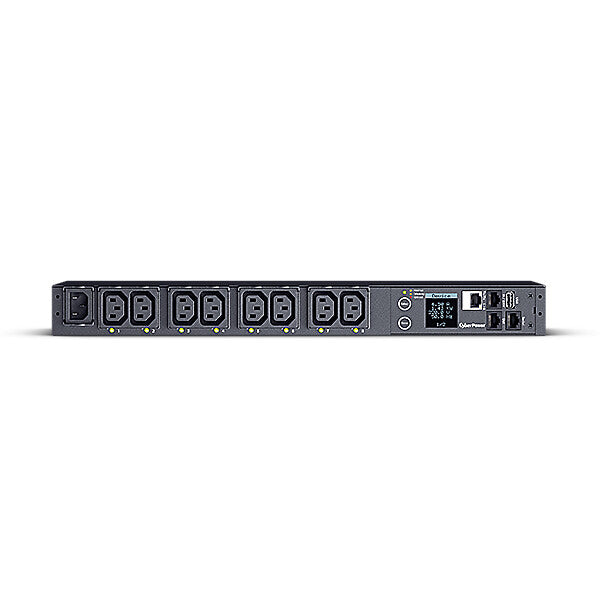

CyberPower PDU41004 power distribution unit (PDU) 8 AC outlet(s) 1U Black
CyberPower PDU41004 power distribution unit (PDU) 8 AC outlet(s) 1U Black
Couldn't load pickup availability
SKU:PDU41004
19 in stock
- Real-Time Local/Remote Monitoring and Switching
- User Configurable Color LCD
- Firmware Upgrade via USB
- Sequential Outlet ON/OFF Control
- Digital Real-time Load Display
CyberPower PDU41004 Switched series power distribution unit provides output from a UPS unit, generator, or utility power to multiple connected devices in datacenter environments. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location. Administrators can further determine the power sequence used to turn individual outlets on or off.
The power management web interface offers real-time remote monitoring of the PDU vitals of the outlets of networked clients. Event logging via a web browser or network connection allows users to review a history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.
The product is also certified to be interoperable and compatible with Cisco Compatible™ network environments, which helps to achieve the best energy performance possible in the datacenter scenario.
| Design | |
|---|---|
| Display | LCD |
| Product colour | Black |
| Housing material | Steel |
| Mounting | Horizontal |
| Rack capacity | 1U |
| Type | Single-phase |
| PDU types | Managed, Switched |
| Ports & interfaces | |
|---|---|
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| Serial ports quantity | 1 |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| Features | |
|---|---|
| Certification | FCC Class A, UL60950, UL62368, EN 55032 Class A |
| Security algorithms | 802.1x RADIUS, HTTPS, SSH, SSL/TLS |
| Cable length | 3.05 m |
| LED indicators | Link, Status |
| Daisy chain | Yes |
| Management features | |
|---|---|
| Firmware upgradeable via | USB |
| Firmware upgradeable | Yes |
| Supported network protocols | IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, Syslog |
| Power | |
|---|---|
| Nominal output voltage | 100 - 240 V |
| Maximum current | 12 A |
| AC input frequency | 50 / 60 Hz |
| Nominal input voltage | 100 - 240 V |
| Weight & dimensions | |
|---|---|
| Weight | 2.1 kg |
| Height | 44 mm |
| Depth | 112 mm |
| Width | 433 mm |
| Packaging data | |
|---|---|
| Package height | 65 mm |
| Package depth | 250 mm |
| Package width | 500 mm |
| Package weight | 3.9 kg |
| Packaging content | |
|---|---|
| Packaging content | PDU41004, User's Manual, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit, Power Cord, Serial Cable |
| Bundled software | PowerPanel Business, PowerPanel Enterprise |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3500 m |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating temperature (T-T) | 32 - 140 °F |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
