Corsair

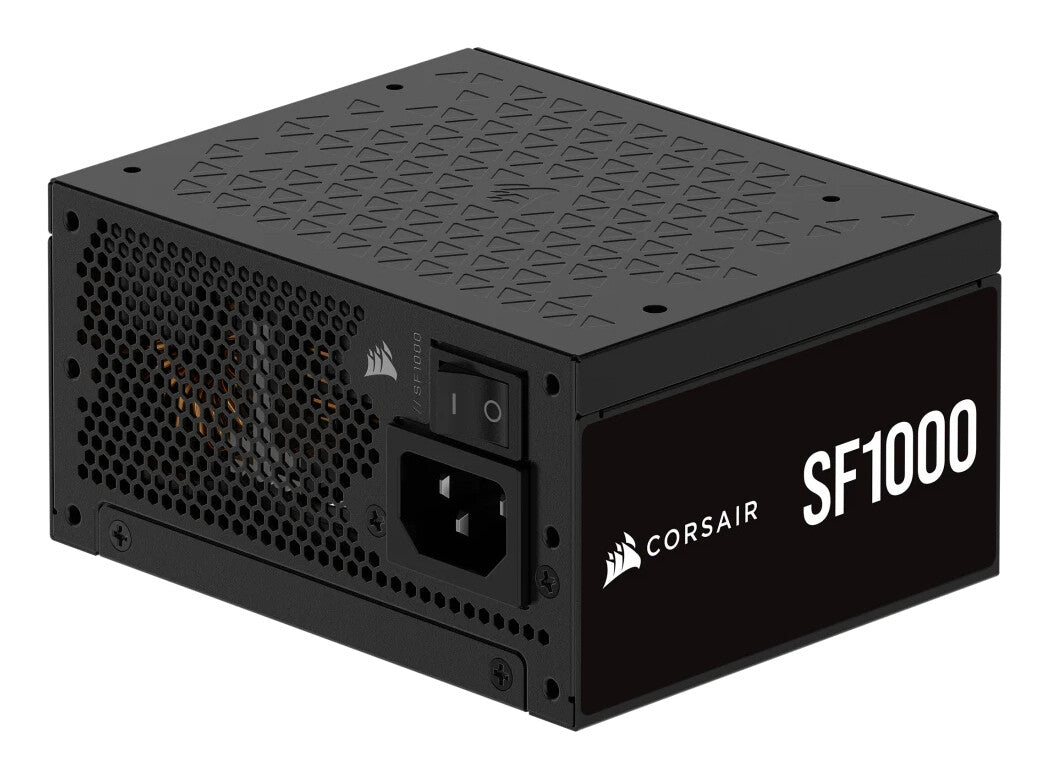

Corsair SF1000 power supply unit 1000 W 24-pin ATX ATX Black

Corsair SF1000 power supply unit 1000 W 24-pin ATX ATX Black

£222.32 GBP
£222.32 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

CP-9020257-UK

38 in stock

  • 80 PLUS Platinum rated efficiency
  • ATX 3.1 compliant, supporting PCIe 5.1
  • Fully modular, Type-5 Micro-Fit PSU connectors
  • 92mm PWM cooling fan with Zero RPM mode
SF Series SF1000 Fully Modular 80 PLUS Platinum SFX Power Supply (UK)

Outfit your next SFF PC with a CORSAIR SF Series 80 PLUS Platinum SFX Power Supply for compact, ATX 3.1 compliant, fully modular Platinum power.

Power
Total power 1000 W
AC input voltage 100 - 240 V
AC input frequency 47 - 63 Hz
Input current 6 - 12 A
Combined power (+3.3V) 130 W
Combined power (+12V) 1000 W
Combined power (+5V) 130 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 20 A
Max output current (+12V) 83.3 A
Max output current (+5V) 20 A
Max output current (+5Vsb) 3 A
Power protection features Overheating, Over current, Over power, Over voltage, Short circuit
Ports & interfaces
Motherboard power connector 24-pin ATX
Number of PATA power connectors 1
Number of SATA power connectors 3
EPS power connector (4+4 pin) Yes
PCI Express power connectors (6+2 pin) 4
ATX power connector (12+4 pin) Yes
PCI Express connector Yes
Cabling type Fully-Modular
Performance
Purpose PC
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Platinum
ATX version 3.1
Silent mode Yes
Bearing technology FDB
Mean time between failures (MTBF) 100000 h
Design
Product colour Black
Cooling type Active
Fan diameter 9.2 cm
Number of fans 1 fan(s)
Fan location Top
Illumination No
On/off switch Yes
Packaging content
Cables included AC
Weight & dimensions
Width 125 mm
Depth 100 mm
Height 63.5 mm
Weight 2.3 kg
View full details
