1100W, ATX 12V Ver. 3.1, 200-240V, 6.1A, 50-60Hz, 80 PLUS Platinum, UK
Precise Silent Power Engineered with a fanless design and industrial IC components, X Silent Edge Platinum features out Heat Pipe.
Dissipation Patent, ensuring quietness for even the most noise-sensitive environments.
Innovative Design
NO FAN, NO DUST Equipped with a heat pipe and an innovative modular thermal structure, our design enhances thermal efficiency, essential for the low-temperature rise of key components and the ultra-quiet fanless operation.

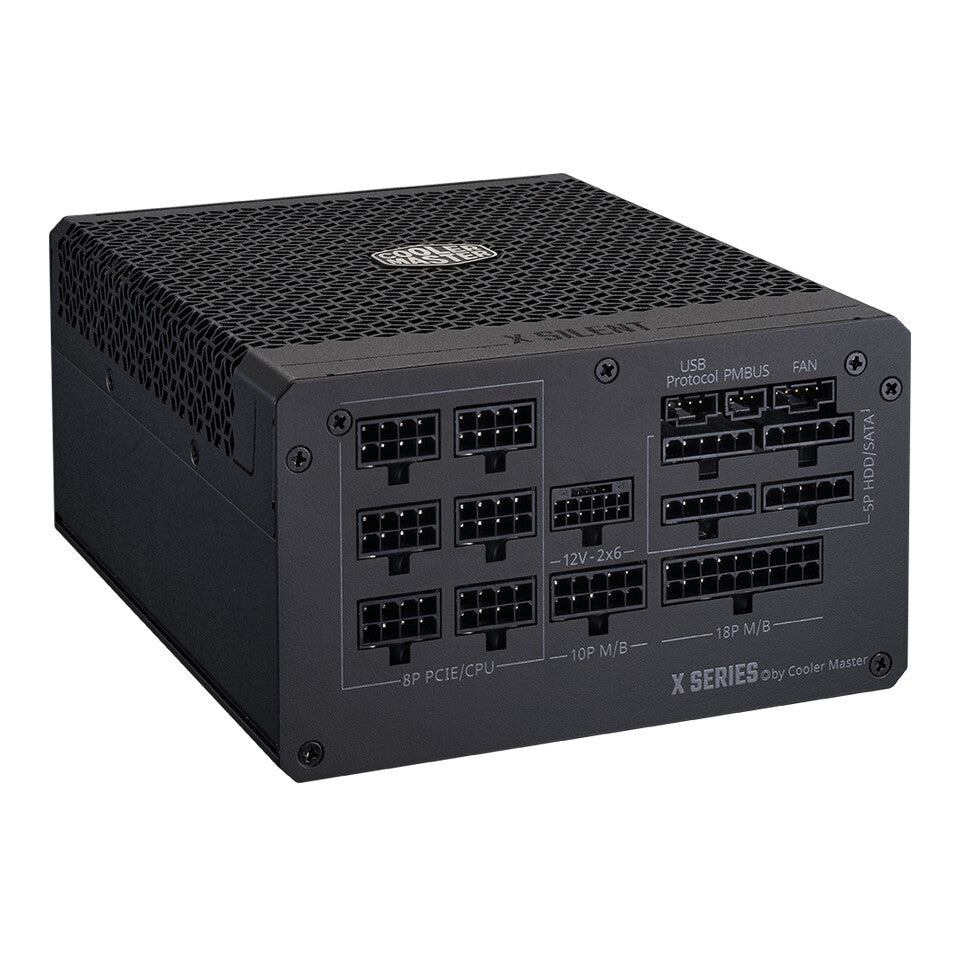

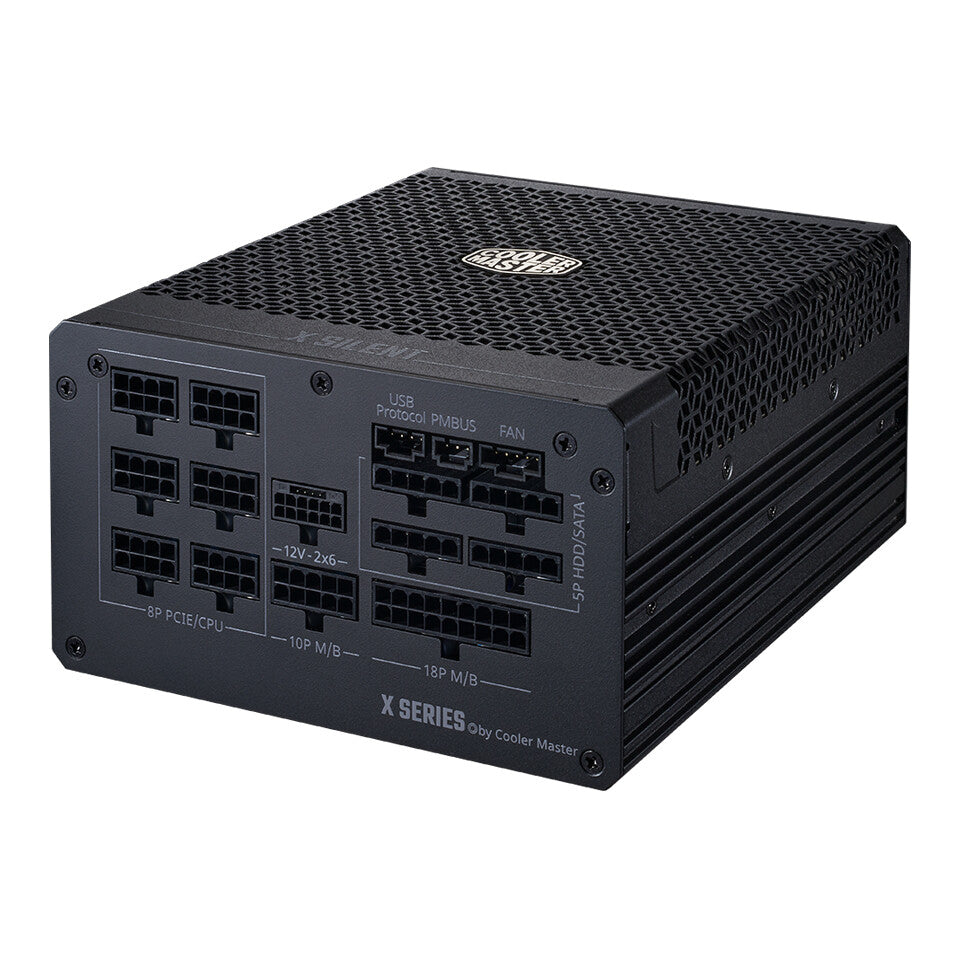

Ports & Slots
Fully Modular Cabling & Extra Functions Modular cabling minimizes clutter, while the additional ports provide extra functionality.
Cooling System
HEAT DISSIPATION Our Private Aluminum Thermal Mold effectively dissipates heat, and the Innovative Heat Pipe Thermal Tech uniformly regulates unit temperature. This ensures superior thermal control, enhancing efficiency and longevity in demanding environments.
Power Efficiency
Active Bridge Rectifier Boosts Efficiency 2% The Active Bridge Rectifier, equipped with the Infineon CoolMOS, marks a significant advancement in power efficiency. This innovative combination not only conserves electricity, but also significantly reduces power loss, outperforming traditional bridge diodes. It's an ideal solution for users seeking eco-friendly, high-efficiency power supply units.
ATX 3.1 Support & a Durable 90° Cable Includes ATX 3.1 support and a 90° 12V-2×6 connector featuring more reliability, higher electrical durability, improved safety, and capable of bringing up to 600W to your GPU.
Power
Total power
1100 W
AC input voltage
200 - 240 V
AC input frequency
50/60 Hz
Input current
6.1 A
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
120 W
Combined power (+12V)
1099.2 W
Combined power (+5V)
120 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Max output current (+12V)
91.6 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Power Good signal delay range
100 - 150 ms
Hold time
16 ms
Efficiency
94%
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Ports & interfaces
Motherboard power connector
24-pin ATX
Motherboard power cable length
65 cm
Number of SATA power connectors
12
SATA power cable length
500,650,800,950 mm
Peripheral (Molex) power connectors (4-pin)
4
Peripheral (Molex) power cable length
740,620,500,860 mm
EPS power connector (8-pin)
Yes
EPS power connector (4+4 pin)
Yes
PCI Express power connectors (6+2 pin)
4
PCI Express power connectors (12+4 pin) cable length
