Cisco
Cisco Small Business 2960-X Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Cisco Small Business 2960-X Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
SKU:WS-C2960X-24PS-L-RFB
Regular price
£93.84 GBP£78.20 GBP
Regular price
£0.00 GBP
Sale price
£93.84 GBP£78.20 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Managed L2/L3 Web-based management SNMPv3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45
- MAC address table: 16000 entries Switching capacity: 216 Gbit/s
- 3 Access Control List (ACL)
- 1U Rack mounting Stackable
- Power supply included Power over Ethernet (PoE)

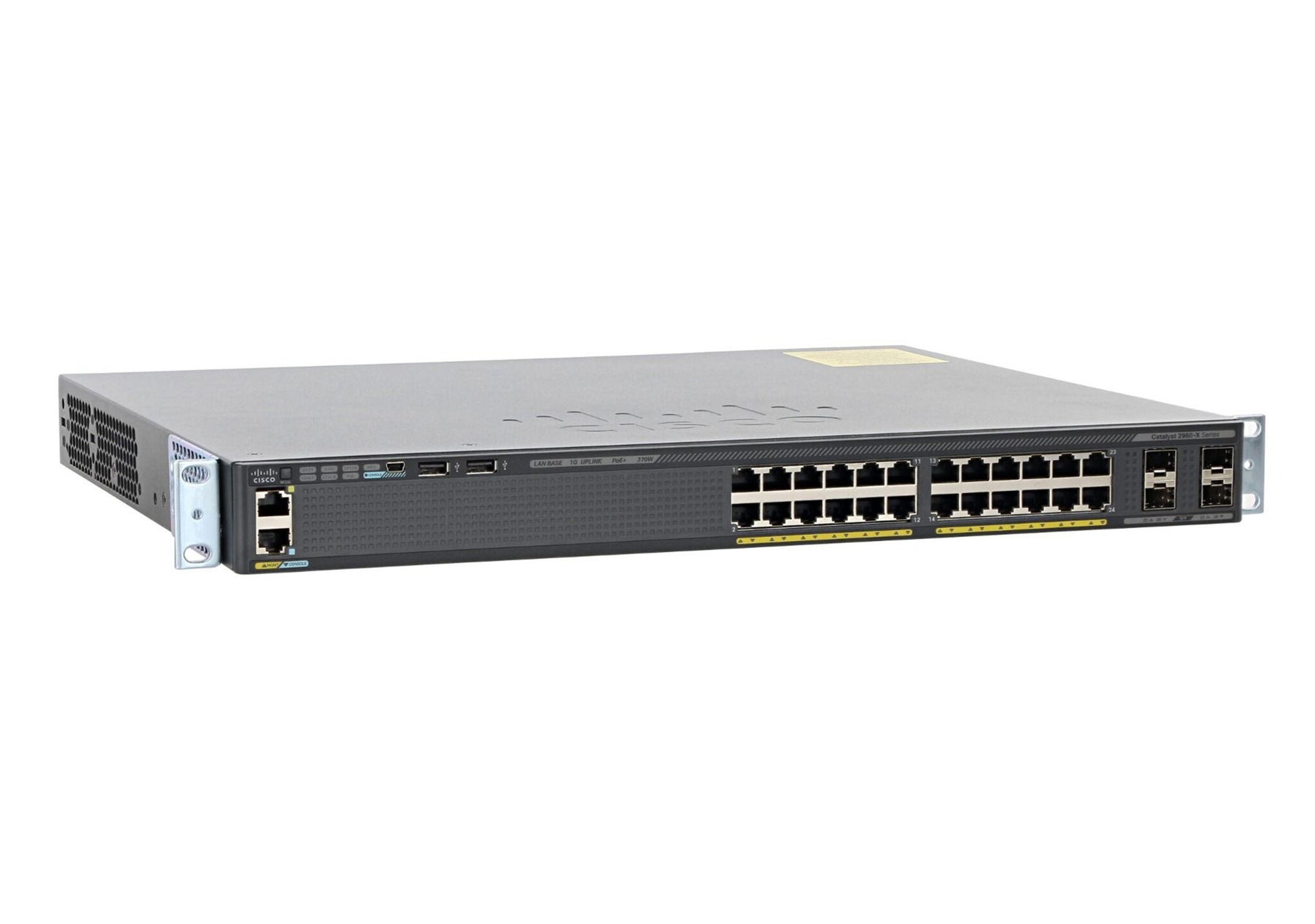

Catalyst 2960X-24PS-L Network Switch, 24 Gigabit Ethernet Ports, 370W PoE Budget, four 1 G SFP Uplink Ports, Enhanced Limited Lifetime Warranty (WS-C2960X-24PS-L)
The Cisco Catalyst 2960X-24PS-L Network Switch is a fixed-configuration, stackable Gigabit Ethernet switch that provides enterprise-class access for campus and branch applications. This Ethernet switch operates on Cisco IOS Software and supports simple device and network management. It offers advanced Layer 2 and Layer 3 features as well as optional PoE+ power. The switches deliver enhanced application visibility, network reliability and network resiliency.
| Management features | |
|---|---|
| MIB support | Y |
| ARP inspection | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 2 |
| Console port | RJ-45 |
| SFP module slots quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Number of VLANs | 1023 |
| Virtual LAN features | Private VLAN |
| VLAN support | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Auto-negotiation | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| Number of static routes | 1000 |
| Number of queues | 8 |
| Throughput | 71.4 Mpps |
| Switching capacity | 216 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| SSH/SSL support | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Security algorithms | 802.1x RADIUS, SNMP, SSH |
| IGMP snooping | Yes |
| Access Control List (ACL) rules | 3 |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast features | |
|---|---|
| Number of multicast groups filtered | 1000 |
| Multicast support | Yes |
| Protocols | |
|---|---|
| Switching protocols | UDP, TCP, RADIUS/TACACS+ |
| Management protocols | SNMPv3 |
| Design | |
|---|---|
| Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1 |
| Country of origin | China |
| Market segment | Business |
| LED indicators | Yes |
| Product colour | Black |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| general_information_attribute_container_name | |
|---|---|
| attribute_product_family_name | Small Business |
| Product series | Catalyst 2960 |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 324280 h |
| Noise level | 39 dB |
| Flash memory | 128 MB |
| Internal memory | 512 MB |
| Memory type | DRAM |
| Processor frequency | 600 MHz |
| Processor model | AppliedMicro APM8639 |
| Built-in processor | Yes |
| Physical stacking (units) | 8 |
| Technical details | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Power | |
|---|---|
| Power plug type | Type C |
| Power consumption (typical) | 49 W |
| Input current | 5 A |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | Yes |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet plus (PoE+) ports quantity | 12 |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 4000 m |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | -5 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 5.8 kg |
| Height | 45 mm |
| Depth | 368 mm |
| Width | 445 mm |
| Packaging data | |
|---|---|
| Package weight | 7.07 kg |
| Package height | 147.6 mm |
| Package depth | 549.4 mm |
| Package width | 469.9 mm |
| User guide | Yes |
| Cables included | AC |
| Logistics data | |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Quantity per pack | 1 pc(s) |
| Other features | |
|---|---|
| Power LED | Yes |
