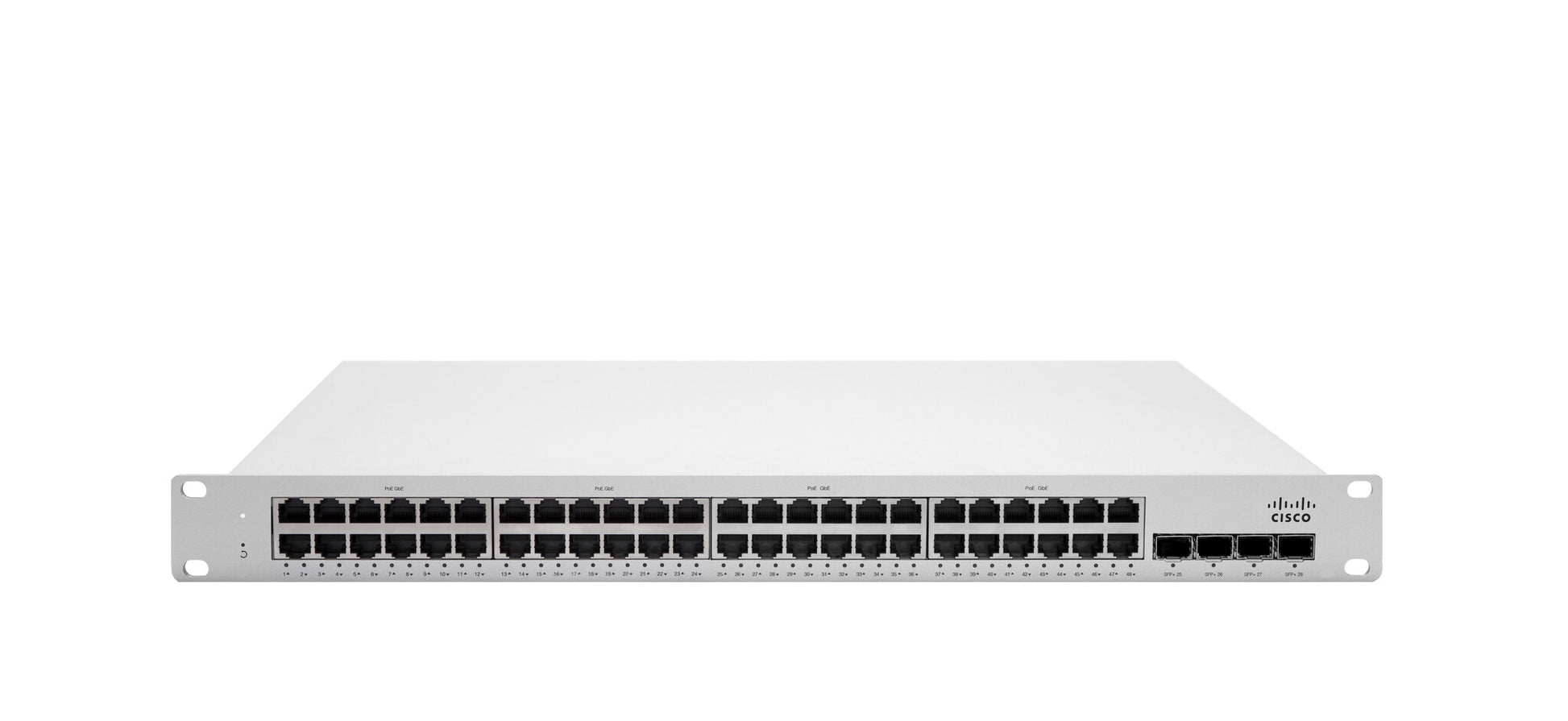

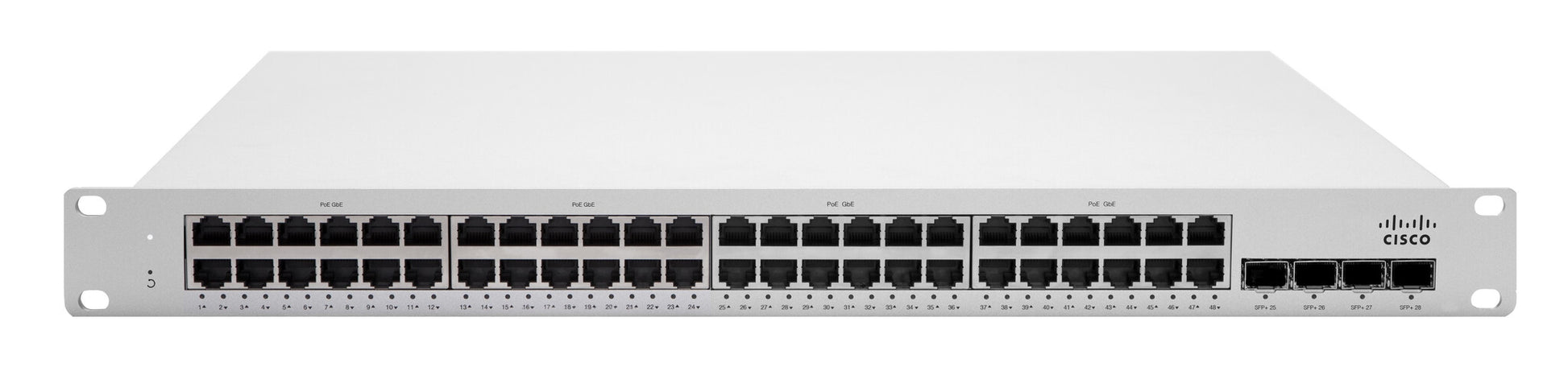

Cisco Meraki MS225-48LP L2 Stck Cld-Mngd 48x GigE 370W PoE Switch

Cisco Meraki MS225-48LP L2 Stck Cld-Mngd 48x GigE 370W PoE Switch

£3,457.98 GBP
£3,457.98 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

MS225-48LP-HW

Low stock: 2 left

  • Managed L2 Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 48
  • MAC address table: 32000 entries Switching capacity: 176 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting Stackable
  • Power over Ethernet (PoE)
Meraki Switches provide performance, true zero-touch cloud provisioning, network visibility, and remote troubleshooting to deployments of any size

Meraki cloud-managed switches feature ease of multi-site management through a dashboard used to manage the entire Meraki portfolio. Meraki switches feature excellent tools for reducing TCO: zero-touch configuration and remote troubleshooting.

- General purpose switch for branch deployments
- Physical and virtual stacking
- Redundant power

Management features
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Yes
Web-based management Yes
System event log Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity 4
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w
Port mirroring Yes
Spanning tree protocol Yes
Broadcast storm control Yes
Auto MDI/MDI-X Yes
VLAN support Yes
Number of VLANs 4095
Data transmission
MAC address table 32000 entries
Switching capacity 176 Gbit/s
Number of queues 8
Security
DHCP features DHCP server, DHCP client
Access Control List (ACL) Yes
IGMP snooping Yes
Multicast features
Multicast support Yes
Design
Rack mounting Yes
Stackable Yes
Form factor 1U
Product colour Grey
general_information_attribute_container_name
attribute_product_family_name Meraki
Performance
Mean time between failures (MTBF) 381015 h
Power
AC input voltage 100 - 240 V
AC input frequency 47/63 Hz
Power consumption (typical) 53 W
Power consumption (max) 490 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 484.6 mm
Depth 340 mm
Height 43.8 mm
Weight 4.37 kg
Logistics data
Harmonized System (HS) code 85176990
