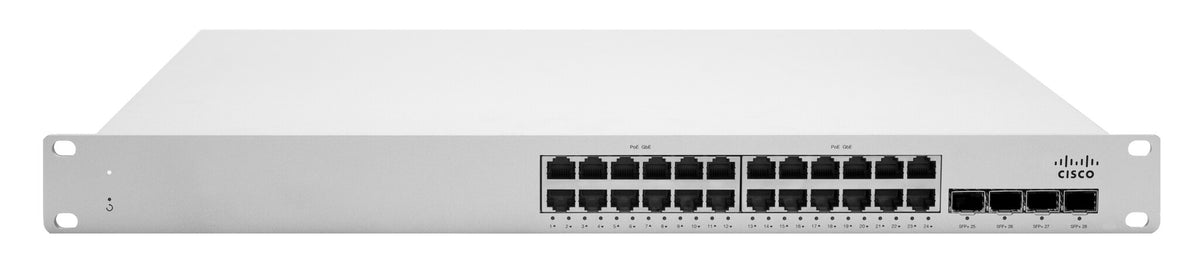

Cisco Meraki MS225-24P L2 Stck Cld-Mngd 24x GigE 370W PoE Switch

Cisco Meraki MS225-24P L2 Stck Cld-Mngd 24x GigE 370W PoE Switch

£2,973.02 GBP
£2,973.02 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

MS225-24P-HW

Low stock: 3 left

  • Managed L2 Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • MAC address table: 16000 entries Switching capacity: 128 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting Stackable
  • Power over Ethernet (PoE)
Meraki Switches provide performance, true zero-touch cloud provisioning, network visibility, and remote troubleshooting to deployments of any size

Meraki cloud-managed switches feature ease of multi-site management through a dashboard used to manage the entire Meraki portfolio. Meraki switches feature excellent tools for reducing TCO: zero-touch configuration and remote troubleshooting.

- General purpose switch for branch deployments
- Physical and virtual stacking
- Redundant power

Management features
System event log Yes
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L2
Switch type Managed
Ports & interfaces
SFP+ module slots quantity 4
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 24
Network
Number of VLANs 4095
VLAN support Yes
Auto MDI/MDI-X Yes
Broadcast storm control Yes
Spanning tree protocol Yes
Port mirroring Yes
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w
Data transmission
Number of queues 8
Switching capacity 128 Gbit/s
MAC address table 16000 entries
Security
IGMP snooping Yes
Access Control List (ACL) Yes
DHCP features DHCP server, DHCP client
Multicast features
Multicast support Yes
Design
Product colour Grey
Form factor 1U
Stackable Yes
Rack mounting Yes
general_information_attribute_container_name
attribute_product_family_name Meraki
Performance
Mean time between failures (MTBF) 391648 h
Power
Power consumption (max) 448 W
Power consumption (typical) 21 W
AC input frequency 47/63 Hz
AC input voltage 100 - 240 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 3.71 kg
Height 43.8 mm
Depth 250 mm
Width 484.6 mm
Logistics data
Harmonized System (HS) code 85176990
