Cisco
Regular price
£1,034.18 GBP
Regular price
Sale price
£1,034.18 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:MS130-8X
Low stock: 1 left
- Managed Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8 Console port: RJ-45
- Switching capacity: 62 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- DC Power over Ethernet (PoE)

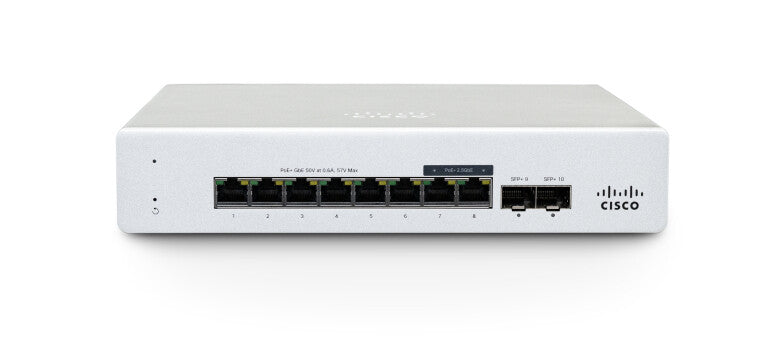

Meraki MS130 8X Cloud Mgd 6GE + 2x(25GE) 120W PoE Switch
Cost-effective switches perfect for retail point-of-sale (PoS) setup and low-density branch Wi-Fi and IoT deployments.
| Management features |
|---|
| Switch type |
Managed |
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| System event log |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| Fiber ports quantity |
2 |
| Fiber optic connector |
SFP+ |
| Console port |
RJ-45 |
| Network |
|---|
| Networking standards |
IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad |
| 10G support |
No |
| Port mirroring |
Yes |
| Spanning tree protocol |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| VLAN support |
Yes |
| Data transmission |
|---|
| Switching capacity |
62 Gbit/s |
| Static route |
Yes |
| Jumbo frames support |
Yes |
| Security |
|---|
| DHCP features |
DHCP snooping, DHCP relay, DHCP client |
| Access Control List (ACL) |
Yes |
| IGMP snooping |
Yes |
| Password protection |
Yes |
| BPDU filtering/protection |
Yes |
| Authentication |
MAC-based authentication |
| Authentication type |
RADIUS |
| Security algorithms |
SNMP |
| Multicast features |
|---|
| Multicast support |
Yes |
| Protocols |
|---|
| Switching protocols |
LLDP, CDP, RSTP, STP |
| Design |
|---|
| Rack mounting |
Yes |
| Stackable |
Yes |
| Form factor |
1U |
| Product colour |
Aluminium |
| Certification |
CSA-US, FCC, IC, CE, RCM, RoHS |
| general_information_attribute_container_name |
|---|
| attribute_product_family_name |
Meraki |
| Performance |
|---|
| Physical stacking (units) |
8 |
| Firmware upgradeable |
Yes |
| Power |
|---|
| Power source |
DC |
| DC input voltage |
54 V |
| Power consumption (typical) |
16 W |
| Power consumption (max) |
136 W |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Width |
230 mm |
| Depth |
230 mm |
| Height |
44 mm |
| Weight |
960 g |
| Packaging data |
|---|
| Screws included |
Yes |
