Cisco

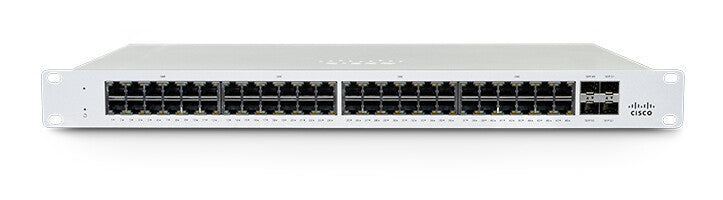

Cisco Meraki MS130-48 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White

Cisco Meraki MS130-48 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White

£5,247.86 GBP
£5,247.86 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

MS130-48X-HW

Low stock: 7 left

  • Managed via Cisco Meraki Dashboard
  • Remote Packet Capture Tools via Meraki Dashboard
  • Automatic Firmware upgrades
  • SNMP/Syslog Integration
  • IPv4/6 ACL support
  • 802.1Q VLAN tagging
  • DHCP Snooping
  • 802.1X Authentication
  • 10/100/1000 Mbps RJ45
  • 100M/1G/2.5G mGbE RJ45
  • 4x 10 Gbe SFP+ models available
  • 802.3bt PoE up to 30W per port
L2, 40 - 10/100/1000 Mbps, RJ45, 802.3bt, PoE up to 30W per port, 4x 10 Gbe SFP+, DHCP Snooping, 802.1X Authentication, IPv4/6 ACL, SNMP/Syslog, 100 - 240 V, 12-6A, 50 - 60 Hz, 4.4 x 44 x 34cm, 5.71 kg

Powerful full-size switch with optional PoE+ and mGig
High-performance switch optimized for medium to large campuses with Wi-Fi and IoT deployments.

Cisco Meraki MS130 switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS130 series features a variety of options designed to meet the diverse needs of branch and campus deployments.

With 10 different models, capable of providing up to 740W of power over a variety of port densities, including SFP+ capable uplinks, the MS130 line is fully ready to support future wireless infrastructure deployments across a variety of different environments.

Management features
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Yes
Cloud-managed Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 40
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
2.5G Ethernet (copper) ports quantity 8
SFP+ module slots quantity 4
Number of management ports 1 pc(s)
Network
Networking standards IEEE 802.1x, IEEE 802.3bt
10G support No
Port mirroring Yes
Spanning tree protocol Yes
Link aggregation Yes
Virtual LAN features Voice VLAN
Data transmission
Switching capacity 200 Gbit/s
Security
DHCP features DHCP snooping
IGMP snooping Yes
Authentication MAC-based authentication
Authentication type RADIUS
Security algorithms SNMP
Multicast features
Multicast support Yes
Multicast features Multicast traffic suppression
Protocols
IPv4 & IPv6 features IPv4/IPv6 access-control list (ACL)
Design
Rack mounting Yes
Form factor 1U
Product colour White
LED indicators Yes
general_information_attribute_container_name
attribute_product_family_name Meraki
Performance
Firmware upgradeable Yes
Mean time between failures (MTBF) 309196 h
Power
Power source AC
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Input current 12 A
Power consumption (max) 808 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 740 W
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 440 mm
Depth 340 mm
Height 44 mm
Weight 5.71 kg
