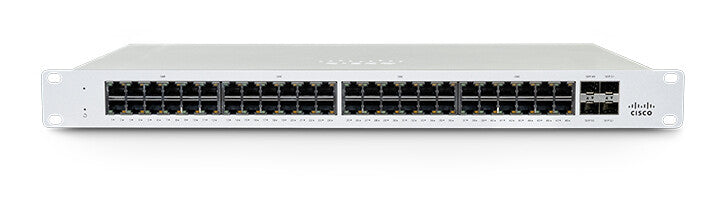

Cisco Meraki MS130-48 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White

Cisco Meraki MS130-48 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White

£2,111.95 GBP
£2,111.95 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

MS130-48-HW

Low stock: 3 left

  • Managed via Cisco Meraki Dashboard
  • Remote Packet Capture Tools via Meraki Dashboard
  • Automatic Firmware upgrades
  • SNMP/Syslog Integration
  • IPv4/6 ACL support
  • 802.1Q VLAN tagging
  • DHCP Snooping
  • 802.1X Authentication
  • 10/100/1000 Mbps RJ45
L2, 48 - 10/100/1000 Mbps, RJ45, DHCP Snooping, 802.1X Authentication, IPv4/6 ACL, SNMP/Syslog, 100 - 240 V, 12-6A, 50 - 60 Hz, 4.4 x 44 x 25cm, 3.69 kg

Powerful full-size switch with optional PoE+ and mGig
High-performance switch optimized for medium to large campuses with Wi-Fi and IoT deployments.

Cisco Meraki MS130 switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS130 series features a variety of options designed to meet the diverse needs of branch and campus deployments.

With 10 different models, capable of providing up to 740W of power over a variety of port densities, including SFP+ capable uplinks, the MS130 line is fully ready to support future wireless infrastructure deployments across a variety of different environments.

Management features
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Yes
Cloud-managed Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP module slots quantity 4
Number of management ports 1 pc(s)
Network
Networking standards IEEE 802.1x
10G support No
Port mirroring Yes
Spanning tree protocol Yes
Link aggregation Yes
Virtual LAN features Voice VLAN
Data transmission
Switching capacity 104 Gbit/s
Security
DHCP features DHCP snooping
IGMP snooping Yes
Authentication MAC-based authentication
Authentication type RADIUS
Security algorithms SNMP
Multicast features
Multicast support Yes
Multicast features Multicast traffic suppression
Protocols
IPv4 & IPv6 features IPv4/IPv6 access-control list (ACL)
Design
Rack mounting Yes
Form factor 1U
Product colour White
LED indicators Yes
general_information_attribute_container_name
attribute_product_family_name Meraki
Performance
Firmware upgradeable Yes
Mean time between failures (MTBF) 309196 h
Power
Power source AC
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Input current 12 A
Power consumption (max) 28 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 440 mm
Depth 250 mm
Height 44 mm
Weight 3.69 kg
