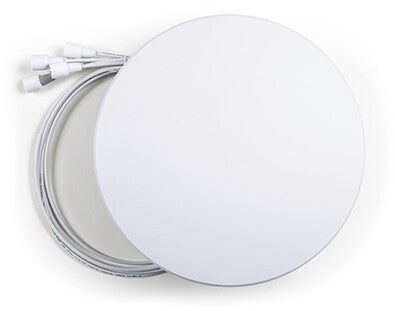

Cisco Meraki MA-ANT-3-D6 network antenna Omni-directional antenna RP-TNC 3.7 dBi

Cisco Meraki MA-ANT-3-D6 network antenna Omni-directional antenna RP-TNC 3.7 dBi

£454.97 GBP
£454.97 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

MA-ANT-3-D6

Low stock: 4 left

  • Omni-directional antenna RP-TNC White
  • 3.7 dBi
  • 2.4/5 GHz
Omni, 2.4/5GHz, 2.9/3.7dBi, RP-TNC

The Downtilt Panel Omnidirectional antenna is ideal for medium ceiling (8 ft - 25 ft) aesthetic consensus installations. Some example uses are medium-density deployments like cube office space and vestibules. This antenna supports Meraki’s smart antenna capabilities. The price shown is for a 5-connector model; the Downtilt Panel Omni antenna can be purchased with 5 or 6 connectors.

Performance
Vertical beam width (5 GHz) 60°
Horizontal beam width (5 GHz) 360°
Vertical beam width (2.4 GHz) 60°
Horizontal beam width (2.4 GHz) 360°
Vertical beam width 60°
Frequency band 2.4/5 GHz
Antenna gain level (max) 3.7 dBi
Features
Product colour White
Antenna connector type RP-TNC
Antenna type Omni-directional antenna
general_information_attribute_container_name
attribute_product_family_name Meraki
Operational conditions
Operating relative humidity (H-H) 5 - 93%
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 590 g
Diameter 22.5 cm
Height 37 mm
Logistics data
Harmonized System (HS) code 85177100
