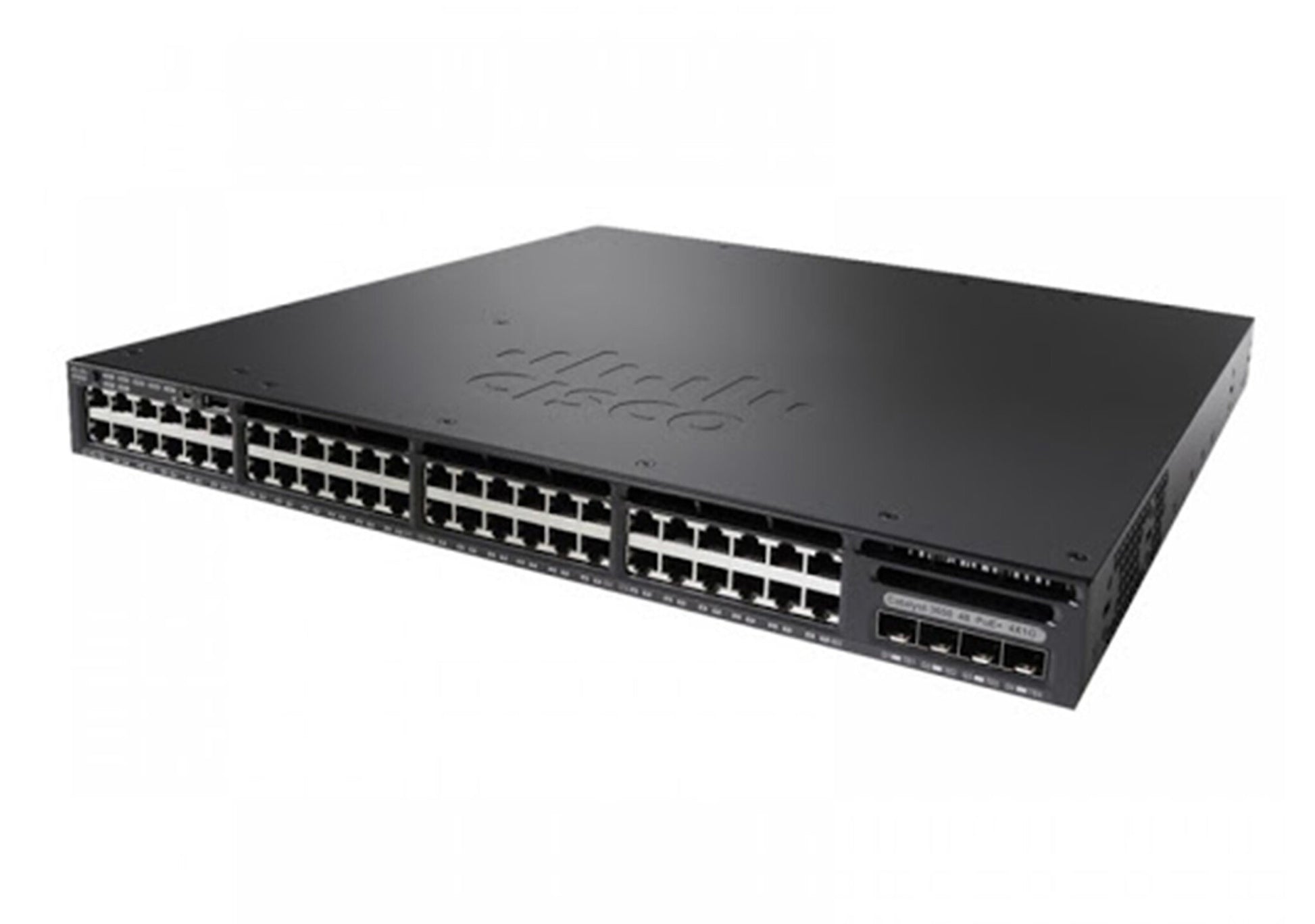

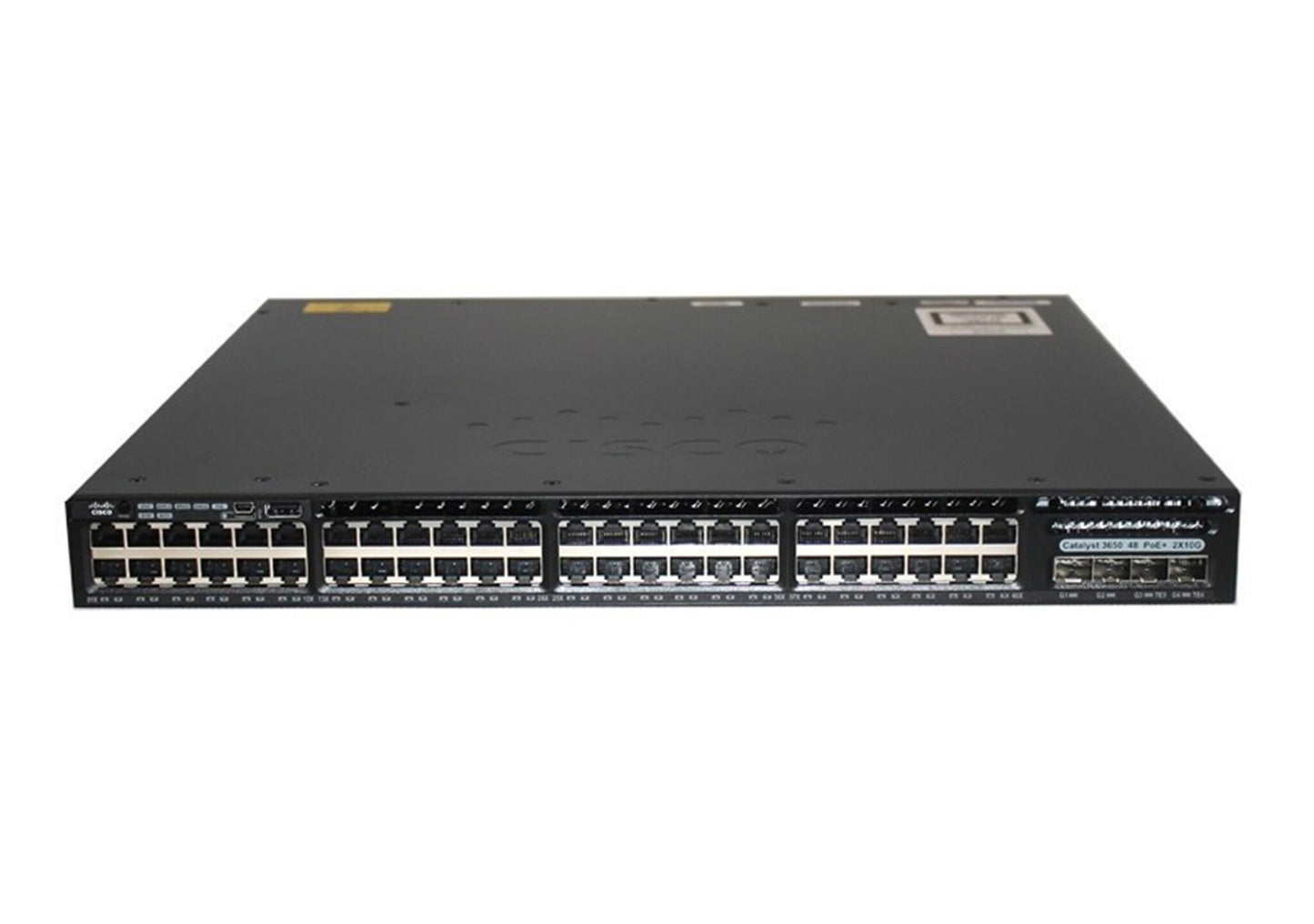

Cisco Catalyst WS-C3650-48FS-L Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Cisco Catalyst WS-C3650-48FS-L Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

£73.14 GBP
£73.14 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

WS-C3650-48FS-L-RFB

Low stock: 1 left

  • Managed L3 Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 48
  • MAC address table: 32000 entries Switching capacity: 176 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting Stackable
  • Power over Ethernet (PoE)
Catalyst 3650-48FS-L Network Switch, 48 Gigabit Ethernet (GbE) PoE+ Ports, four 1 G Uplinks, 640WAC Power Supply, 1 RU, LAN Base Feature Set, Enhanced Limited Lifetime Warranty (WS-C3650-48FS-L)

The Cisco Catalyst 3650-48FS-L Network Switch is a next-generation, enterprise-class access-layer switch that provides the foundation for full convergence between wired and wireless on a single platform. Standalone or stackable, this switch is built on the advanced Cisco StackWise-160 and takes advantage of the new Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC).

Management features
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L3
Switch type Managed
Ports & interfaces
SFP module slots quantity 4
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 48
Network
Number of VLANs 4094
VLAN support Yes
Rate limiting Yes
Auto MDI/MDI-X Yes
Link aggregation Yes
Spanning tree protocol Yes
IP routing Yes
Full duplex Yes
10G support No
Networking standards IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Data transmission
Jumbo frames support Yes
Switching capacity 176 Gbit/s
MAC address table 32000 entries
Security
SSH/SSL support Yes
IGMP snooping Yes
Access Control List (ACL) Yes
DHCP features DHCP server
Multicast features
Multicast support Yes
Design
Safety UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM
Country of origin China
Market segment Business
LED indicators Yes
Product colour Black
Form factor 1U
Stackable Yes
Rack mounting Yes
Performance
Mean time between failures (MTBF) 383760 h
Noise level 48 dB
Flash memory 2000 MB
Internal memory 4096 MB
Memory type DRAM
general_information_attribute_container_name
attribute_product_family_name Catalyst
Technical details
Products per shipping (inner) case 1 pc(s)
Power
Power plug type Type C
Power consumption (typical) 106.98 W
AC input voltage 100 - 240 V
Number of power supply units 1
Redundant power supply (RPS) support Yes
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 775 W
Power over Ethernet plus (PoE+) ports quantity 48
Power over Ethernet (PoE) Yes
Operational conditions
Non-operating altitude 0 - 5000 m
Operating altitude 0 - 1500 m
Operating relative humidity (H-H) 5 - 96%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -5 - 50 °C
Weight & dimensions
Weight 7.8 kg
Height 44 mm
Depth 486 mm
Width 445 mm
Packaging data
Package weight 2.2 kg
Package height 203.2 mm
Package depth 546.1 mm
Package width 520.7 mm
Logistics data
Products per master (outer) case 1 pc(s)
Harmonized System (HS) code 85176990
Quantity per pack 1 pc(s)
Other features
Bandwidth 160 Gbit/s
