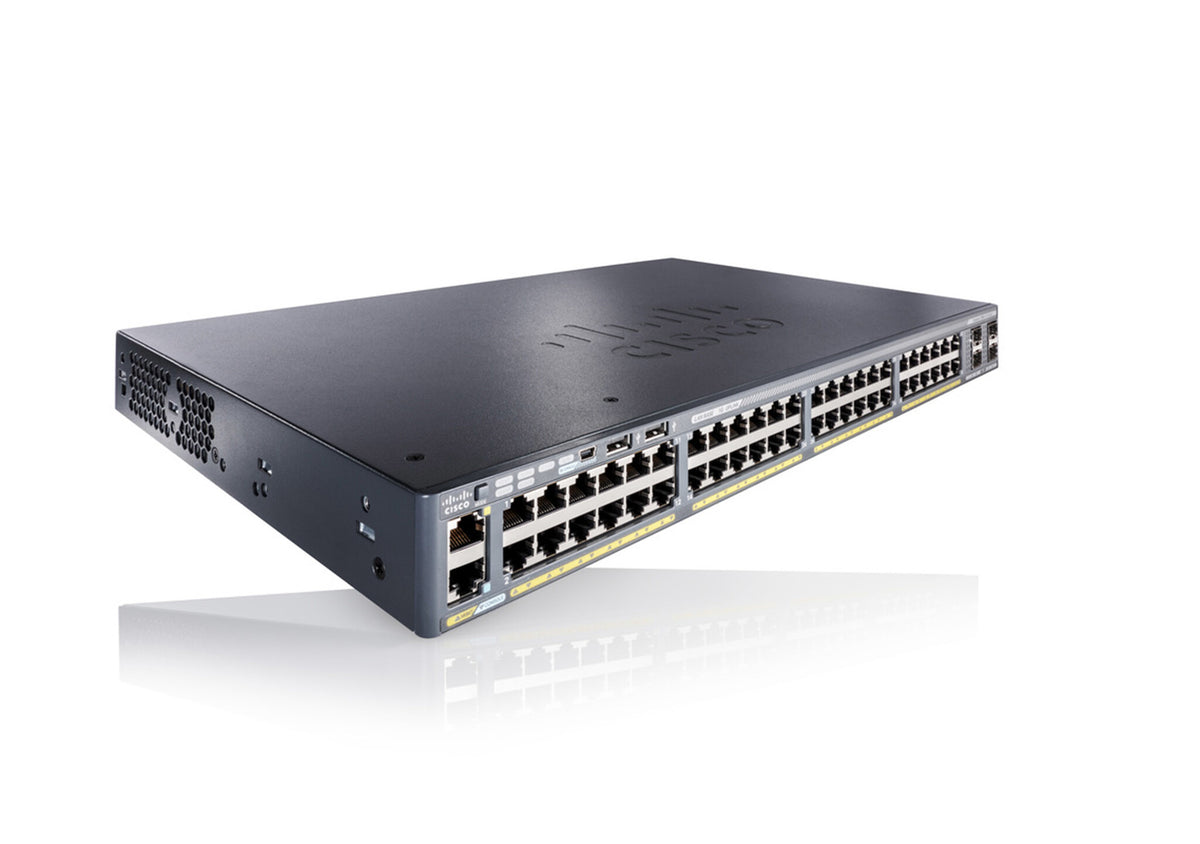

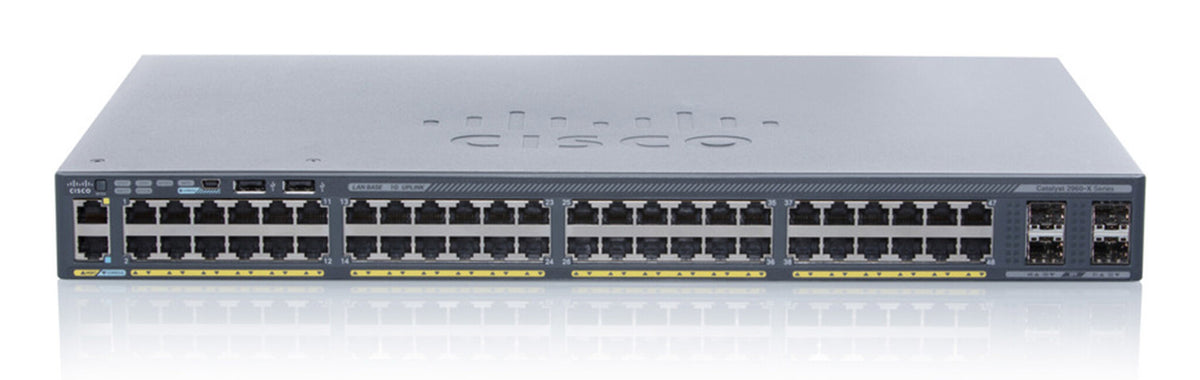

Cisco Catalyst WS-C2960X-48FPD-L Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Cisco Catalyst WS-C2960X-48FPD-L Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
SKU:WS-C2960X-48FPD-L-RFB
Low stock: 1 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Managed L2 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48 Console port: RJ-45
- 10G support
- MAC address table: 16000 entries Switching capacity: 216 Gbit/s
- Access Control List (ACL)
- Rack mounting Stackable
- Power over Ethernet (PoE)
The Cisco Catalyst 2960X-48FPD-L Network Switch is a fixed-configuration, stackable Gigabit Ethernet switch that provides enterprise-class access for campus and branch applications. This Ethernet switch operates on Cisco IOS Software and supports simple device and network management. It offers advanced Layer 2 and Layer 3 features as well as optional PoE+ power. The switches deliver enhanced application visibility, network reliability and network resiliency.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 2 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 2 |
| Network | |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Full duplex | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| VLAN support | Yes |
| Number of VLANs | 1023 |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 216 Gbit/s |
| Throughput | 130.9 Mpps |
| Jumbo frames support | Yes |
| Security | |
|---|---|
| DHCP features | DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Market segment | Business |
| Country of origin | China |
| general_information_attribute_container_name | |
|---|---|
| attribute_product_family_name | Catalyst |
| Performance | |
|---|---|
| Built-in processor | Yes |
| Processor model | AppliedMicro APM8639 |
| Processor frequency | 600 MHz |
| Memory type | DRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Noise level | 39 dB |
| Mean time between failures (MTBF) | 233370 h |
| Power | |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 66 W |
| Power plug type | Type C |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 740 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -5 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4000 m |
| Weight & dimensions | |
|---|---|
| Width | 445 mm |
| Depth | 368 mm |
| Height | 45 mm |
| Weight | 5.8 kg |
| Packaging data | |
|---|---|
| Package width | 469.9 mm |
| Package depth | 549.4 mm |
| Package height | 147.6 mm |
| Package weight | 7.57 kg |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
