SKU: WS-C2960X-24TS-L-RFB
Low stock: 2 left
Managed L2/L3 Web-based management SNMPv3
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45
10G support
MAC address table: 16000 entries Switching capacity: 216 Gbit/s
3 Access Control List (ACL)
1U Rack mounting Stackable

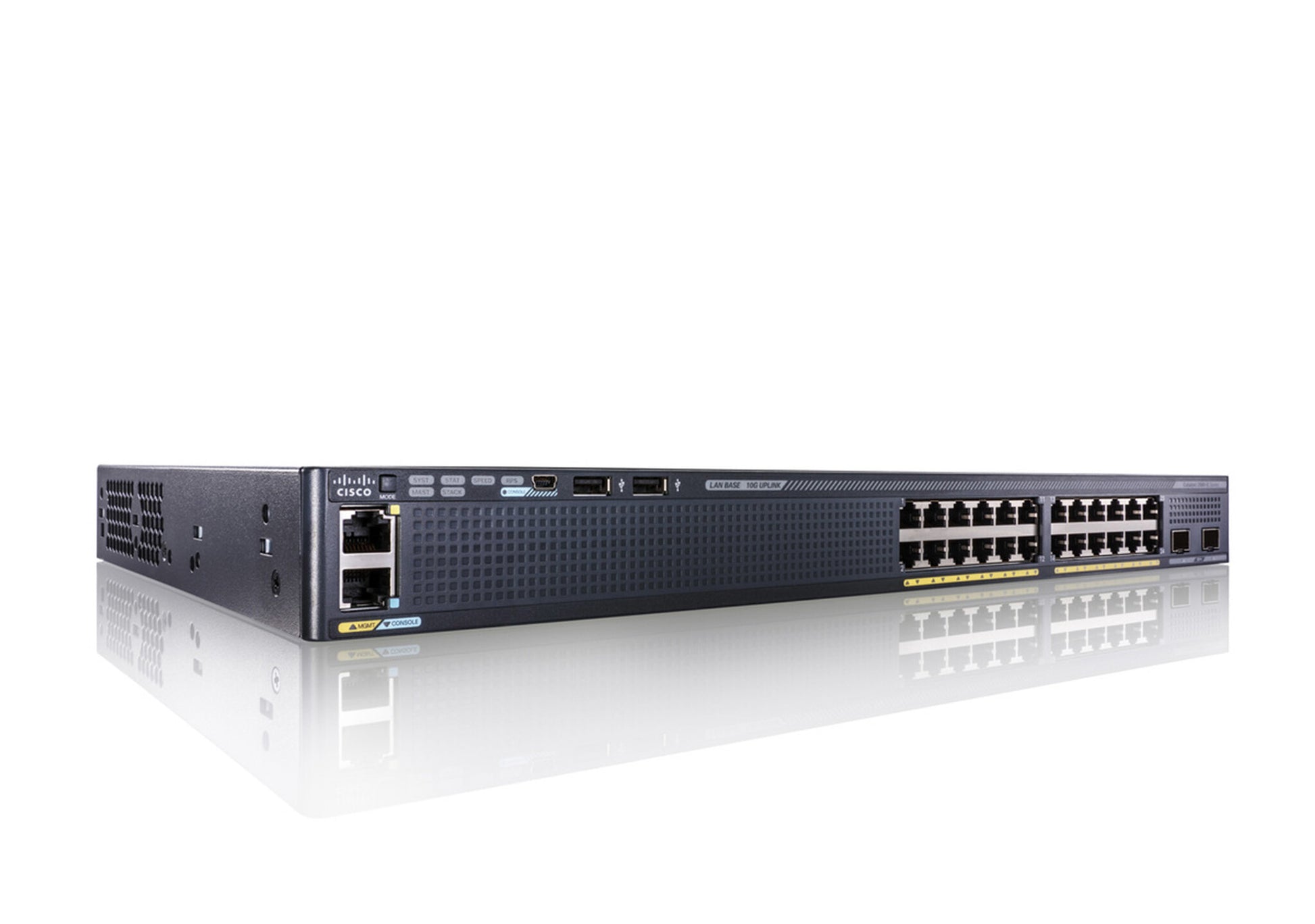

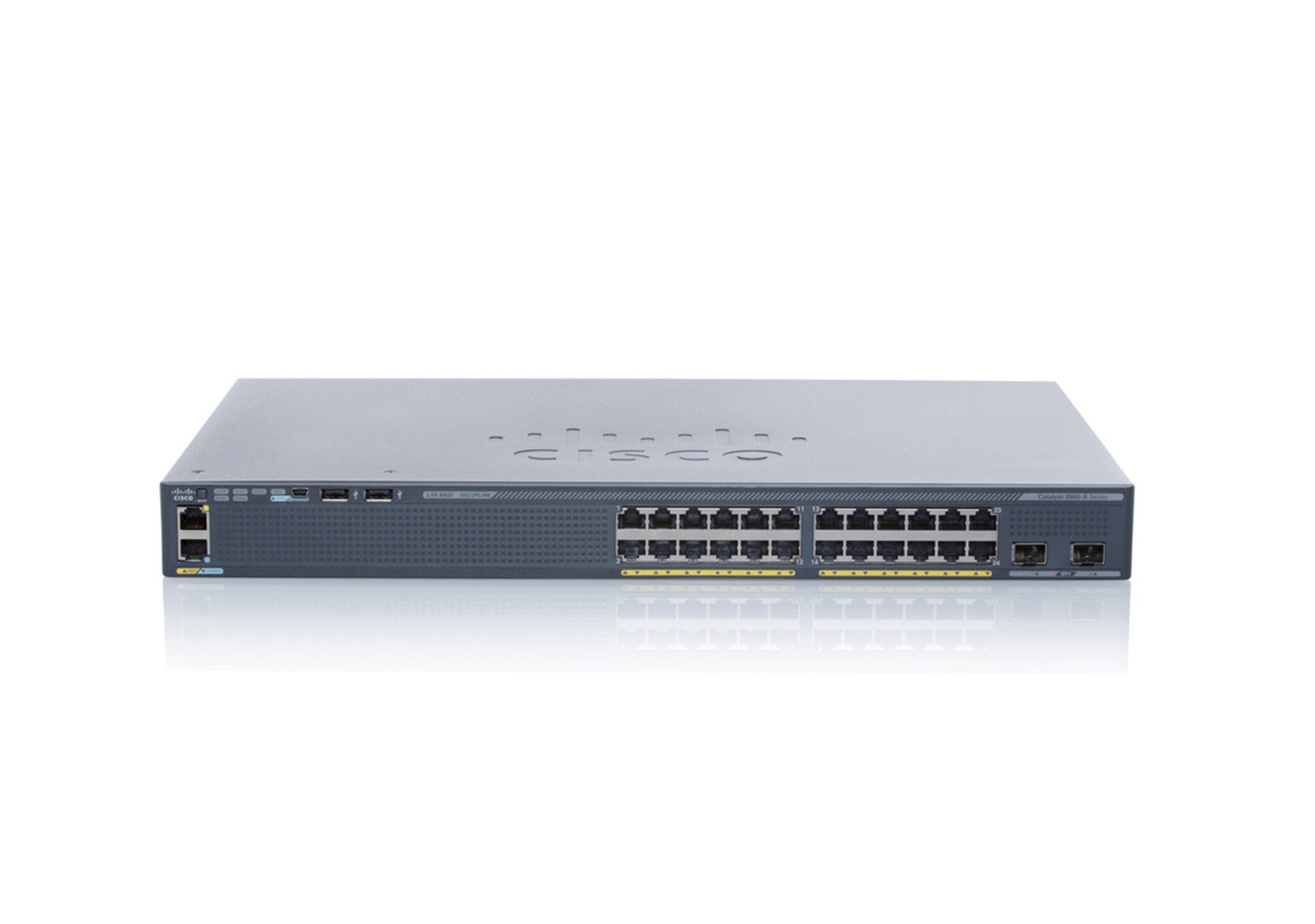

Catalyst 2960X-24TS-L Network Switch, 24 Gigabit Ethernet Ports, two 10 G SFP+ Uplink Ports, Enhanced Limited Lifetime Warranty (WS-C2960X-24TS-L)
The Cisco Catalyst 2960X-24TS-L Network Switch is a fixed-configuration, stackable Gigabit Ethernet switch that provides enterprise-class access for campus and branch applications. This Ethernet switch operates on Cisco IOS Software and supports simple device and network management. It offers advanced Layer 2 and Layer 3 features as well as optional PoE+ power. The switches deliver enhanced application visibility, network reliability and network resiliency.
Management features
MIB support
Y
ARP inspection
Yes
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2/L3
Switch type
Managed
Ports & interfaces
USB 2.0 ports quantity
2
Console port
RJ-45
SFP module slots quantity
4
Gigabit Ethernet (copper) ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24
Network
Number of VLANs
1023
VLAN support
Yes
Rate limiting
Yes
Auto MDI/MDI-X
Yes
Broadcast storm control
Yes
Auto-negotiation
Yes
Link aggregation
Yes
Spanning tree protocol
Yes
Full duplex
Yes
10G support
Yes
Networking standards
IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Data transmission
Jumbo frames
9216
Jumbo frames support
Yes
Number of static routes
1000
Number of queues
8
Throughput
71.4 Mpps
Switching capacity
216 Gbit/s
MAC address table
16000 entries
Security
SSH/SSL support
Yes
Authentication
MAC-based authentication, Port-based authentication
Security algorithms
SNMP, SSH
IGMP snooping
Yes
Access Control List (ACL) rules
3
Access Control List (ACL)
Yes
DHCP features
DHCP server
Multicast features
Number of multicast groups filtered
1000
Multicast support
Yes
Protocols
Switching protocols
UDP, TCP, RADIUS/TACACS+
Management protocols
SNMPv3
Design
Safety
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Country of origin
China
Market segment
Business
LED indicators
Yes
Product colour
Black
Form factor
1U
Stackable
Yes
Rack mounting
Yes
general_information_attribute_container_name
attribute_product_family_name
Small Business
Product series
Catalyst 2960
Performance
Mean time between failures (MTBF)
564910 h
Noise level
42 dB
Flash memory
128 MB
Internal memory
512 MB
Memory type
DRAM
Processor frequency
600 MHz
Processor model
AppliedMicro APM8639
Built-in processor
Yes
Physical stacking (units)
8
Technical details
Products per shipping (inner) case
1 pc(s)
Power
Power plug type
Type C
Power consumption (typical)
36.9 W
AC input voltage
100 - 240 V
Number of power supply units
1
Redundant power supply (RPS) support
Yes
Operational conditions
Non-operating altitude
0 - 4000 m
Operating altitude
0 - 3000 m
Storage relative humidity (H-H)
10 - 95%
Operating relative humidity (H-H)
10 - 95%
Storage temperature (T-T)
-25 - 70 °C
Operating temperature (T-T)
-5 - 40 °C
Weight & dimensions
Weight
4 kg
Height
45 mm
Depth
279 mm
Width
445 mm
Packaging data
Package weight
5.4 kg
Package height
147.6 mm
Package depth
549.4 mm
Package width
390.7 mm
User guide
Yes
Cables included
AC
Logistics data
Products per master (outer) case
1 pc(s)
Harmonized System (HS) code
85176990
Quantity per pack
1 pc(s)
Other features
Power LED
Yes
