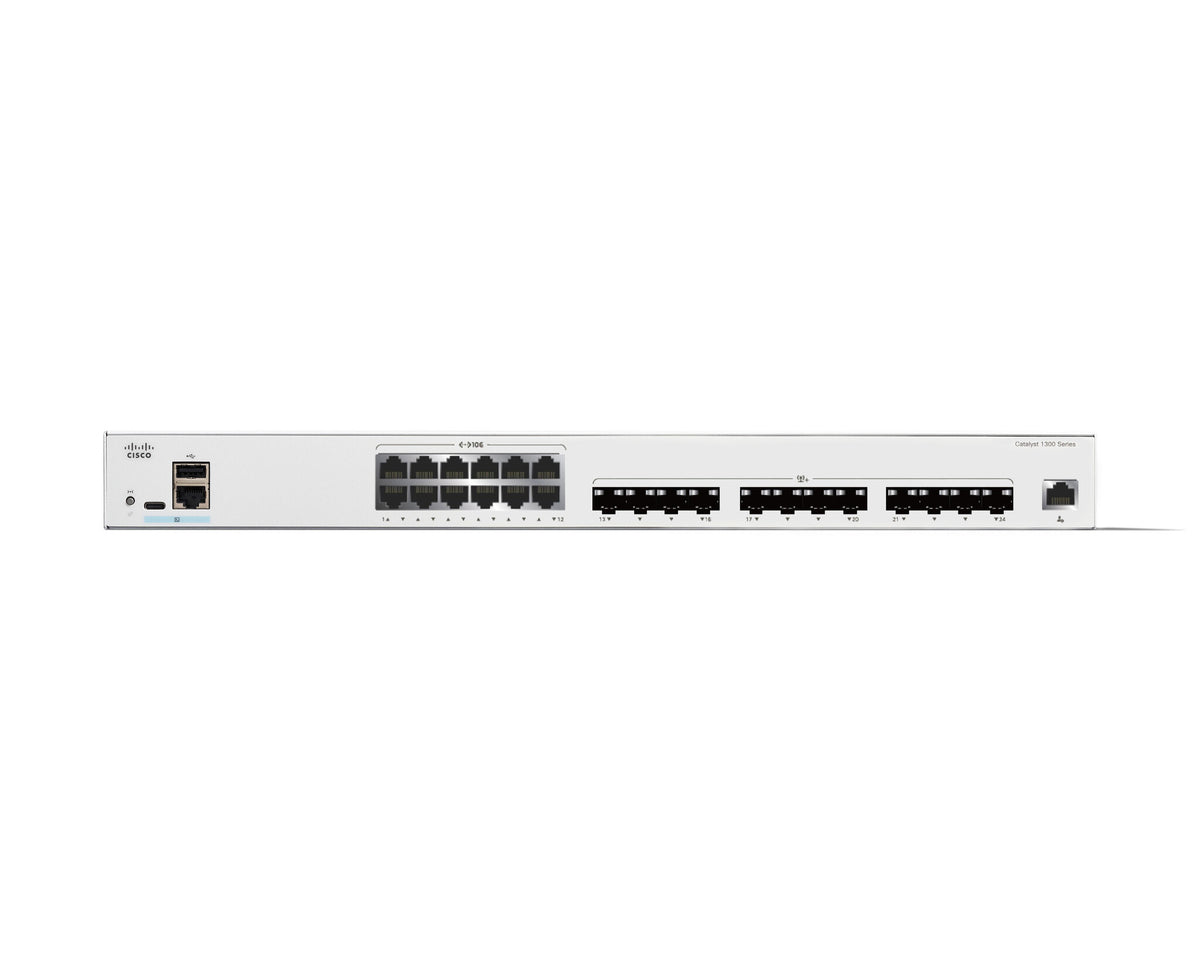

Cisco Catalyst 1300-24XTS Managed Switch, 12 Port 10G Copper, 12x10GE SFP+, Limited Lifetime Protection (C1300-24XTS)

Cisco Catalyst 1300-24XTS Managed Switch, 12 Port 10G Copper, 12x10GE SFP+, Limited Lifetime Protection (C1300-24XTS)

£2,647.90 GBP
£2,647.90 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

C1300-24XTS

Low stock: 4 left

  • Managed L2/L3 Web-based management
  • Quality of Service (QoS) support Configuring Location Settings (CLI)
  • Basic switching RJ-45 Ethernet ports quantity: 12 Console port: RJ-45/USB Type-C
  • Cat5e
  • MAC address table: 16000 entries Switching capacity: 480 Gbit/s
  • 1024 Access Control List (ACL)
  • Rack mounting
  • AC
Catalyst 1300-24XTS Managed Switch, 12 Port 10G Copper, 12x10GE SFP+, Limited Lifetime Protection (C1300-24XTS)

The Cisco Catalyst 1300 Series Switches are fixed, managed, enterprise-class Gigabit Ethernet Layer 3 switches designed for small and medium-sized business and branch offices. These simple, flexible, and secure switches are ideal for deployment out of the wiring closet. The Catalyst 1300 Series operates on customized Linux OS software, with an intuitive dashboard that simplifies network setup and advanced features that accelerate digital transformation, while pervasive security protects business-critical transactions. The 1300 Series switches provide the ideal combination of affordability and capabilities for small and medium-sized businesses and help you create a more efficient, better-connected workforce. When your business needs advanced networking features and security for the digital transformation, yet value is still a top consideration, you’re ready for the Cisco Catalyst 1300 Series Switches.

Management features
Switch type Managed
Switch layer L2/L3
Quality of Service (QoS) support Yes
Web-based management Yes
Configuring Location Settings (CLI) Yes
MIB support Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 12
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
SFP+ module slots quantity 12
Console port RJ-45/USB Type-C
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Cable types supported Cat5e
Port mirroring Yes
Policy-based routing Yes
QinQ implementation Selective QinQ
Head-of-line (HOL) blocking Yes
Rate limiting Yes
Spanning tree protocol Yes
Link aggregation Yes
Broadcast storm control Yes
VLAN support Yes
Virtual LAN features Private VLAN, Voice VLAN
Data transmission
MAC address table 16000 entries
Switching capacity 480 Gbit/s
Number of queues 8
Static route Yes
Number of static routes 990
Jumbo frames support Yes
Jumbo frames 9000
Packet buffer memory 8 MB
Security
DHCP features DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL) Yes
Access Control List (ACL) rules 1024
IGMP proxy Yes
IGMP snooping Yes
DoS attack prevention Yes
Authentication MAC-based authentication, Web-based authentication
SSH/SSL support Yes
Queue scheduling algorithms Weighted Round Robin (WRR)
Authentication type RADIUS, TACACS+
Security algorithms HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2
Multicast features
Multicast support Yes
Protocols
GARP VLAN Registration Protocol (GVRP) Yes
IPv4 & IPv6 features ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet
Design
Rack mounting Yes
Product colour Grey
Reset button Yes
Country of origin China
Certification UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
general_information_attribute_container_name
attribute_product_family_name Catalyst
Performance
Built-in processor Yes
Processor frequency 1.4 MHz
Memory type DDR4-SDRAM
Internal memory 1000 MB
Flash memory 512 MB
Noise level 39 dB
Plug and Play Yes
Mean time between failures (MTBF) 427188 h
Power
Power source AC
AC input voltage 100 - 220 V
AC input frequency 50/60 Hz
Power consumption (typical) 88.2 W
Power plug type Type C
Operational conditions
Operating temperature (T-T) -5 - 50 °C
Storage temperature (T-T) -25 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 10 - 90%
Heat dissipation 300.76 BTU/h
Weight & dimensions
Width 445 mm
Depth 273 mm
Height 44 mm
Weight 4.2 kg
Packaging data
Package width 430 mm
Package depth 574.7 mm
Package height 105.9 mm
Package weight 5.6 kg
Other features
Packaging content Switch, power cable, USB Type C cable and mounting hardware
