Cisco

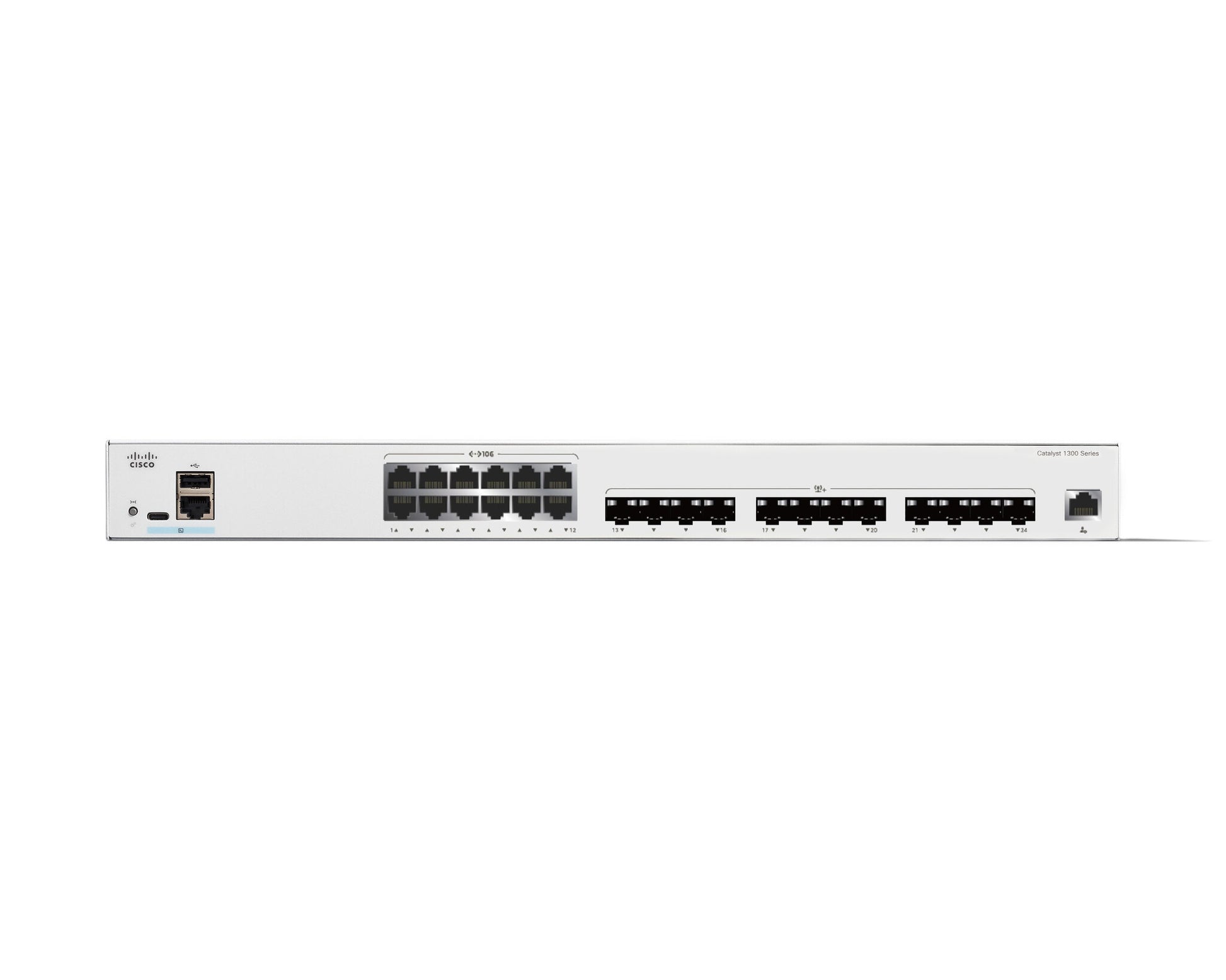

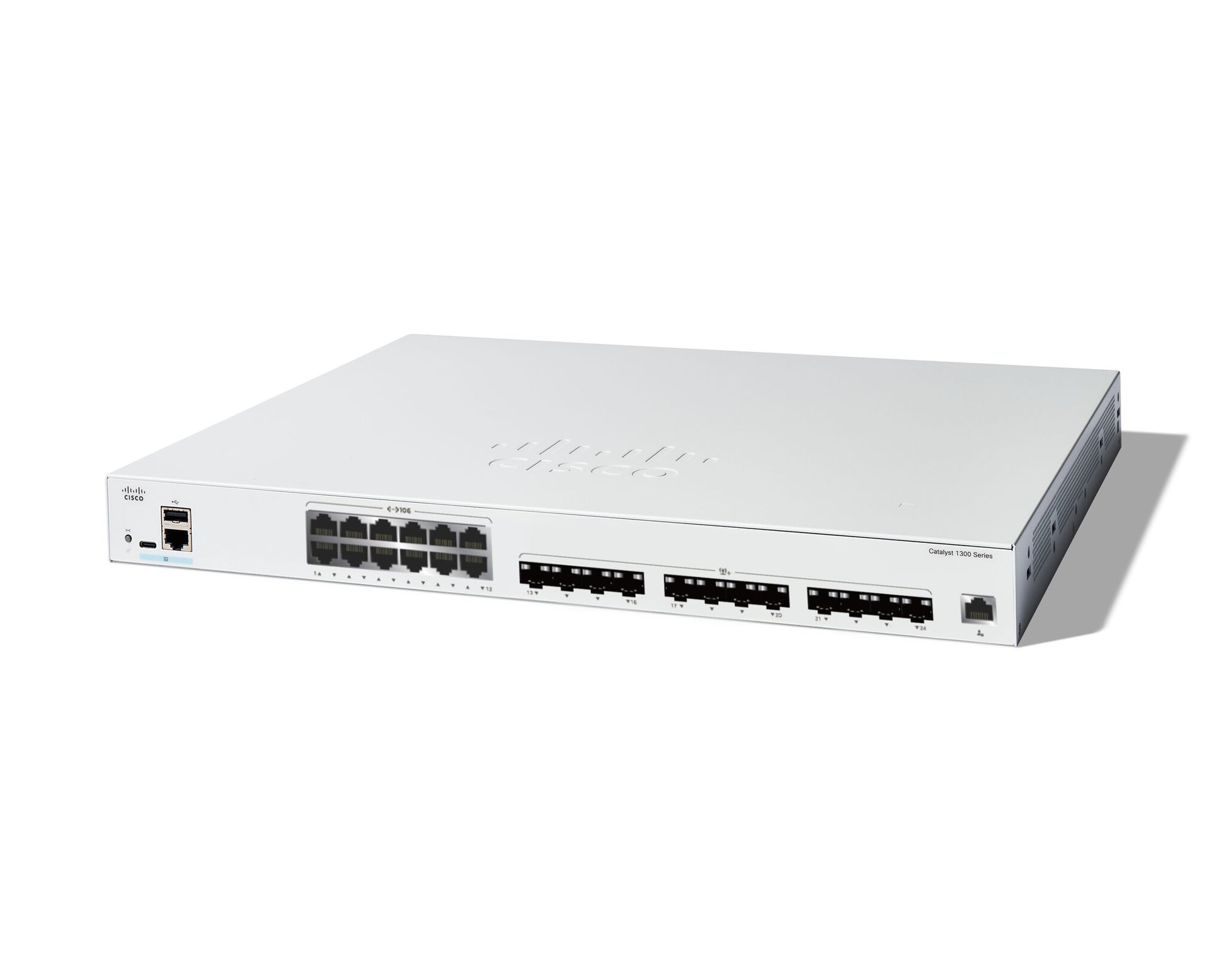

Cisco Catalyst 1300-24XTS Managed Switch, 12 Port 10G Copper, 12x10GE SFP+, Limited Lifetime Protection (C1300-24XTS)

Cisco Catalyst 1300-24XTS Managed Switch, 12 Port 10G Copper, 12x10GE SFP+, Limited Lifetime Protection (C1300-24XTS)

£2,654.15 GBP
£2,654.15 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

C1300-24XTS

Low stock: 2 left

  • Managed L2/L3 Web-based management
  • Quality of Service (QoS) support Configuring Location Settings (CLI)
  • Basic switching RJ-45 Ethernet ports quantity: 12 Console port: RJ-45/USB Type-C
  • Cat5e
  • MAC address table: 16000 entries Switching capacity: 480 Gbit/s
  • 1024 Access Control List (ACL)
  • Rack mounting
  • AC
Catalyst 1300-24XTS Managed Switch, 12 Port 10G Copper, 12x10GE SFP+, Limited Lifetime Protection (C1300-24XTS)

The Cisco Catalyst 1300 Series Switches are fixed, managed, enterprise-class Gigabit Ethernet Layer 3 switches designed for small and medium-sized business and branch offices. These simple, flexible, and secure switches are ideal for deployment out of the wiring closet. The Catalyst 1300 Series operates on customized Linux OS software, with an intuitive dashboard that simplifies network setup and advanced features that accelerate digital transformation, while pervasive security protects business-critical transactions. The 1300 Series switches provide the ideal combination of affordability and capabilities for small and medium-sized businesses and help you create a more efficient, better-connected workforce. When your business needs advanced networking features and security for the digital transformation, yet value is still a top consideration, you’re ready for the Cisco Catalyst 1300 Series Switches.

Management features
MIB support Y
Configuring Location Settings (CLI) Yes
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L2/L3
Switch type Managed
Ports & interfaces
Console port RJ-45/USB Type-C
SFP+ module slots quantity 12
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity 12
Network
Virtual LAN features Private VLAN, Voice VLAN
VLAN support Yes
Head-of-line (HOL) blocking Yes
Rate limiting Yes
QinQ implementation Selective QinQ
Broadcast storm control Yes
Link aggregation Yes
Spanning tree protocol Yes
Policy-based routing Yes
Port mirroring Yes
Cable types supported Cat5e
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Data transmission
Packet buffer memory 8 MB
Jumbo frames 9000
Jumbo frames support Yes
Number of static routes 990
Static route Yes
Number of queues 8
Switching capacity 480 Gbit/s
MAC address table 16000 entries
Security
DoS attack prevention Yes
SSH/SSL support Yes
Authentication MAC-based authentication, Web-based authentication
Security algorithms HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2
Authentication type RADIUS, TACACS+
Queue scheduling algorithms Weighted Round Robin (WRR)
IGMP proxy Yes
IGMP snooping Yes
Access Control List (ACL) rules 1024
Access Control List (ACL) Yes
DHCP features DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping
Multicast features
Multicast support Yes
Protocols
IPv4 & IPv6 features ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet
GARP VLAN Registration Protocol (GVRP) Yes
Design
Certification UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Country of origin China
Reset button Yes
Product colour Grey
Rack mounting Yes
general_information_attribute_container_name
attribute_product_family_name Catalyst
Performance
Mean time between failures (MTBF) 427188 h
Plug and Play Yes
Noise level 39 dB
Flash memory 512 MB
Internal memory 1000 MB
Memory type DDR4-SDRAM
Processor frequency 1.4 MHz
Built-in processor Yes
Power
Power plug type Type C
Power consumption (typical) 88.2 W
AC input frequency 50/60 Hz
AC input voltage 100 - 220 V
Power source AC
Operational conditions
Heat dissipation 300.76 BTU/h
Storage relative humidity (H-H) 10 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -25 - 70 °C
Operating temperature (T-T) -5 - 50 °C
Weight & dimensions
Weight 4.2 kg
Height 44 mm
Depth 273 mm
Width 445 mm
Packaging data
Package weight 5.6 kg
Package height 105.9 mm
Package depth 574.7 mm
Package width 430 mm
Other features
Packaging content Switch, power cable, USB Type C cable and mounting hardware
