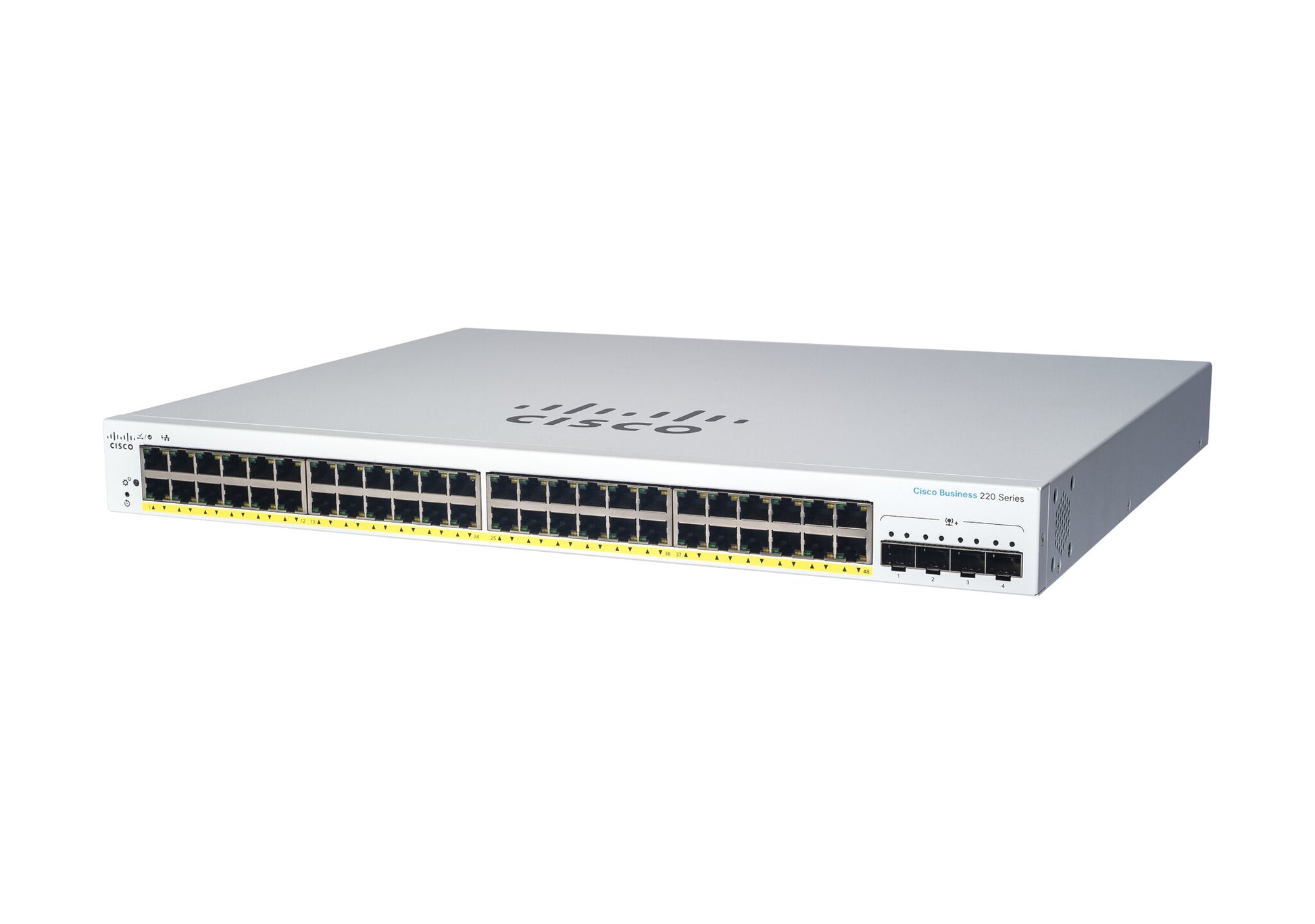

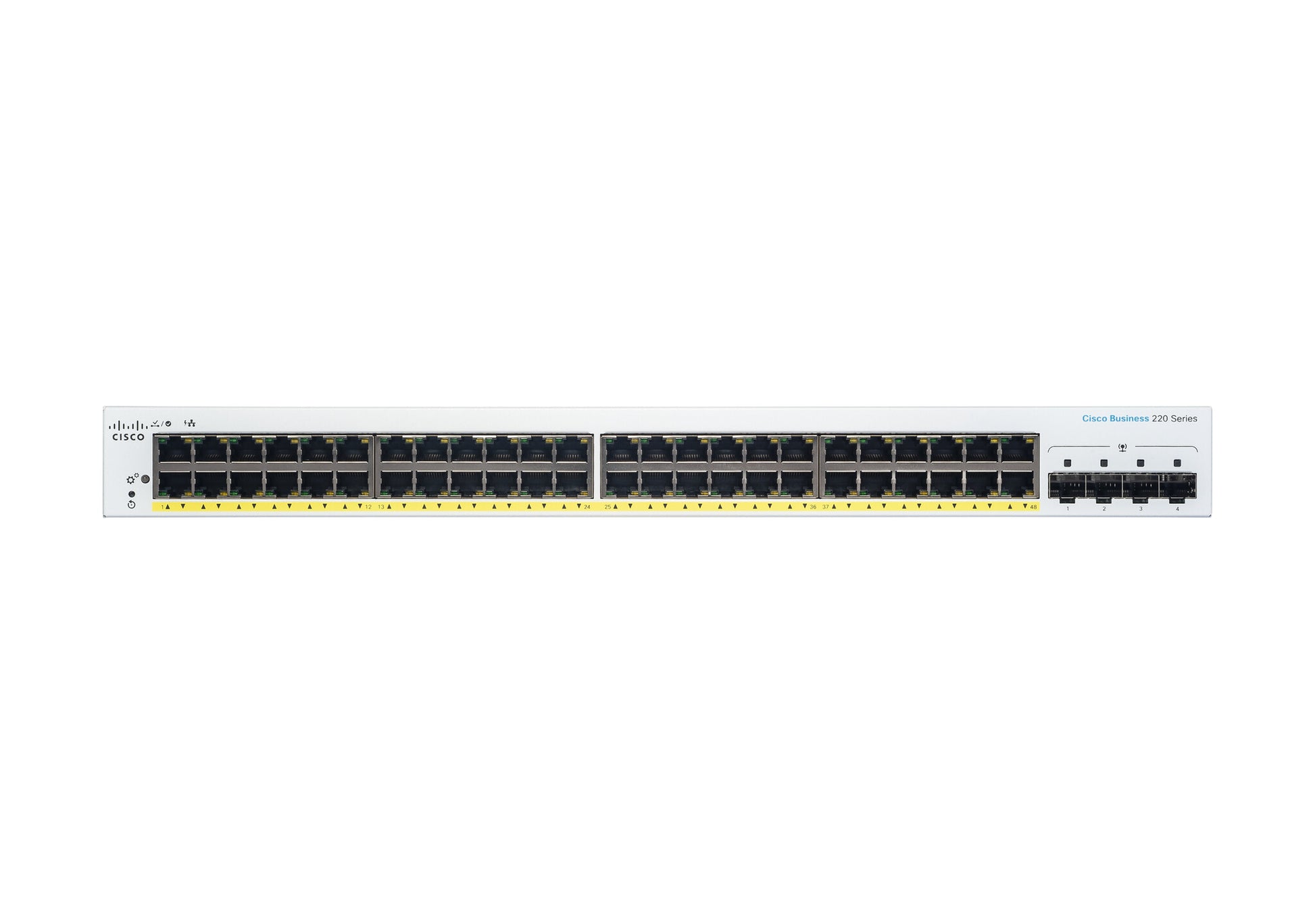

Cisco Business CBS220-48P-4G Smart Switch | 48 Port GE | PoE | 4x1G SFP | 3-Year Limited Hardware Warranty (CBS220-48P-4G-UK)

Cisco Business CBS220-48P-4G Smart Switch | 48 Port GE | PoE | 4x1G SFP | 3-Year Limited Hardware Warranty (CBS220-48P-4G-UK)

Regular price £572.56 GBP
Regular price Sale price £572.56 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:CBS220-48P-4G-UK

16 in stock

  • SWITCH PORTS: 48-Port 10/100/1000 + 4 x 1G SFP

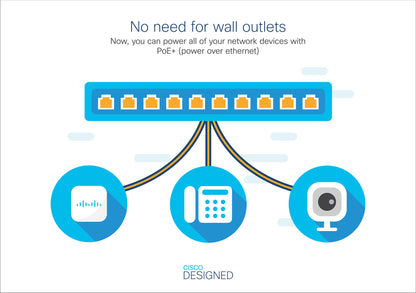

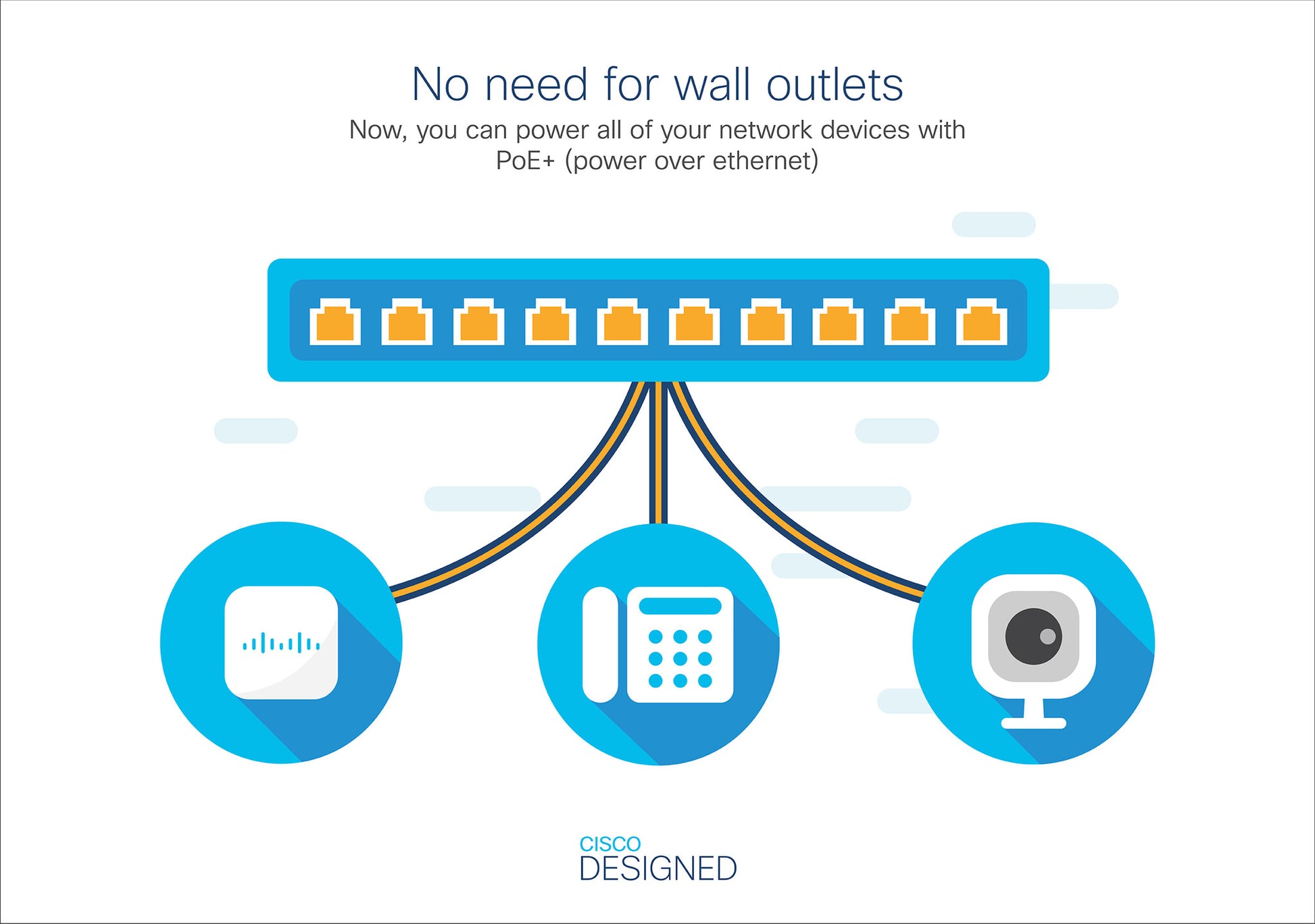

  • POWER-OVER-ETHERNET: 48 PoE ports with 382W total power budget, PoE, PoE+
  • SIMPLE: Intuitive on-box UI, mobile app and Cisco Business Dashboard simplifies network operations and automates lifecycle management
  • SECURITY: Integrated with IEEE 802.1X to control access to your network, Denial-of- Service (DoS) attack prevention increases network uptime during an attack, while Access Control Lists (ACLs) protect the network from unauthorized users
  • INNOVATIVE DESIGN: Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
  • ENERGY EFFICIENT: Optimizes power usage to lower operational cost. Compliant with IEEE802.3az Energy Efficient Ethernet. Fanless in select models
  • PEACE OF MIND: 3-year limited hardware warranty with return-to-factory replacement and one-year technical support
Business CBS220-48P-4G Smart Switch | 48 Port GE | PoE | 4x1G SFP | 3-Year Limited Hardware Warranty (CBS220-48P-4G-UK)

The Cisco Business CBS220-48P-4G switch is simple and affordable smart switch for business-class network. CBS220 series bridge the gap between the affordability of an unmanaged device and the ease-of-use of smart switches. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.

Management features
MIB support Y
System event log Yes
Configuring Location Settings (CLI) Yes
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L2
Switch type Managed
Ports & interfaces
SFP module slots quantity 4
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 48
Network
Number of VLANs 256
VLAN support Yes
Head-of-line (HOL) blocking Yes
Flow control support Yes
Auto MDI/MDI-X Yes
Broadcast storm control Yes
Link aggregation Yes
Spanning tree protocol Yes
Port mirroring Yes
10G support No
Networking standards IEEE 802.1D, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Data transmission
Packet buffer memory 12 MB
Jumbo frames 9216
Jumbo frames support Yes
Forwarding rate 74.38 Mpps
Switching capacity 104 Gbit/s
MAC address table 8192 entries
Security
BPDU filtering/protection Yes
SSH/SSL support Yes
Loop protection Yes
MAC address filtering Yes
Security algorithms SSL/TLS
IGMP entries 256
IGMP snooping Yes
Access Control List (ACL) rules 512
Access Control List (ACL) Yes
DHCP features DHCP client
Multicast features
Number of multicast groups filtered 256
Multicast support Yes
Protocols
GARP VLAN Registration Protocol (GVRP) Yes
Management protocols SNMP
Design
Country of origin China
Market segment Business
Number of fans 1 fan(s)
LED indicators Activity, Link, Speed, System
Reset button Yes
Product colour White
Rack mounting Yes
Performance
Firmware upgradeable Yes
Flash memory 64 MB
Internal memory 256 MB
Technical details
Products per shipping (inner) case 1 pc(s)
Power
Power plug type Type C
Power consumption (max) 478.2 W
Power consumption (typical) 52.6 W
Power supply included Yes
Power source AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 382 W
Power over Ethernet (PoE) ports quantity 48
Power over Ethernet (PoE) Yes
Operational conditions
Storage relative humidity (H-H) 10 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -20 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Weight & dimensions
Weight 5.29 kg
Height 44 mm
Depth 440 mm
Width 350 mm
Packaging data
Package weight 7.27 kg
Package height 109.2 mm
Package depth 574 mm
Package width 513.1 mm
Logistics data
Products per master (outer) case 1 pc(s)
Harmonized System (HS) code 85176990
Quantity per pack 1 pc(s)
Other features
Packaging content Switch, Power cord or adapter, Mounting hardware, and Quick Start Guide
