Cisco

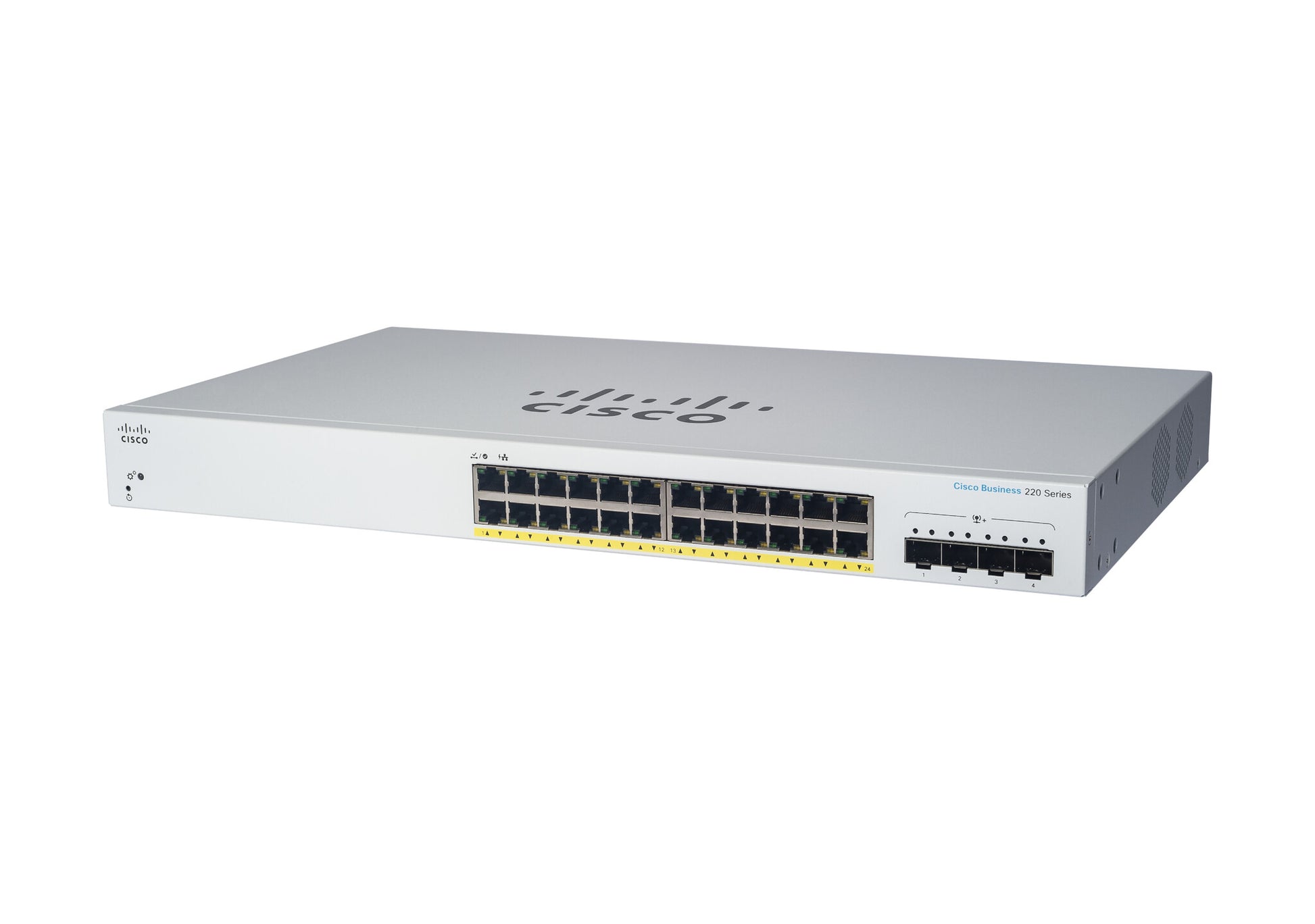

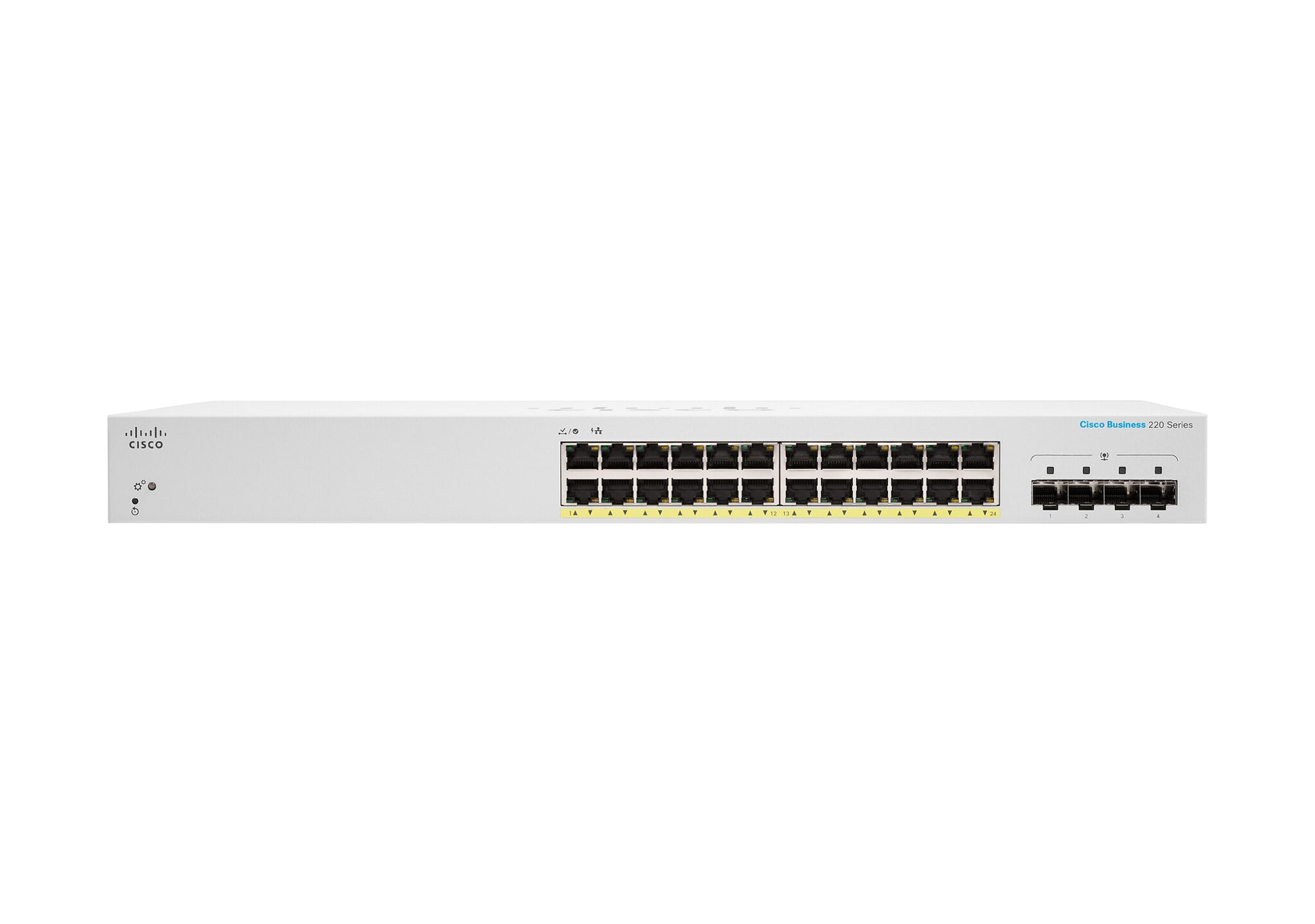

Cisco Business CBS220-24P-4G Smart Switch | 24 Port GE | PoE | 4x1G SFP | 3-Year Limited Hardware Warranty (CBS220-24P-4G-UK)

Cisco Business CBS220-24P-4G Smart Switch | 24 Port GE | PoE | 4x1G SFP | 3-Year Limited Hardware Warranty (CBS220-24P-4G-UK)

Regular price £315.49 GBP
Regular price Sale price £315.49 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:CBS220-24P-4G-UK

23 in stock

  • SWITCH PORTS: 24-Port 10/100/1000 + 4 x 1G SFP
  • POWER-OVER-ETHERNET: 24 PoE ports with 195W total power budget, PoE, PoE+

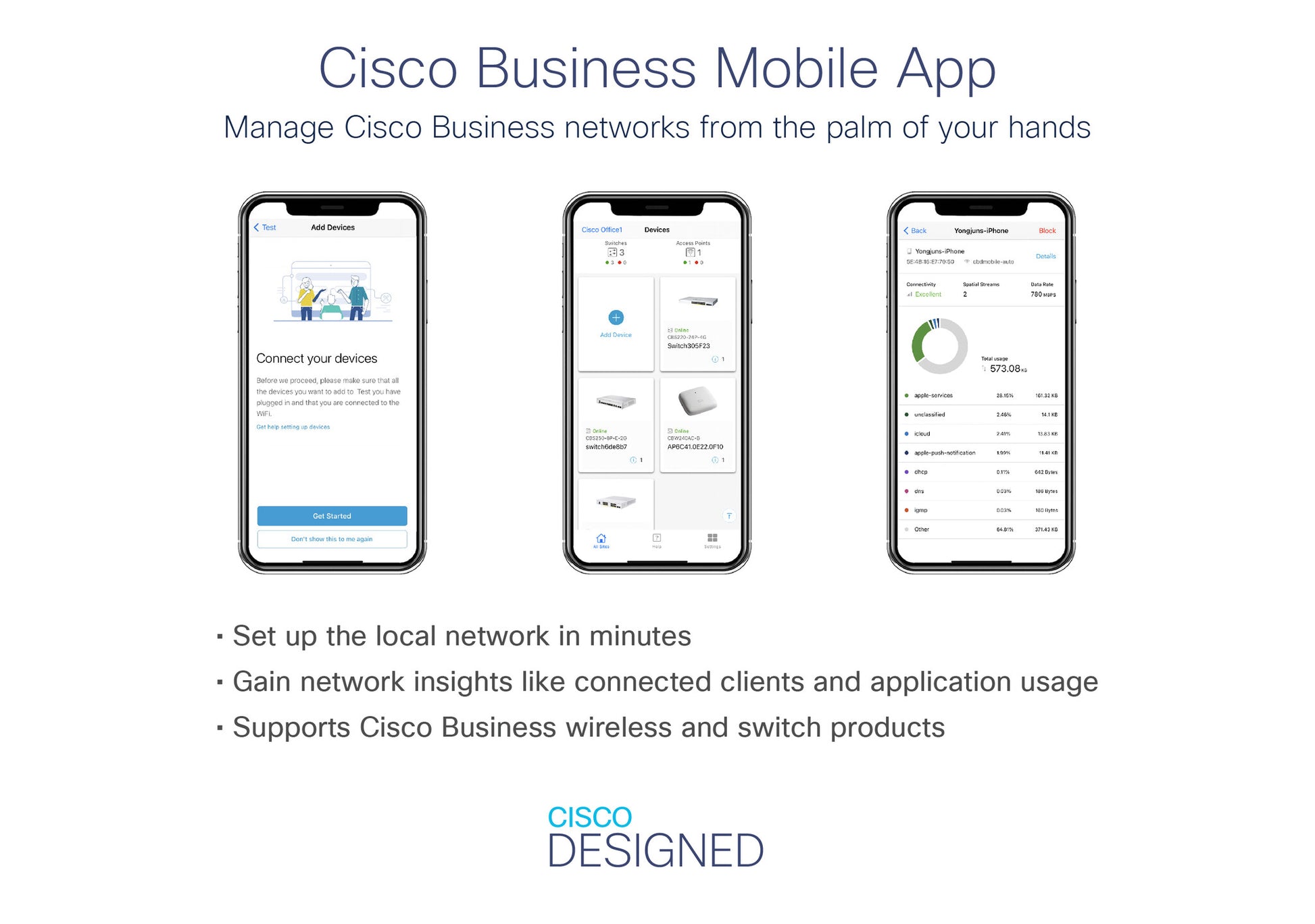

  • SIMPLE: Intuitive on-box UI, mobile app and Cisco Business Dashboard simplifies network operations and automates lifecycle management
  • SECURITY: Integrated with IEEE 802.1X to control access to your network, Denial-of- Service (DoS) attack prevention increases network uptime during an attack, while Access Control Lists (ACLs) protect the network from unauthorized users
  • INNOVATIVE DESIGN: Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
  • ENERGY EFFICIENT: Optimizes power usage to lower operational cost. Compliant with IEEE802.3az Energy Efficient Ethernet. Fanless in select models
  • PEACE OF MIND: 3-year limited hardware warranty with return-to-factory replacement and one-year technical support
Business CBS220-24P-4G Smart Switch | 24 Port GE | PoE | 4x1G SFP | 3-Year Limited Hardware Warranty (CBS220-24P-4G-UK)

The Cisco Business CBS220-24P-4G switch is simple and affordable smart switch for business-class network. CBS220 series bridge the gap between the affordability of an unmanaged device and the ease-of-use of smart switches. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.

Management features
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Yes
Web-based management Yes
System event log Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP module slots quantity 4
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support Yes
Port mirroring Yes
IP routing Yes
Head-of-line (HOL) blocking Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Spanning tree protocol Yes
Link aggregation Yes
Broadcast storm control Yes
Auto MDI/MDI-X Yes
Flow control support Yes
VLAN support Yes
Number of VLANs 256
Data transmission
MAC address table 8192 entries
Switching capacity 56 Gbit/s
Forwarding rate 41.66 Mpps
Number of queues 8
Jumbo frames support Yes
Jumbo frames 9216
Packet buffer memory 4.1 MB
Security
DHCP features DHCP client
Access Control List (ACL) Yes
IGMP snooping Yes
Loop protection Yes
BPDU filtering/protection Yes
SSH/SSL support Yes
Queue scheduling algorithms Weighted Round Robin (WRR)
Authentication type IEEE 802.1x, RADIUS
Security algorithms SSH, SSH-2, SSL/TLS
MAC address filtering Yes
Multicast features
Multicast support Yes
Multicast MAC address table 8192 entries
Protocols
Management protocols SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP
GARP VLAN Registration Protocol (GVRP) Yes
Design
Rack mounting Yes
Form factor 1U
Product colour White
Reset button Yes
LED indicators Yes
Market segment Business
Number of fans 1 fan(s)
Country of origin China
Performance
Built-in processor Yes
Internal memory 256 MB
Flash memory 64 MB
Firmware upgradeable Yes
Technical details
Products per shipping (inner) case 1 pc(s)
Power
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Power plug type Type C
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Total Power over Ethernet (PoE) budget 195 W
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 10 - 90%
Heat dissipation 833.59 BTU/h
Weight & dimensions
Width 257 mm
Depth 439.9 mm
Height 43.9 mm
Weight 4.07 kg
Packaging data
Package width 419.1 mm
Package depth 574 mm
Package height 109.2 mm
Package weight 6.01 kg
Logistics data
Quantity per pack 1 pc(s)
Harmonized System (HS) code 85176990
Products per master (outer) case 1 pc(s)
Other features
Packaging content Switch, Power cord or adapter, Mounting hardware, and Quick Start Guide
