Cisco Business CBS110-8PP-D Unmanaged Switch | 8 Port GE | Partial PoE | Desktop | Ext PS | Limited Lifetime Protection (CBS110-8PP-D)

Cisco Business CBS110-8PP-D Unmanaged Switch | 8 Port GE | Partial PoE | Desktop | Ext PS | Limited Lifetime Protection (CBS110-8PP-D)

£155.52 GBP
£155.52 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

CBS110-8PP-D-UK

Low stock: 3 left

  • SWITCH PORTS: 8 -Port 10/100/1000
  • SIMPLE: Plug-and-play without a need for IT know-how or support.

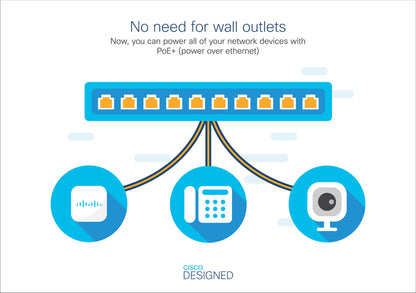

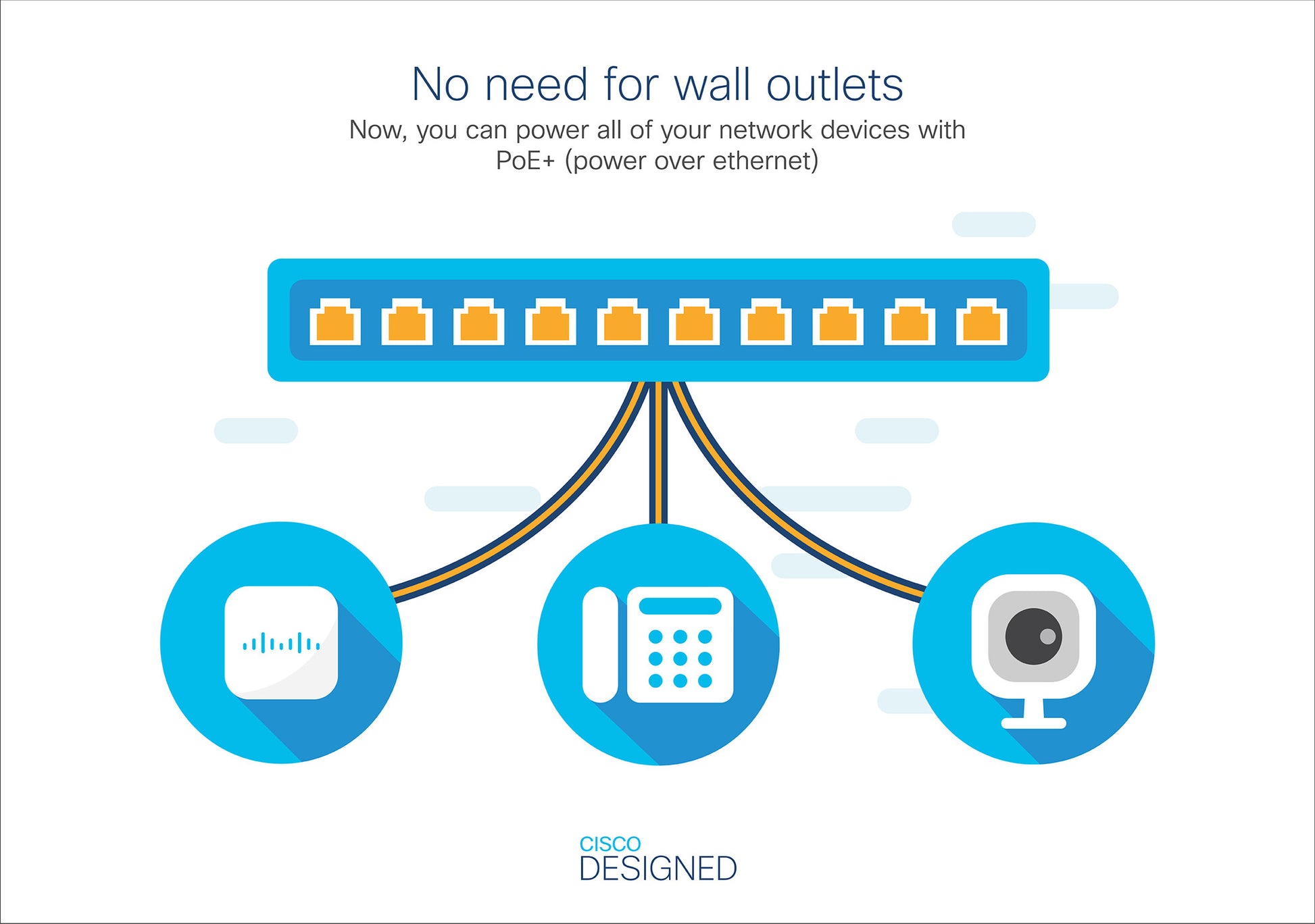

  • POWER-OVER-ETHERNET: 4 PoE ports with 32W total power budget
  • PERFORMANCE: Gigabit Ethernet and integrated quality-of-service (QoS) intelligence optimize delay-sensitive services and improve overall network performance.
  • INNOVATIVE DESIGN: Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
  • ENERGY EFFICIENT: Optimizes power usage to lower operational cost. Compliant with IEEE802.3az Energy Efficient Ethernet. Fanless in all models
  • PEACE OF MIND: Limited-lifetime warranty with return to factory replacement and one-year technical support
Business CBS110-8PP-D Unmanaged Switch | 8 Port GE | Partial PoE | Desktop | Ext PS | Limited Lifetime Protection (CBS110-8PP-D)

The Cisco Business 110 Series Unmanaged Switches are affordable, plug-and-play entry-level switches that provide gigabit Ethernet switching with key features like Power over Ethernet (PoE), energy efficiency, and traffic prioritization for a fast and resilient small business network.

Management features
Quality of Service (QoS) support Yes
Switch layer L2
Switch type Unmanaged
Ports & interfaces
Combo SFP ports quantity 4
Gigabit Ethernet (copper) ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 8
Network
Head-of-line (HOL) blocking Yes
Flow control support Yes
Auto MDI/MDI-X Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Half duplex Yes
Full duplex Yes
Cable types supported Cat5e
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
10G support No
Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Data transmission
Jumbo frames 9216
Jumbo frames support Yes
Forwarding rate 11.9 Mpps
Switching capacity 16 Gbit/s
MAC address table 8192 entries
Security
Loop protection Yes
Queue scheduling algorithms Weighted Round Robin (WRR)
Design
Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B
Country of origin China
Market segment Business
LED indicators Yes
Product colour Grey
Form factor Desktop
Rack mounting No
Performance
Mean time between failures (MTBF) 465437 h
Technical details
Products per shipping (inner) case 1 pc(s)
Power
Power plug type Type C
Power saving mode (EEE) Yes
DC input voltage 12 V
AC input frequency 50 Hz
AC input voltage 100 - 240 V
Power supply included Yes
Power supply location External
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 32 W
Power over Ethernet (PoE) ports quantity 4
Power over Ethernet (PoE) Yes
Operational conditions
Heat dissipation 130.34 BTU/h
Storage relative humidity (H-H) 5 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -20 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 535.24 g
Height 32 mm
Depth 160 mm
Width 129 mm
Sustainability
Sustainability compliance Yes
Sustainability certificates CE
Packaging data
Package weight 1.86 kg
Package height 75.9 mm
Package depth 389.9 mm
Package width 225 mm
Quick start guide Yes
Logistics data
Products per master (outer) case 1 pc(s)
Harmonized System (HS) code 85176990
Quantity per pack 1 pc(s)
Other features
Packaging content Switch, Power cord or adapter, Mounting hardware and Quick Start Guide
Diagnostics Cable diagnostics
