Cisco

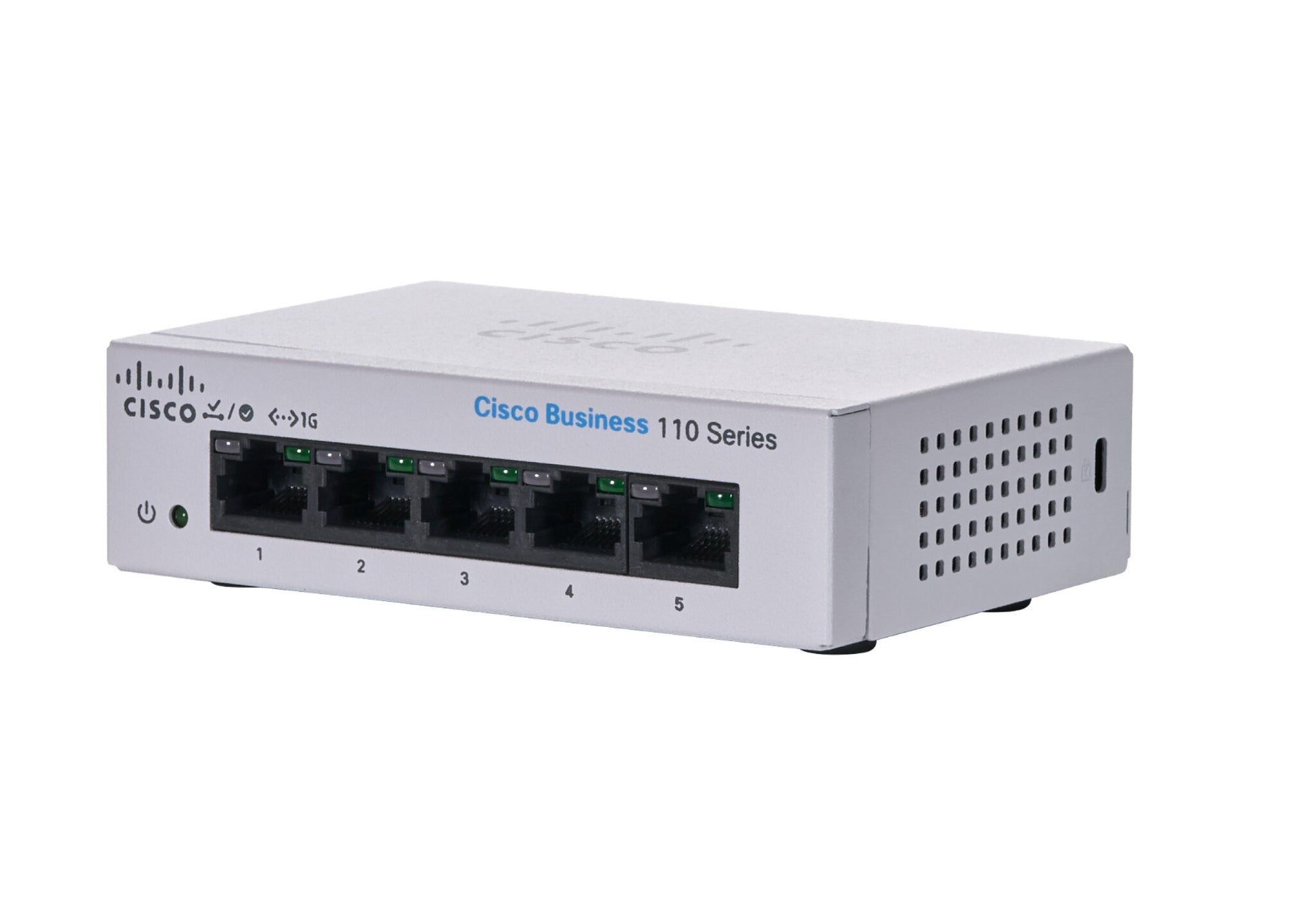

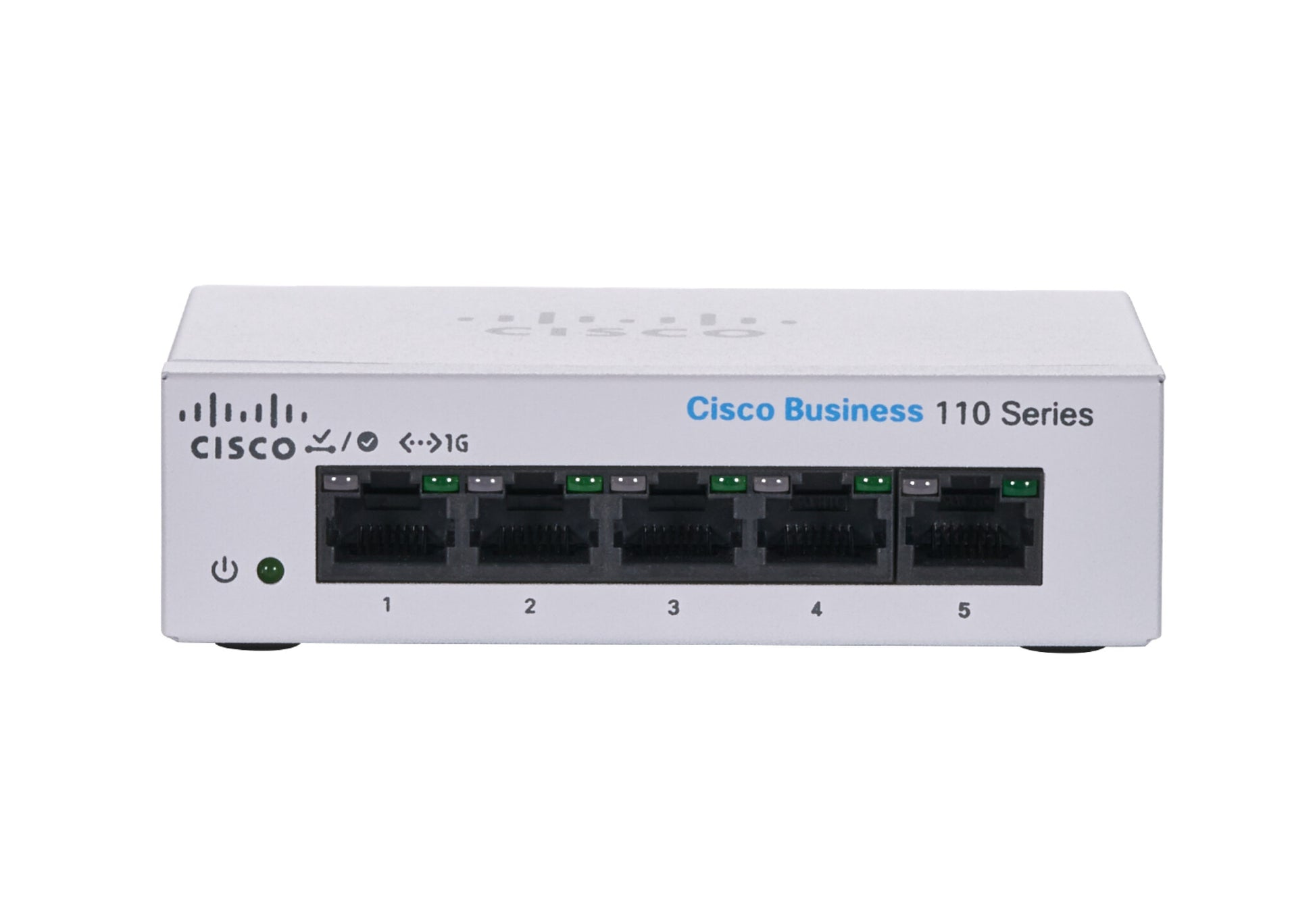

Cisco Business CBS110-5T-D Unmanaged Switch | 5 Port GE | Desktop | Ext PS | Limited Lifetime Protection (CBS110-5T-D)

Cisco Business CBS110-5T-D Unmanaged Switch | 5 Port GE | Desktop | Ext PS | Limited Lifetime Protection (CBS110-5T-D)

£34.22 GBP
£34.22 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

CBS110-5T-D-UK

32 in stock

  • SWITCH PORTS: 5 -Port 10/100/1000
  • SIMPLE: Plug-and-play without a need for IT know-how or support.
  • FLEXIBLE: Extensive portfolio provides ultimate flexibility from 5 to 24 ports and PoE combinations
  • PERFORMANCE: Gigabit Ethernet and integrated quality-of-service (QoS) intelligence optimize delay-sensitive services and improve overall network performance.
  • INNOVATIVE DESIGN: Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
  • ENERGY EFFICIENT: Optimizes power usage to lower operational cost. Compliant with IEEE802.3az Energy Efficient Ethernet. Fanless in all models
  • PEACE OF MIND: Limited-lifetime warranty with return to factory replacement and one-year technical support
Business CBS110-5T-D Unmanaged Switch | 5 Port GE | Desktop | Ext PS | Limited Lifetime Protection (CBS110-5T-D)

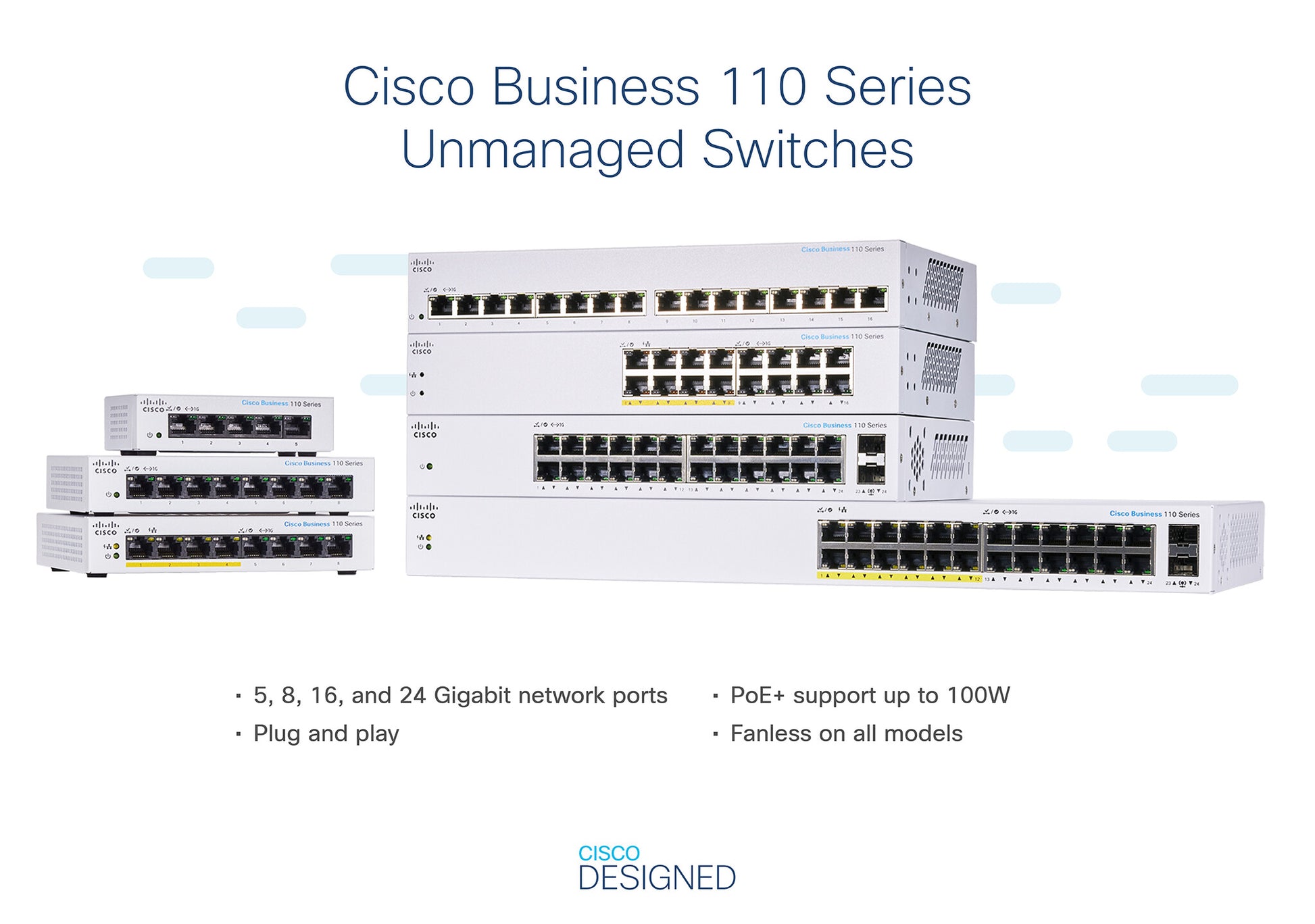

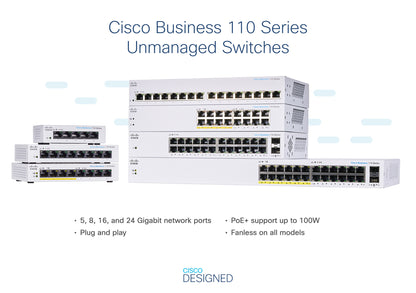

The Cisco Business 110 Series Unmanaged Switches are affordable, plug-and-play entry-level switches that provide gigabit Ethernet switching with key features like Power over Ethernet (PoE), energy efficiency, and traffic prioritization for a fast and resilient small business network.

Management features
Switch type Unmanaged
Switch layer L2
Quality of Service (QoS) support Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity 4
Network
Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support No
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Half duplex Yes
Full duplex Yes
Head-of-line (HOL) blocking Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Auto MDI/MDI-X Yes
Flow control support Yes
Data transmission
MAC address table 2048 entries
Switching capacity 10 Gbit/s
Forwarding rate 7.4 Mpps
Number of queues 4
Jumbo frames support Yes
Jumbo frames 9216
Security
Loop protection Yes
Queue scheduling algorithms Weighted Round Robin (WRR)
Design
Rack mounting No
Form factor Desktop
Product colour Grey
Market segment Business
Country of origin China
Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B
Performance
Mean time between failures (MTBF) 4243002 h
Technical details
Products per shipping (inner) case 1 pc(s)
Power
Power supply location External
Power supply included Yes
Redundant power supply (RPS) support No
Number of power supply units 1
AC input voltage 100 - 240 V
AC input frequency 50 Hz
DC input voltage 12 V
Power saving mode (EEE) Yes
Power plug type Type C
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 9.34 BTU/h
Weight & dimensions
Width 74.9 mm
Depth 110 mm
Height 30 mm
Weight 240 g
Packaging data
Quick start guide Yes
Package width 144.8 mm
Package depth 222 mm
Package height 55.9 mm
Package weight 440 g
Logistics data
Quantity per pack 1 pc(s)
Harmonized System (HS) code 85176990
Products per master (outer) case 1 pc(s)
Other features
Diagnostics Cable diagnostics
Packaging content Switch, Power cord or adapter, Mounting hardware and Quick Start Guide
