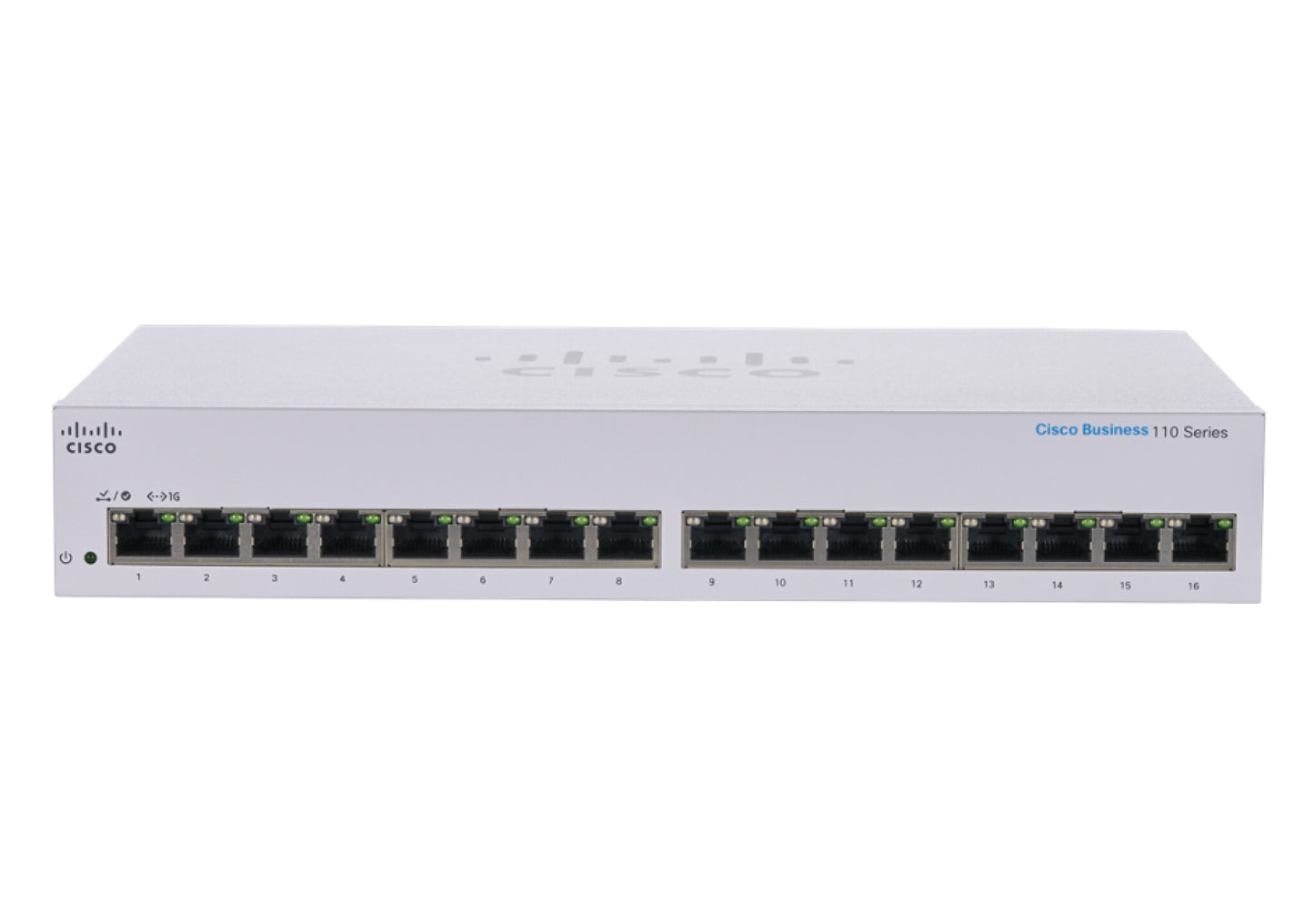

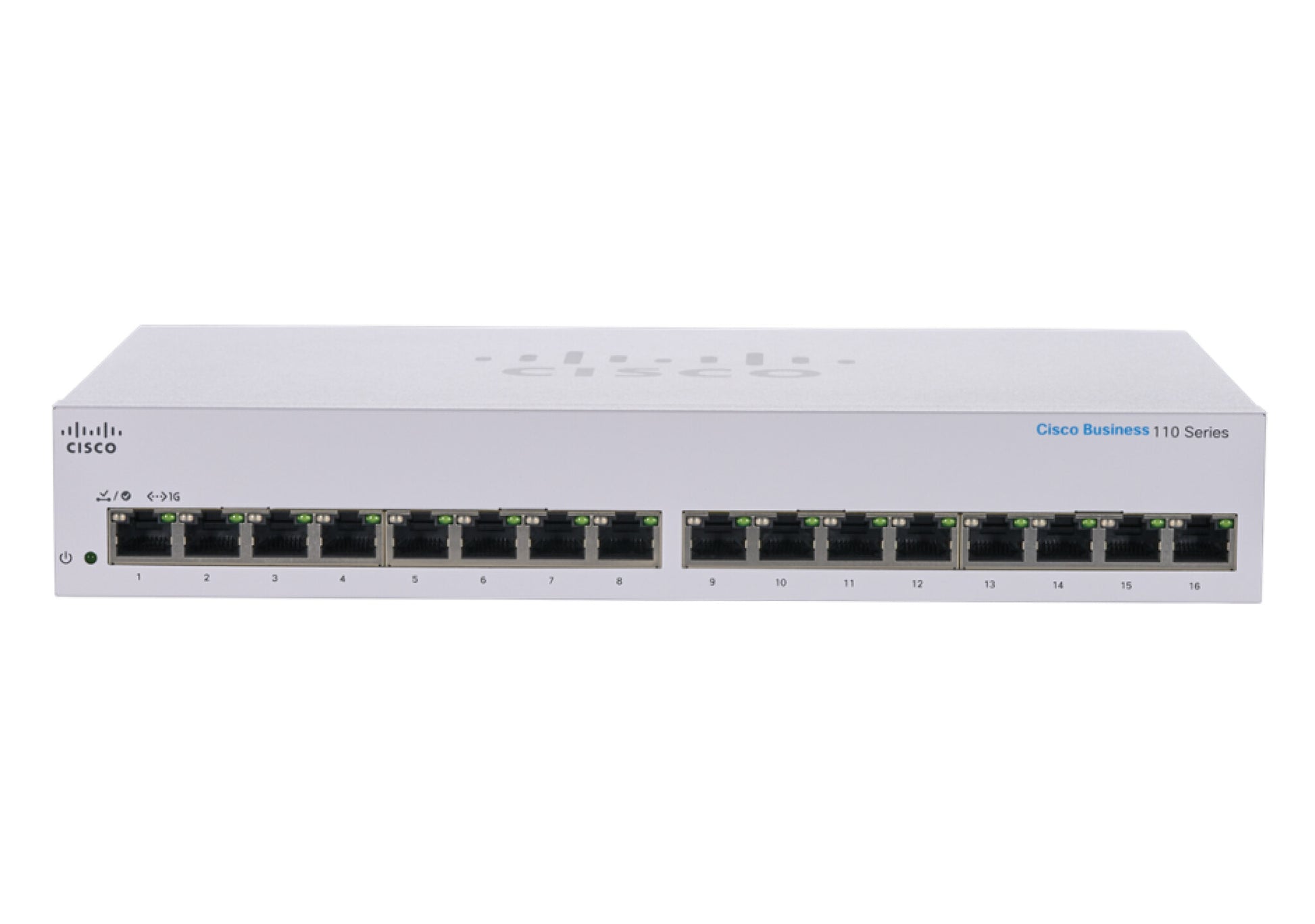

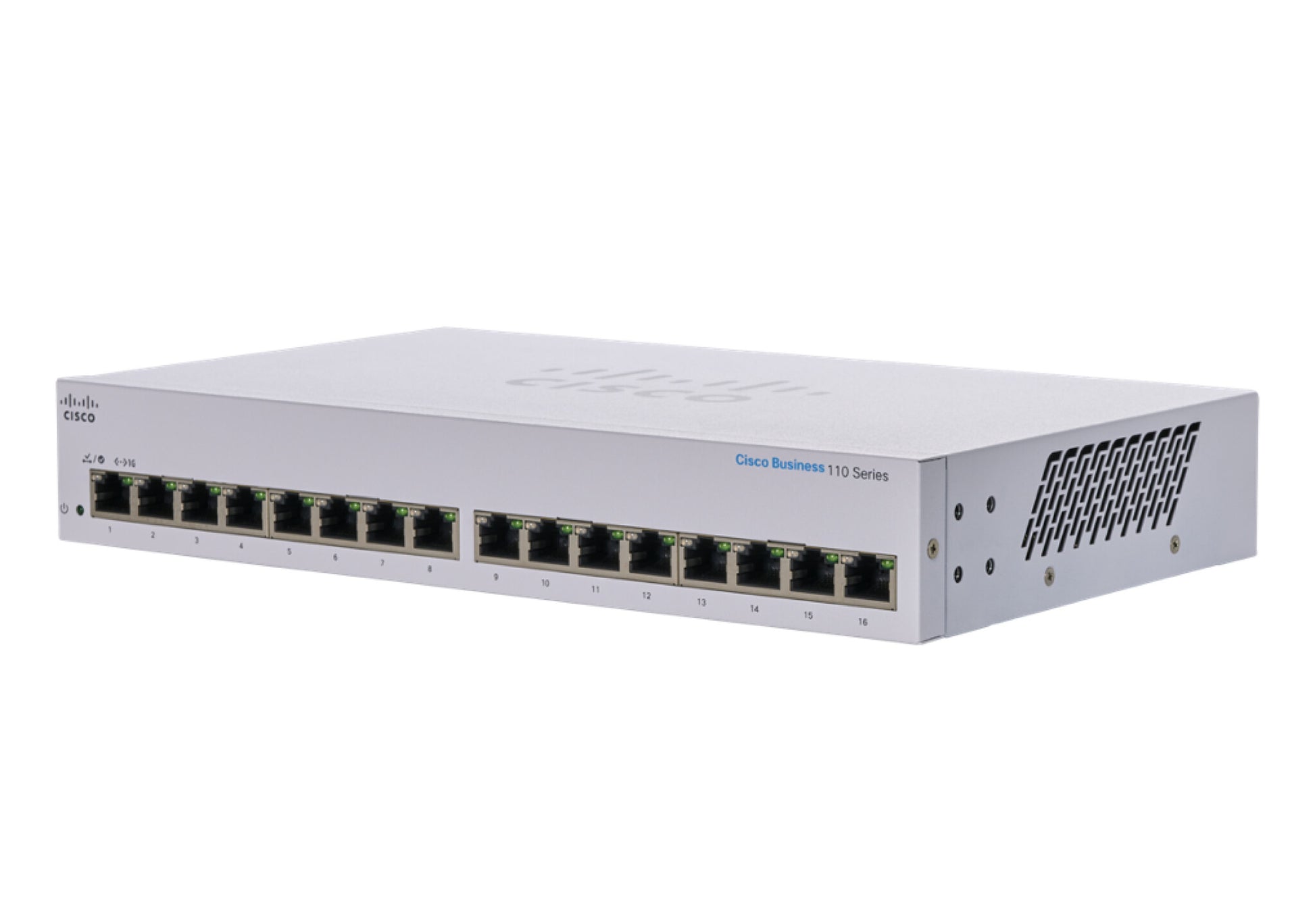

Cisco Business CBS110-16T-D Unmanaged Switch | 16 Port GE | Limited Lifetime Protection (CBS110-16T-D)

Cisco Business CBS110-16T-D Unmanaged Switch | 16 Port GE | Limited Lifetime Protection (CBS110-16T-D)

£108.58 GBP
£108.58 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

CBS110-16T-UK

Low stock: 10 left

  • SWITCH PORTS: 16 -Port 10/100/1000
  • SIMPLE: Plug-and-play without a need for IT know-how or support.

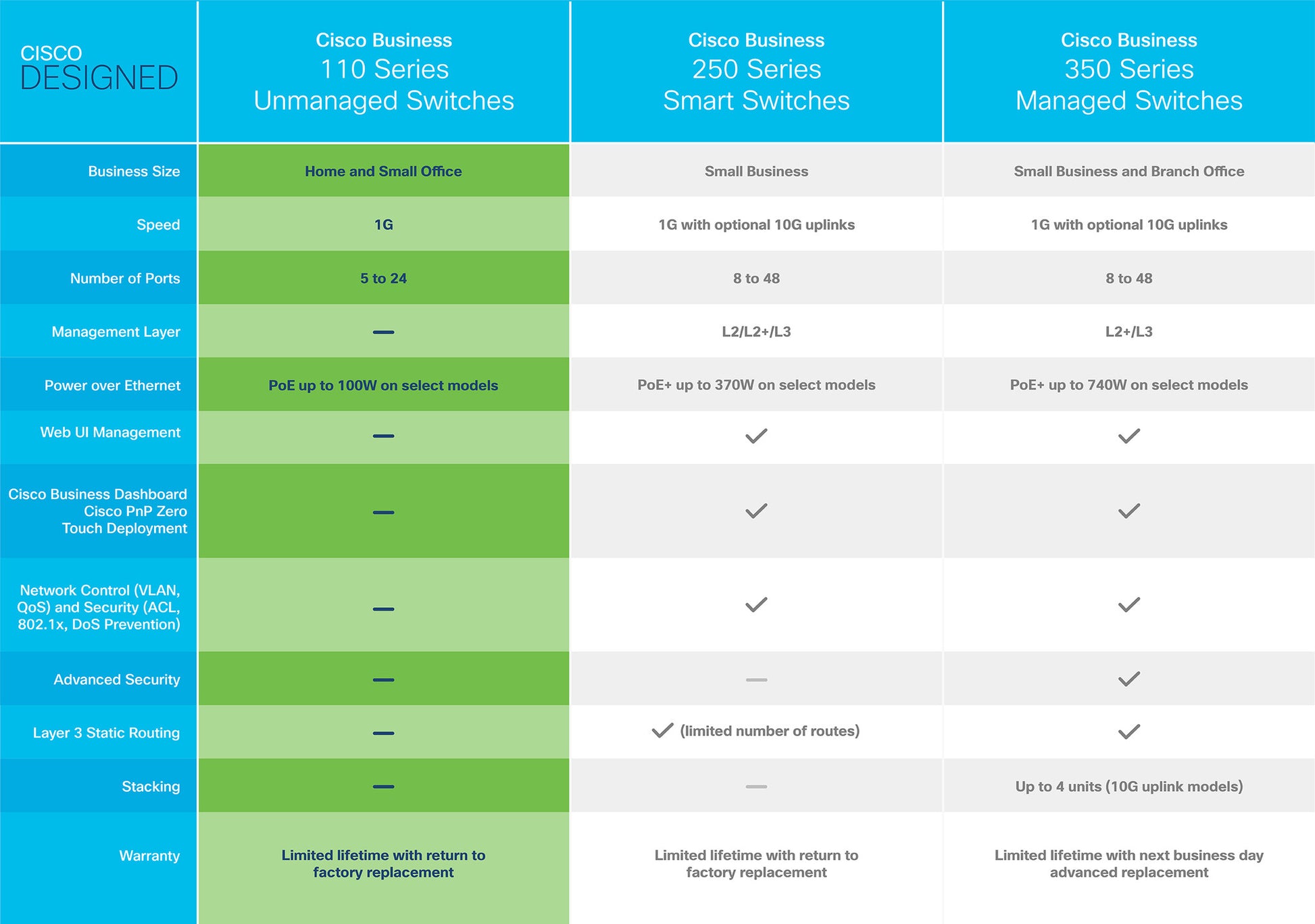

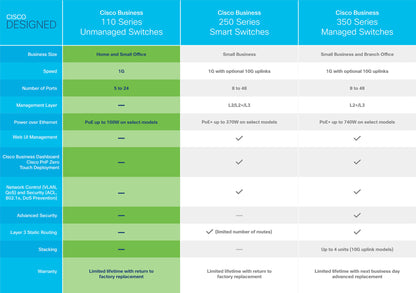

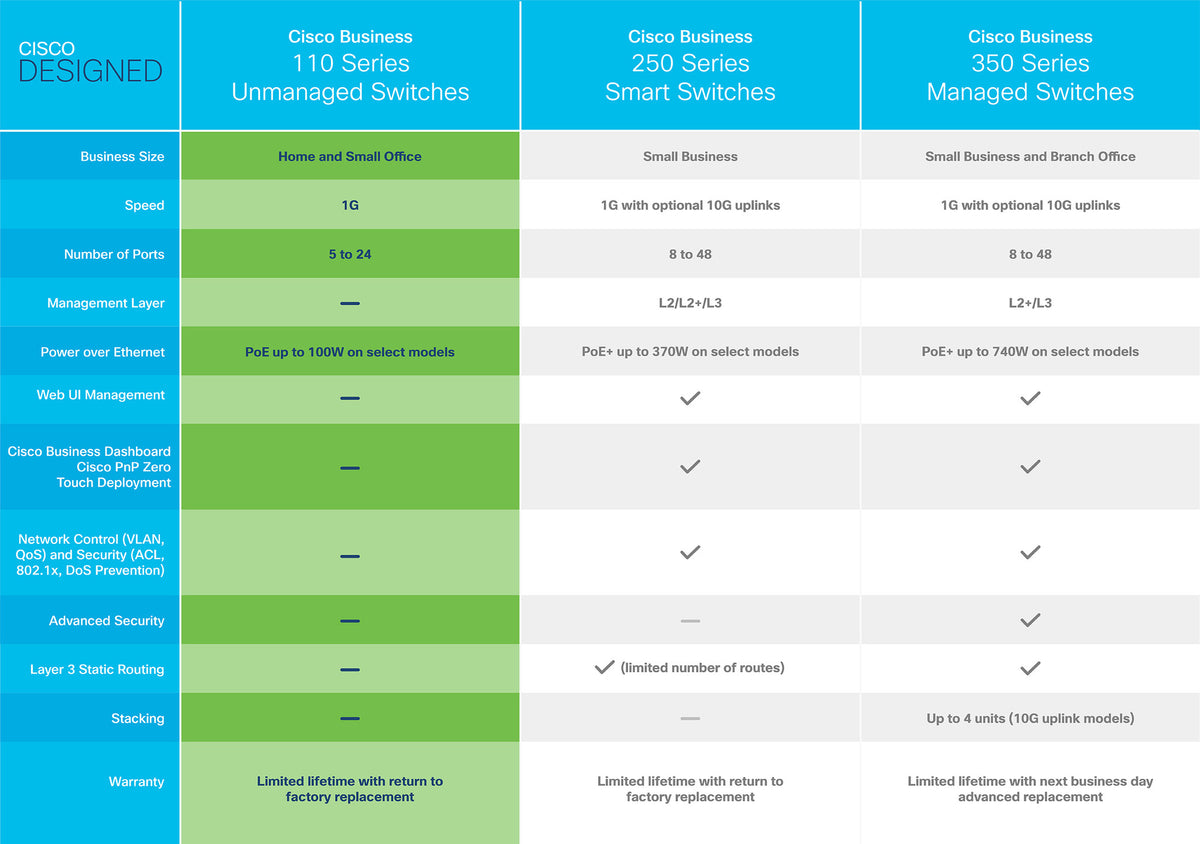

  • FLEXIBLE: Extensive portfolio provides ultimate flexibility from 5 to 24 ports and PoE combinations
  • PERFORMANCE: Gigabit Ethernet and integrated quality-of-service (QoS) intelligence optimize delay-sensitive services and improve overall network performance.
  • INNOVATIVE DESIGN: Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
  • ENERGY EFFICIENT: Optimizes power usage to lower operational cost. Compliant with IEEE802.3az Energy Efficient Ethernet. Fanless in all models
  • PEACE OF MIND: Limited-lifetime warranty with return to factory replacement and one-year technical support
Business CBS110-16T-D Unmanaged Switch | 16 Port GE | Limited Lifetime Protection (CBS110-16T-D)

The Cisco Business 110 Series Unmanaged Switches are affordable, plug-and-play entry-level switches that provide gigabit Ethernet switching with key features like Power over Ethernet (PoE), energy efficiency, and traffic prioritization for a fast and resilient small business network.

Management features
Switch type Unmanaged
Switch layer L2
Quality of Service (QoS) support Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 16
Combo SFP ports quantity 4
Network
Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support No
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported Cat5e
Half duplex Yes
Full duplex Yes
Head-of-line (HOL) blocking Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Auto MDI/MDI-X Yes
Flow control support Yes
Data transmission
MAC address table 8192 entries
Switching capacity 32 Gbit/s
Forwarding rate 23.8 Mpps
Number of queues 4
Jumbo frames support Yes
Jumbo frames 9216
Security
Loop protection Yes
Queue scheduling algorithms Weighted Round Robin (WRR)
Design
Rack mounting Yes
Form factor Desktop
Product colour Grey
LED indicators Yes
Market segment Business
Country of origin China
Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B
Performance
Built-in processor Yes
Processor frequency 400 MHz
Internal memory 128 MB
Flash memory 16 MB
Mean time between failures (MTBF) 2685092 h
Technical details
Products per shipping (inner) case 1 pc(s)
Power
Power supply location Internal
Power supply included Yes
Redundant power supply (RPS) support No
Number of power supply units 1
AC input voltage 100 - 240 V
AC input frequency 50 Hz
Power saving mode (EEE) Yes
Power plug type Type C
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 39.34 BTU/h
Weight & dimensions
Width 169.9 mm
Depth 279.4 mm
Height 44.5 mm
Weight 990 g
Packaging data
Quick start guide Yes
Rack mount kit Yes
Package width 297.9 mm
Package depth 454.9 mm
Package height 82 mm
Package weight 1.89 kg
Logistics data
Quantity per pack 1 pc(s)
Harmonized System (HS) code 85176990
Products per master (outer) case 1 pc(s)
Other features
Diagnostics Cable diagnostics
Packaging content Switch, Power cord or adapter, Mounting hardware and Quick Start Guide
