Cisco

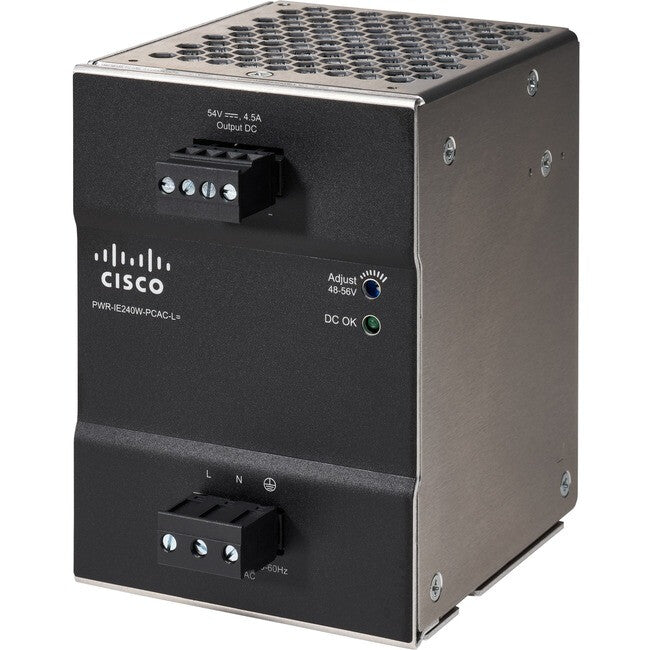

Cisco 240W AC P/S LITE network switch component Power supply

Cisco 240W AC P/S LITE network switch component Power supply

£1,226.84 GBP
£1,226.84 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

PWR-IE240W-PCAC-L=

Low stock: 7 left

  • Power supply
  • Internal
  • 240 W
  • Black
240W AC to DC power supply

The Cisco industrial din-rail power supplies offer a variety of rugged, reliable, and compact AC and DC power supply options to power Cisco’s industrial Ethernet switches, industrial routers (including industrial gateways), and industrial computing products. Some key features include:
- Power supply options from 50W to 480W
- Operating temperatures ranging between -40°C and +85°C
- Din-rail mountable options
- Enablement of high capacity Power over Ethernet (PoE)
- Conformal coating options

Features
Certification SIQ Bauart to EN 60950-1UL/cUL UL 60950-1 / CSA C22.2 No. 60950-1 UL/cUL UL 62368-1 / CSA C22.2 No. 62368-1 CB IEC 60950-1UL 508 /CSA C22.2 No. 107.1-01 (File No. E315355)CSA C22.2 No. 107.1-01 (File No. 181564)EN 61000-3-2 A, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2,EN 61204-3, EN 55024 (EN 61000-4-2 LEVEL 3, EN 61000-4-3,4,5,6,8,11,12 LEVEL 3, ACISPR 32, EN 55032, CISPR 11, EN 55011,FCC Title 47: Class A
Safety IP20
Mean time between failures (MTBF) 1058750 h
Internal Yes
Product colour Black
Product type Power supply
Power
DC output voltage 54 V
Inrush current 35 A
Maximum current 3.5 A
AC input frequency 50 / 60 Hz
AC input voltage 90 - 264 V
Total power 240 W
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -40 - 85 °C
Operating temperature (T-T) -40 - 80 °C
Weight & dimensions
Weight 960 g
Height 124.1 mm
Depth 121 mm
Width 85 mm
Logistics data
Harmonized System (HS) code 85177900
