Cisco

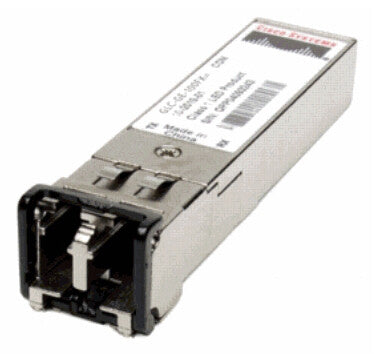

Cisco 10GBASE-SR S-Class SFP Module for 10 Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-SR-S=)

Cisco 10GBASE-SR S-Class SFP Module for 10 Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-SR-S=)

Regular price £268.39 GBP
Regular price Sale price £268.39 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:SFP-10G-SR-S

45 in stock

  • LINK LENGTH: Supports link lengths of 26 m on standard FDDI-grade multimode fiber; up to 300 m link lengths possible using OM3 and 400 m using OM4 (this model does not support Fiber Channel over Ethernet [FCoE])
  • COMPACT: Industry-smallest 10G form factor for greatest density per chassis
  • HOT SWAPPABLE: Plugs into an Ethernet SFP+ port of a Cisco switch with no need to shut down if installing or replacing
  • VERSATILITY: SFP receiver/transceiver module supports ‘pay-as-you-populate’ model for investment protection and ease of technology migration
  • PEACE OF MIND: 5-year standard replacement warranty
10GBASE-SR SFP+ transceiver module for MMF, 850-nm wavelength, LC duplex connector, RF

Cisco offers a comprehensive range of pluggable optical modules for the Cisco ONS family of multiservice platforms. The wide variety of modules gives you flexible and cost-effective options for all types of client interfaces. Cisco offers a range of GBICs for Gigabit Ethernet use, a wide variety of SFP modules, XFP modules and has recently introduced SFP+, CXP and CFP pluggable modules. These small, modular optical interface transceivers offer a convenient and cost-effective solution for an array of applications in the data center, campus, metropolitan-area access and ring network, storage area network, and long-haul network.

Performance
SFP transceiver type Fiber optic
Maximum data transfer rate 10000 Mbit/s
Interface type SFP+
Multi-mode fiber (MMF) supported Yes
Fiber optic connector LC
SFP transceiver standard SR
Wavelength 850 nm
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u
Duplex system Full
Auto MDI/MDI-X Yes
Features
Hot-Plug support Yes
Country of origin China
Certification MSA
Operational conditions
Operating temperature (T-T) -40 - 85 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Weight & dimensions
Width 13.4 mm
Depth 56.5 mm
Height 8.5 mm
Packaging data
Package width 143 mm
Package depth 158.8 mm
Package height 44.5 mm
Package weight 90.7 g
Logistics data
Quantity per pack 1 pc(s)
Harmonized System (HS) code 85369010
