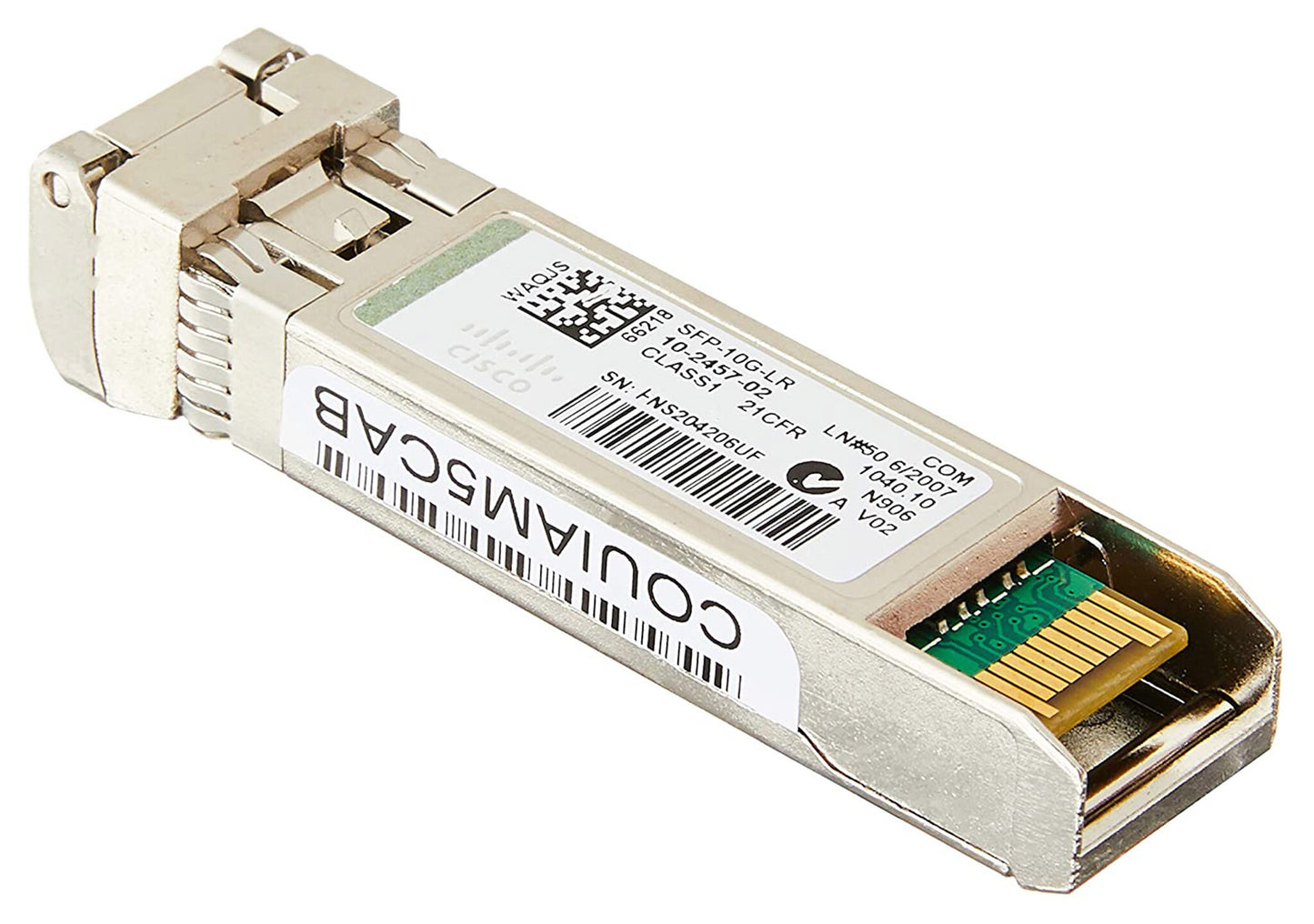

Cisco 10GBASE-LR SFP Module for 10-Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-LR=)

10GBASE-LR SFP Module for 10-Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-LR=)

---

The Cisco 10GBASE-LR SFP Module delivers a wide variety of 10-Gigabit Ethernet connectivity options for data centre, enterprise and service provider applications over single-mode fibre. This hot-swappable input/output transceiver plugs into an Ethernet SFP+ port of a Cisco switch and offers optical interoperability with 10GBASE XENPAK, 10GBASE X2 and 10GBASE XFP interfaces on the same link.

---

Ports & interfaces
Connectivity technology	Wired

Performance
Wavelength	1310 nm
Maximum transfer distance	10000 m

Design
Country of origin	China

Power
Power consumption (typical)	1 W

Management features
Hot-swap	Yes

Weight & dimensions
Weight	75 g
Height	8.5 mm
Depth	56.5 mm
Width	13.4 mm

Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 70 °C

Packaging data
Package weight	90.7 g
Package height	44.5 mm
Package depth	158.8 mm
Package width	143 mm

Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990

Other features
Fiber type	SMF
Interface	SFP
