Cisco 1000BASE-LX/LH network transceiver module 1000 Mbit/s 1310 nm
Cisco 1000BASE-LX/LH network transceiver module 1000 Mbit/s 1310 nm
SKU:GLC-LX-SM-RGD=
76 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

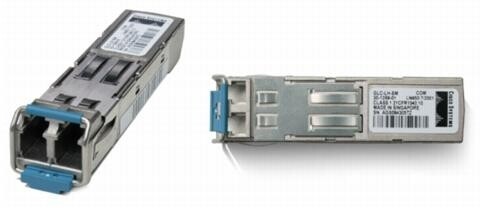

The industry-standard Cisco® Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network (Figure 1). SFPs can be used and interchanged on a wide variety of Cisco products and can be intermixed in combinations of 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.
1000BASE-LX/LH SFP for Both Multimode and Single-Mode Fibers
The 100BASE-LX/LH SFP, compatible with the IEEE 802.3z 1000BASE-LX standard, operates on standard single-mode fiber-optic link spans of up to 10 km and up to 550 m on any multimode fibers.
| Performance | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Fiber optic connector | LC, PC |
| Maximum transfer distance | 10000 m |
| Maximum transfer distance (Single-mode) | 10000 m |
| Maximum transfer distance (Multi-mode) | 550 m |
| Wavelength | 1310 nm |
| Cabling technology | 100BASE-LX/LH |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
|---|---|
| Weight | 75 g |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85369010 |
| Other features | |
|---|---|
| Transmit power range | -3 - -9.5 dBmW |
| Dimensions (WxDxH) | 13.4 x 56.5 x 8.5 mm |
