Automatically scan up to 40 photos in one batch with Easy Scan and speeds of up to 30 ppm
Intuitive user interface has three pre-set scanning options for hassle-free scanning every time
Clever ultrasonic sensors and Double Feed Release (DFR) detect overlapping pages and restart your system quickly in the event of a jam
Compatible with Windows and Mac OS
Advanced image processing functions including Auto Photo Fix, Red Eye Correction, Digital Face Smoothing and Fading Correction
Installation and setup have never been easier with Canon’s integrated installer and easy-to-follow walk-through video
The energy-efficient device uses just 19 W while scanning, 0.1 W in sleep mode and 0.3 W when powered off
600 dpi, RGB LED, 30 pages/min, 19 W, AC 100-240 V (50/60 Hz), USB 2.0, 291 x 250 x 245 mm , 3000 g

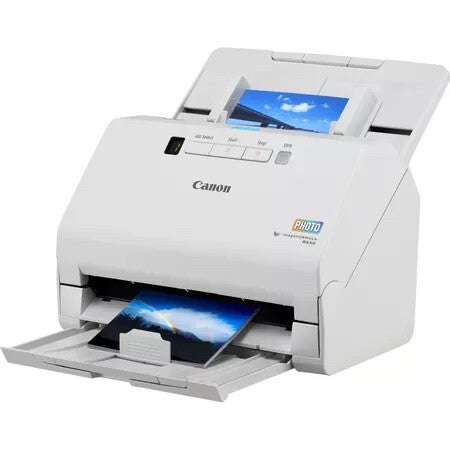

Re-live your precious memories and give your photographs a new lease of life. Enhance old and new photos with the RS40’s enhanced image processing and share your ‘Shoe Box’ photos with family and friends in just a few clicks. With advanced image processing, you can brighten image colour, sharpen focus and correct colour distortion, to achieve optimum detail even where images have faded over time. This easy-to-use, compact device allows you to scan up to 40 photos in one go, with pre-set scanning options for added ease and consistency.
Scanning
Optical scanning resolution
600 x 600 DPI
Colour scanning
Yes
Duplex scanning
Yes
ADF scan speed (b/w, A4)
40 ppm
ADF scan speed (colour, A4)
30 ppm
Black/white scanning colour modes
Grayscale, Monochrome
Design
Scanner type
Sheet-fed scanner
Built-in display
Yes
Product colour
White
Performance
Sensor type
CMOS CIS
Light source
RGB LED
Ultrasonic double sheet detection
Yes
Scan drivers
TWAIN
Input capacity
Standard input capacity
40 sheets
Auto document feeder (ADF) input capacity
60 sheets
Paper handling
Long-paper mode
Yes
Media thickness (min)
0.04 mm
Card thickness (max)
1.4 mm
Maximum scan width
21.6 cm
Maximum scan length
3 m
Ports & interfaces
USB port
Yes
USB version
2.0
Power
Power consumption (typical)
19 W
Power supply type
AC
Power consumption (off)
0.1 W
AC input frequency
50 - 60 Hz
Input voltage
100 - 240 V
Power consumption (sleep)
1.4 W
Packaging data
Quantity per pack
1 pc(s)
System requirements
Mac operating systems supported
Yes
Windows operating systems supported
Windows 10, Windows 11, Windows 8.1
Weight & dimensions
Width
291 mm
Depth
600 mm
Height
382 mm
Weight
3 kg
Folded width
29.1 cm
Folded depth
25 cm
Folded height
24.5 cm
Packaging content
Cables included
AC, USB
Bundled software
TWAIN driver, CaptureOnTouch, Microsoft Windows 8.1 (32/64-bit)Microsoft Windows 10 (32/64-bit)Microsoft Windows 11macOS 10,15macOS 11macOS 12
