Maximum scan size: 216 x 3000 mm Sensor type: CMOS CIS
USB port
Power supply type: AC 27 W
CMOS CIS, 600 dpi, RGB LED, 60ppm, USB 2.0, RoHS, Energy Star
Productive, ultra-compact scanner ideal for reliable paper-intensive scanning.

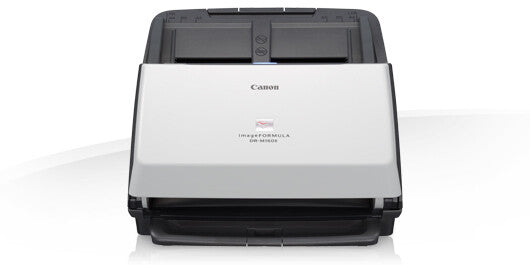

The imageFORMULA DR-M160II is a productivity-boosting desktop scanner. With a robust design, fast speed and reliable media handling, it is ideal for paper-intensive scanning.
Benefits
- Class-leading colour scanning speeds of up to 120ipm - Robust design to handle up to 7,000 scans/day - Windows, Mac and Linux compatible - Compactly built and highly productive - Supreme paper-handling reliability includes paper separation retry
Scanning
Maximum scan size
216 x 3000 mm
Optical scanning resolution
600 x 600 DPI
Colour scanning
Yes
Duplex scanning
Yes
Output colour depth
24 bit
Output greyscale depth
8 bit
Film scanning
No
Greyscale levels
256
ADF scan speed (b/w, A4)
60 ppm
ADF scan speed (colour, A4)
60 ppm
Duplex ADF scan speed (colour, A4)
120 ipm
Duplex ADF scan speed (b/w, A4)
120 ipm
Black/white scanning colour modes
Grayscale
Design
Scanner type
Sheet-fed scanner
Built-in display
No
Product colour
Black
Performance
Sensor type
CMOS CIS
Light source
RGB LED
Daily duty cycle (max)
7000 pages
Scan drivers
ISIS, TWAIN
Input capacity
Standard input capacity
60 sheets
Paper handling
Maximum ISO A-series paper size
A4
Ports & interfaces
USB port
Yes
USB version
2.0
Standard interfaces
USB 2.0
Power
Power consumption (typical)
27 W
Power supply type
AC
Power consumption (standby)
1.8 W
Power consumption (off)
0.5 W
AC input frequency
50 - 60 Hz
Input voltage
100-240 V
general_information_attribute_container_name
attribute_product_family_name
imageFORMULA
System requirements
Mac operating systems supported
Yes
Windows operating systems supported
Yes
Weight & dimensions
Width
280 mm
Depth
606 mm
Height
366.4 mm
Weight
3.2 kg
Packaging content
Drivers included
Yes
Bundled software
CapturePerfectCaptureOnToucheCopy PDF Pro OfficeKofax VRS (with AIPE)Plug-in: EMC Captiva Cloud Runtime Controls
