Cambium Networks

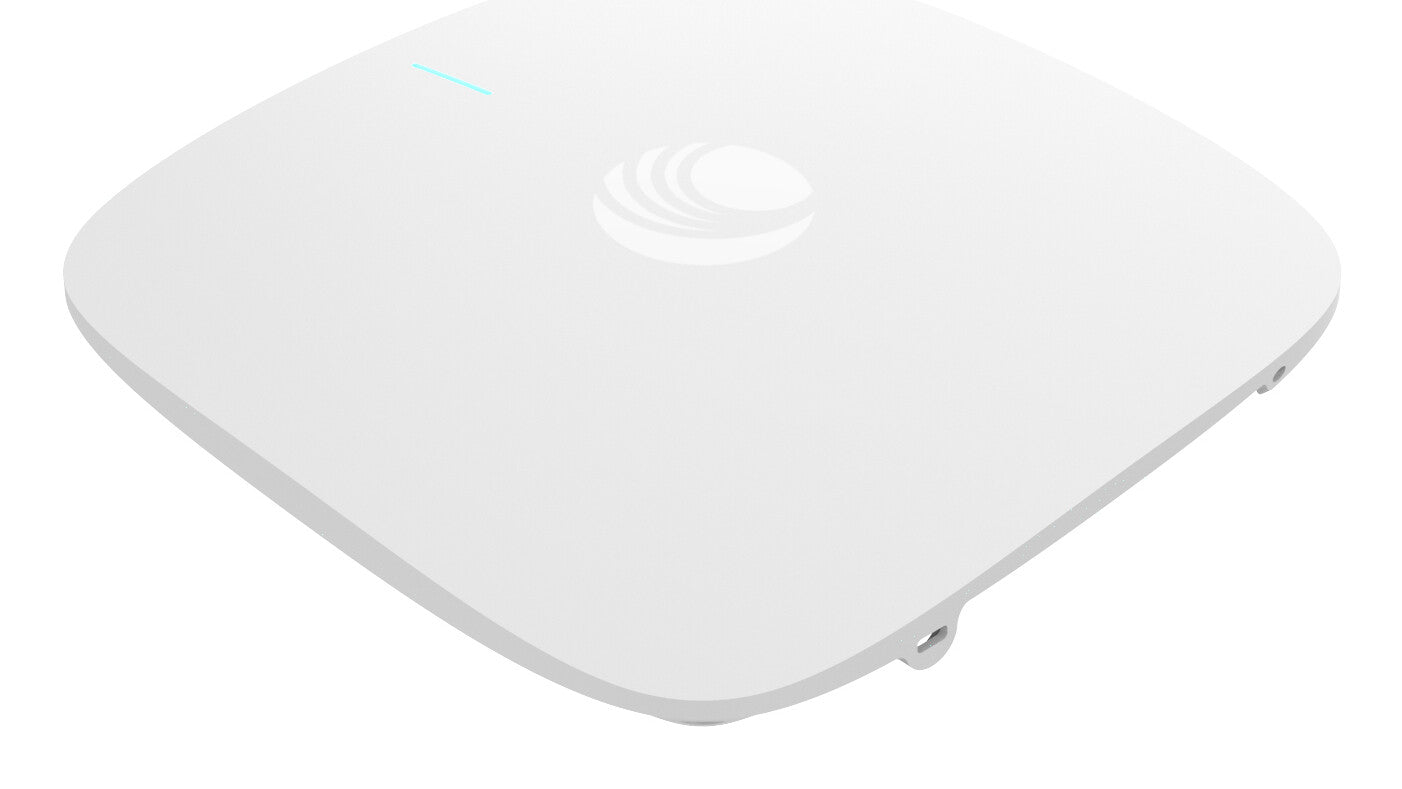

Cambium Networks XE3-4 4804 Mbit/s White

Cambium Networks XE3-4 4804 Mbit/s White

Regular price £1,010.34 GBP
Regular price Sale price £1,010.34 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:XE3-4X00A00-EU

Low stock: 3 left

  • 2.4 GHz 287 Mbit/s
  • 5 GHz 1201 Mbit/s
  • Maximum data transfer rate: 4804 Mbit/s
  • IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11s, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.3ab, IEEE 802.3at
  • 802.1x RADIUS, EAP, EAP-AKA, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, WEP, WPA-TKIP, WPA2, WPA2-AES, WPA2-CCMP, WPA2-Enterprise, WPA3, WPA3-SAE
2.4-6 Ghz, 4.804 Gbit/s, 1500 WLAN Clients, 2xRJ-45, 22W

Enterprise grade software-defined access point

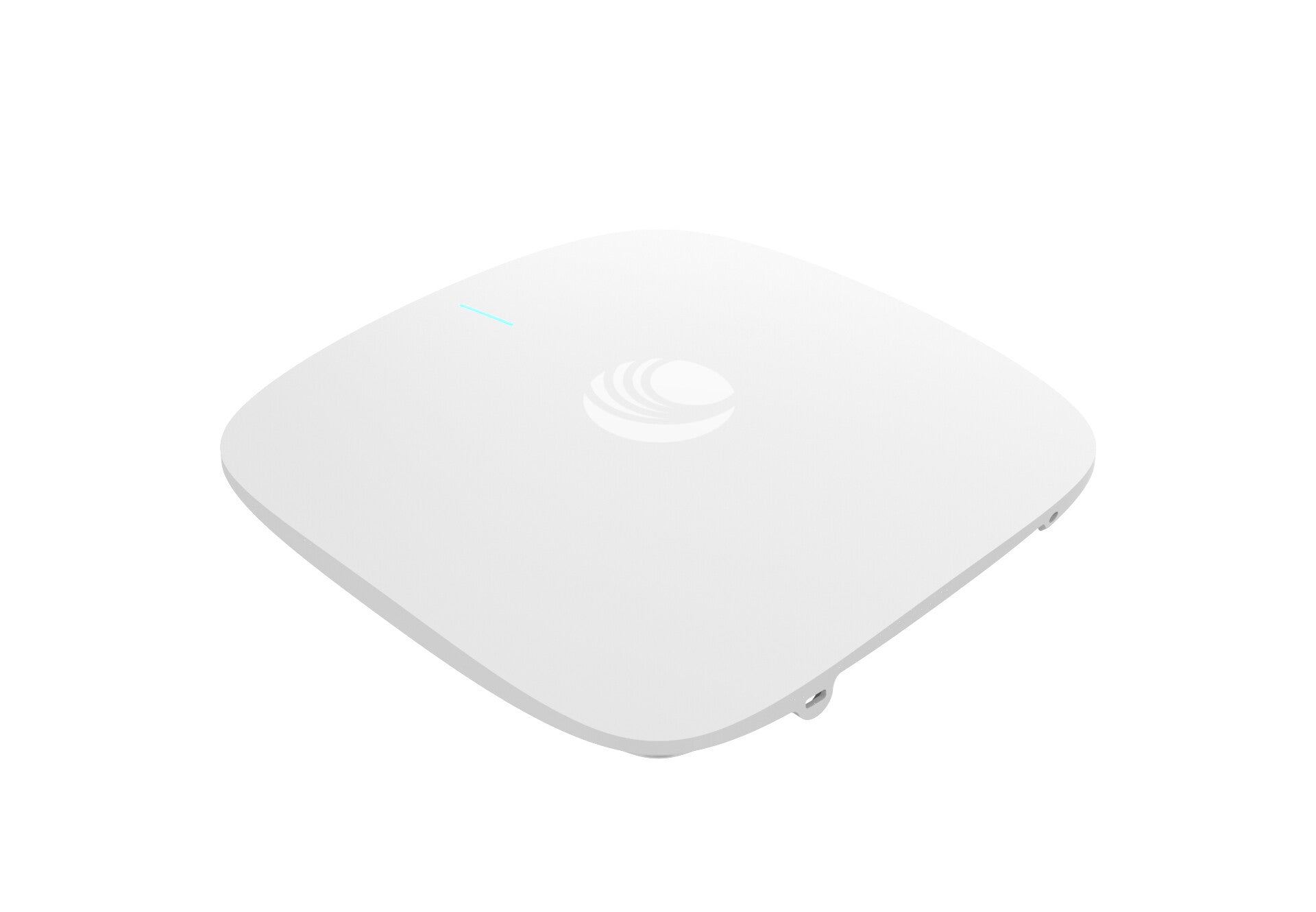

The XE3-4 is a tri-radio Wi-Fi 6/6E 4×4/2×2 access point (AP) designed to deliver future-proof performance and value for building next generation networks. Wi-Fi 6 delivers faster and more efficient wireless network connections than previous generation Wi-Fi technologies.

Designed for High Density and Edge Services

Wi-Fi 6E extends the capacity
of Wi-Fi into the 6 GHz band, more than tripling the wireless spectrum available. With a high speed software-defined radio, the XE3-4 enables seamless transition to Wi-Fi 6E with the ability to easily change from dual-band to tri-band (2.4 GHz, 5 GHz, 6 GHz) mode when sufficient 6 GHz clients are available. The XE3-4 is fully backward compatible with existing Wi-Fi technology, enabling simultaneous support of new high speed clients, legacy clients, low-bitrate IoT devices, and more in a single wireless infrastructure.

Cloud and On-Premises Management

XE3-4 operates with either Cambium Networks’ XMS or cnMaestroTM management system. Choose the management system that best fits your business and use the latest technology from Cambium Networks.

Features
Quality of Service (QoS) support Yes
Maximal-Ratio Combining (MRC) Yes
Band steering Yes
VLAN support Yes
Number of WLAN connections (max) 1500
Fast roaming Yes
Fit AP mode features Hotspot 2.0
Modulation 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM, BPSK, CCK, DSSS, QPSK
Spread spectrum method OFDM, OFDMA
MIMO type Multi User MIMO
MIMO Yes
Automatic channel selection Yes
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11s, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.3ab, IEEE 802.3at
Frequency band 2.4 - 6 GHz
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
Maximum data transfer rate (5 GHz) 1201 Mbit/s
Maximum data transfer rate (2.4 GHz) 287 Mbit/s
Maximum data transfer rate 4804 Mbit/s
5 GHz Yes
2.4 GHz Yes
Security
Remote Authentication Dial-In User Service (RADIUS) Yes
Number of SSID supported 16
Security algorithms 802.1x RADIUS, EAP, EAP-AKA, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, WEP, WPA-TKIP, WPA2, WPA2-AES, WPA2-CCMP, WPA2-Enterprise, WPA3, WPA3-SAE
Protocols
DHCP server Yes
Management features
Syslog Yes
Ports & interfaces
USB connector type USB Type-A
USB 2.0 ports quantity 1
Ethernet LAN (RJ-45) ports 2
Power
Power consumption (typical) 22 W
Design
Certification FCC, IC, CE, EN 60601-1-2, EN 60950-1, IEC 62368-1 Safety, EN 60601-1-2 Medical EMC, EN 61000-4-2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway EMC, IEC 61373 Railway Shock & Vibration, UL 2043 Plenum, EN 62311 Human Safety/RF Exposure, WEEE & RoHS
LED indicators Yes
Reset button Yes
Cable lock slot type Kensington
Cable lock slot Yes
Product colour White
Placement Ceiling, Wall
Antenna
Antenna gain level (max) 6.29 dBi
Weight & dimensions
Weight 900 g
Height 42 mm
Depth 215 mm
Width 215 mm
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Operating relative humidity (H-H) 0 - 95%
Logistics data
Harmonized System (HS) code 85176990
