Cambium Networks

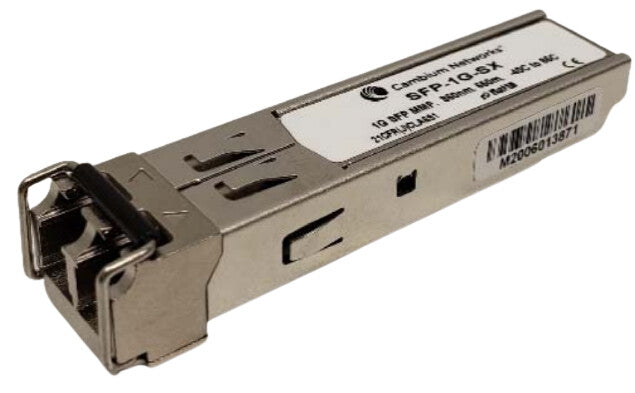

Cambium Networks SFP-1G-SX network transceiver module Fiber optic 1000 Mbit/s 850 nm
Cambium Networks SFP-1G-SX network transceiver module Fiber optic 1000 Mbit/s 850 nm
Regular price
£39.86 GBP
Regular price
Sale price
£39.86 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:SFP-1G-SX
Low stock: 1 left
1Gbps SFP MMF Optical Transceiver, 850nm, 550m
This SFP transceiver is a high performance, cost effective modules supporting data-rate of 1.25Gbps and 550m transmission distance with MMF.
The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
| Performance | |
|---|---|
| Digital Diagnostics Monitoring (DDM) | Yes |
| Wavelength | 850 nm |
| Maximum transfer distance | 550 m |
| Multi-mode fiber (MMF) supported | Yes |
| Interface type | SFP |
| Maximum data transfer rate | 1000 Mbit/s |
| SFP transceiver type | Fiber optic |
| Power | |
|---|---|
| Maximum voltage | 3.3 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85369010 |
