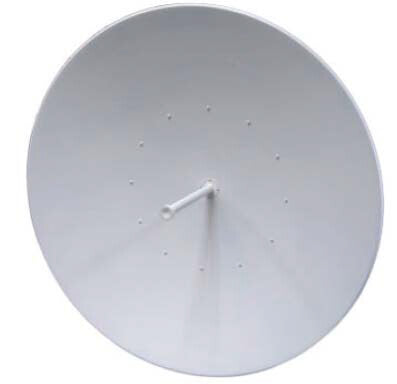

Cambium Networks RDH4503B network antenna Parabolic antenna N-type 29.5 dBi
Cambium Networks RDH4503B network antenna Parabolic antenna N-type 29.5 dBi
SKU:RDH4503B
Regular price
£194.23 GBP£161.86 GBP
Regular price
£0.00 GBP
Sale price
£194.23 GBP£161.86 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Low stock: 6 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Fully Preassembled at the factory – simplifies installation on site and guarantees “factory tested” quality
0.6 m, N Female, 5.25 - 5.85 GHz, 1.5:1 VSWR, White
| Performance | |
|---|---|
| Horizontal beam width | 6.2° |
| Vertical beam width | 6.2° |
| Frequency band | 5.25 - 5.85 GHz |
| Antenna gain level (max) | 29.5 dBi |
| Features | |
|---|---|
| Product colour | White |
| Mounting pipe | 50.8 - 114 mm |
| Front to back ratio | 38 dB |
| Maximum cable loss with connectors | -14 dB |
| Survival wind speed | 125 km/h |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Polarization | Dual polarization |
| Antenna connector type | N-type |
| Connector gender | Female |
| Antenna type | Parabolic antenna |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Package weight | 11.3 kg |
| Package height | 710 mm |
| Package depth | 710 mm |
| Package width | 200 mm |
| Weight | 9.9 kg |
| Diameter | 60 cm |
