Cambium Networks
Regular price
£2,361.71 GBP
Regular price
Sale price
£2,361.71 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:MXEX2052GXPA00
Low stock: 5 left
- Easy and simple, free cloud (or on premise) management with cnMaestro™ or XMS*
- Zero-touch deployment of switches makes installation easy
- Policy Based Automation eliminates manual and time consuming configuration
- Enhanced Security with automated device profiling and segmentation
- Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
- Unified Wired-Wireless access solution
176 Gbps, 48 x RJ-45, 4 SFP+, Flash 128 MB, DRAM 512 MB, CPU 800 MHz, 1U

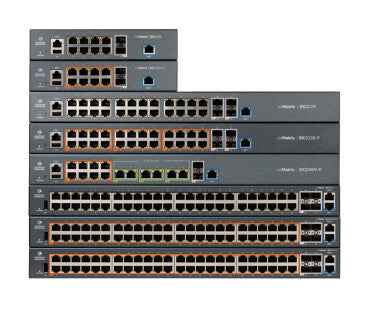

Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.
| Management features |
|---|
| Quality of Service (QoS) support |
Yes |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Network |
|---|
| Number of VLANs |
4000 |
| Auto MDI/MDI-X |
Yes |
| Broadcast storm control |
Yes |
| Policy-based routing |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.1Q, IEEE 802.1s, IEEE 802.1x |
| Data transmission |
|---|
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Throughput |
176 Mpps |
| MAC address table |
16000 entries |
| Security |
|---|
| Password protection |
Yes |
| BPDU filtering/protection |
Yes |
| SSH/SSL support |
Yes |
| IGMP proxy |
Yes |
| Access Control List (ACL) egress |
128 |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| Number of fans |
2 fan(s) |
| LED indicators |
Yes |
| Reset button |
Yes |
| Product colour |
Black |
| Form factor |
1U |
| Rack mounting |
Yes |
| Performance |
|---|
| Mean time between failures (MTBF) |
393648 h |
| Flash memory |
128 MB |
| Internal memory |
512 MB |
| Memory type |
DRAM |
| Processor frequency |
800 MHz |
| Power |
|---|
| Power consumption (max) |
33.88 W |
| AC input voltage |
100 - 240 V |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
3.6 kg |
| Height |
44 mm |
| Depth |
250 mm |
| Width |
440 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
