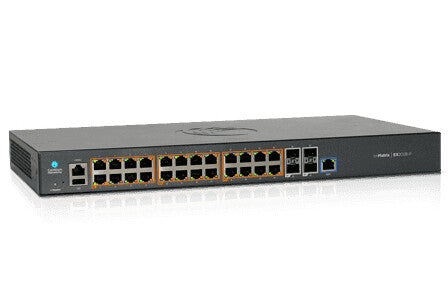

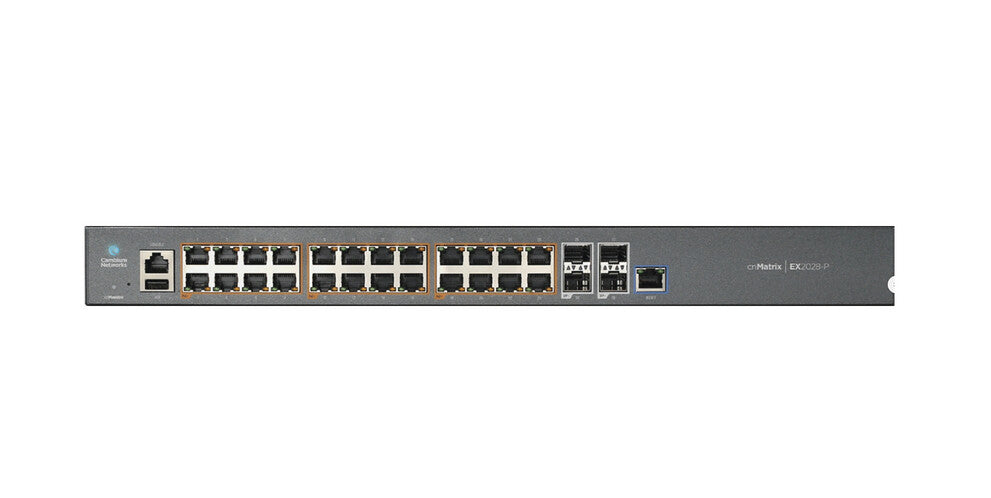

Cambium Networks EX2028-P Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

Cambium Networks EX2028-P Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

£1,477.70 GBP
£1,477.70 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

MX-EX2028PXA-0

103 in stock

  • Full Line Rate, non-blocking architecture
  • Easy and simple, free cloud (or on premise) management with cnMaestro™
  • Zero-touch deployment of switches makes installation easy
  • Policy Based Automation eliminates manual and time consuming configuration
  • Enhanced Security with automated device profiling and segmentation
  • Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
  • Unified Wired-Wireless access solution
Intelligent Ethernet PoE Switch, 24 x 1 Gbps and 4 SFP+ fiber ports - no power cord

Improve network performance while reducing the time and cost of provisioning and management
cnMatrix™ EX2028-P switches simplify network deployment and operation. When deployed with cnPilot™ WLAN access points and the cnMaestro™ management system, network operators have an affordable, feature rich, high quality unified wired/ wireless enterprise grade network. Improve performance, security and end user satisfaction while reducing costs with cnMatrix EX2028-P.

Management features
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Yes
Web-based management Yes
Configuring Location Settings (CLI) Yes
ARP inspection Yes
System event log Yes
User operation log Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity 4
USB 2.0 ports quantity 1
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3u, IEEE 802.3x
Broadcast storm control Yes
Auto MDI/MDI-X Yes
Flow control support Yes
VLAN support Yes
Number of VLANs 4094
Data transmission
MAC address table 16384 entries
Switching capacity 128 Gbit/s
Throughput 128000 Mpps
Packet buffer memory 1.5 MB
Security
DHCP features DHCPv6 snooping
Access Control List (ACL) Yes
IGMP proxy Yes
IGMP snooping Yes
Static port security Yes
Password protection Yes
SSH/SSL support Yes
Authentication type RADIUS
Security algorithms 802.1x RADIUS
MAC address filtering Yes
Protocols
Management protocols SNMP v1, v2, and v3, SSH 1.5 and 2.0, RFC 4252: SSH, RFC 4253: SSH,• RFC 4254: SSH, RFC 4251: SSH, RFC 4716: SECSH, RFC 4419, SSL 3.0, RFC 2246, RFC 2818, RFC 3268
Design
Rack mounting Yes
Form factor 1U
Product colour Grey
LED indicators Link, PoE
Number of fans 2 fan(s)
Performance
Internal memory 512 MB
Flash memory 128 MB
Mean time between failures (MTBF) 285350 h
Power
Power supply included Yes
AC input voltage 100 - 230 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 24
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 400 W
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) 40 - 70 °C
Weight & dimensions
Width 440 mm
Depth 250 mm
Height 44 mm
Weight 3.96 kg
