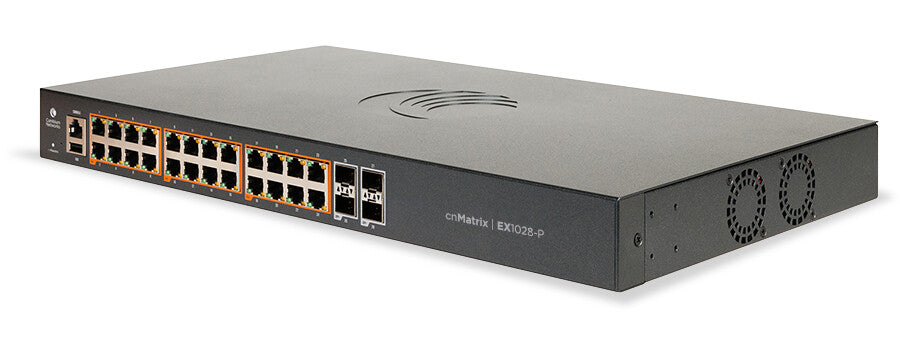

Cambium Networks EX1028-P Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Cambium Networks EX1028-P Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
SKU:MX-EX1028PXA-E
Regular price
£598.81 GBP£499.01 GBP
Regular price
£0.00 GBP
Sale price
£598.81 GBP£499.01 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Low stock: 3 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Managed L2/L3 SNMP v1/v2/v3
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 24
- MAC address table: 16000 entries
- Access Control List (ACL)
- 1U Rack mounting
- AC Power over Ethernet (PoE)
cnMatrix Switch EX1028-P, 56 Gbps, 24 x 10/100/1000 PoE, 4 SFP, EU
Improve network performance while reducing the time and cost of provisioning and management
The cnMatrix series of fully managed switches delivers full Layer 2 capabilities with enhanced access security.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
| ARP inspection | Yes |
| MIB support | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Network | |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Port mirroring | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Throughput | 56 Gbit/s |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Security | |
|---|---|
| DHCP features | DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Security algorithms | SSH, SSH-2 |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Management protocols | SNMP v1/v2/v3 |
| Design | |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Performance | |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Power | |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 55 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 250 mm |
| Height | 44 mm |
