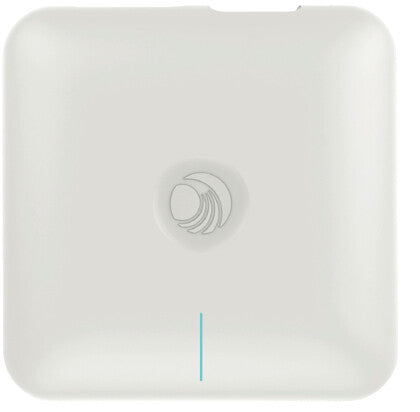

Cambium Networks cnPilot E600 3850 Mbit/s White
Cambium Networks cnPilot E600 3850 Mbit/s White
SKU:PL-E600X00A-EU
Low stock: 3 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 2.4 GHz
- 5 GHz
- Maximum data transfer rate: 3850 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11w, IEEE 802.3af, IEEE 802.3at
- 802.1x RADIUS, EAP-AKA, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, WPA-TKIP, WPA2-AES
The High powered, Gigabit speed, beamforming, Multi-user MIMO (MU-MIMO) 802.11ac wave 2 E600 access point with a 4x4 array antenna array implements the latest standards. Perfect for just about any place needing high capacity throughput, high range, and/or high client capacity. Ideal workhorse to take on high traffic demand in Classrooms (Schools), Indoor public spaces, Malls, Hotels, or Enterprise offices
| Features | |
|---|---|
| Maximum indoor range | 250 m |
| Quality of Service (QoS) support | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Airtime Fairness (ATF) | Yes |
| Band steering | Yes |
| VLAN support | Yes |
| Fit AP mode features | Hotspot 2.0 |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Automatic channel selection | Yes |
| Number of users | 512 user(s) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11w, IEEE 802.3af, IEEE 802.3at |
| Frequency band | 2400 - 2484/5150 - 5850 GHz |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 3850 Mbit/s |
| 5 GHz | Yes |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| Access Control List (ACL) | Yes |
| Number of SSID supported | 16 |
| Security algorithms | 802.1x RADIUS, EAP-AKA, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, WPA-TKIP, WPA2-AES |
| Protocols | |
|---|---|
| DHCP server | Yes |
| Management features | |
|---|---|
| Syslog | Yes |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
|---|---|
| Power consumption (max) | 22 W |
| AC input voltage | 12 V |
| Design | |
|---|---|
| Internal | No |
| Certification | FCC, ETSI, CEEN 60601-1-2 (Medical EMC)UL2043 Plenum rated |
| LED indicators | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Product colour | White |
| Antenna | |
|---|---|
| Antenna gain level (max) | 4.55 dBi |
| Weight & dimensions | |
|---|---|
| Weight | 400 g |
| Height | 180 mm |
| Depth | 42 mm |
| Width | 180 mm |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
