Cambium Networks cnPilot e501S 867 Mbit/s White
Cambium Networks cnPilot e501S 867 Mbit/s White
SKU:PL-501S000A-EU
Low stock: 1 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 2.4 GHz 300 Mbit/s
- 5 GHz 867 Mbit/s
- Maximum data transfer rate: 867 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.11w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- 802.1x RADIUS, EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK
- Internal Integrated antenna

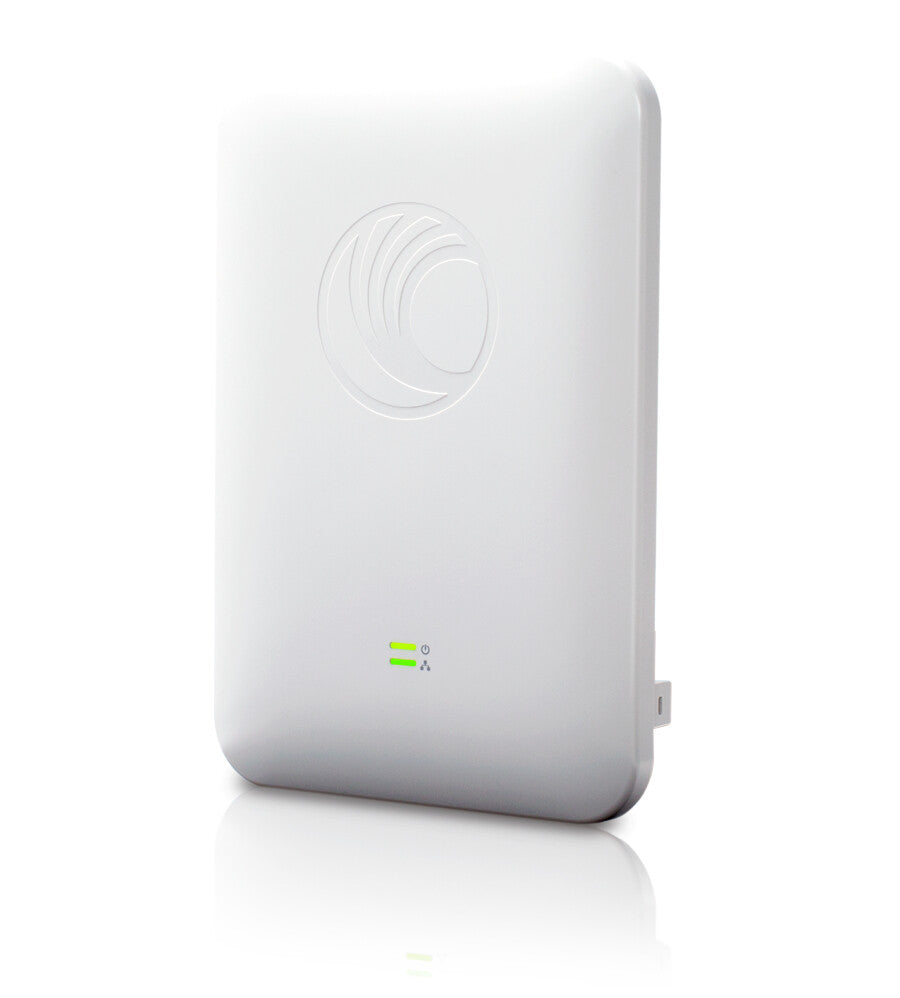

The cnPilot™ e501S 802.11ac Outdoor Sector Access Point includes an IP67 enclosure, 90° ~ 120° integrated sector antenna, supports 256 client associations, 16 SSIDs, WPA-2 encryption, Dynamic VLANs, DFS channels, Access Control Lists (ACL), and more.
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4 - 2.2484, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.11w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Cabling technology | 10/100/1000Base-T(X) |
| Auto MDI/MDI-X | Yes |
| MIMO | Yes |
| Spread spectrum method | DSSS, OFDM |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Fit AP mode features | Wireless distribution system (WDS) |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Fast roaming | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Band steering | Yes |
| Maximal-Ratio Combining (MRC) | Yes |
| Airtime Fairness (ATF) | Yes |
| Cyclic Delay Diversity (CDD) | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Quality of Service (QoS) support | Yes |
| Security | |
|---|---|
| Security algorithms | 802.1x RADIUS, EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK |
| MAC address filtering | Yes |
| Number of SSID supported | 16 |
| IGMP snooping | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Access Control List (ACL) | Yes |
| VPN support | L2TP, L2oGRE, PPPoE |
| Protocols | |
|---|---|
| DHCP server | Yes |
| Management protocols | SNMP v1, v2c, v3 |
| Management features | |
|---|---|
| Command-line interface (CLI) | Yes |
| Syslog | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
|---|---|
| Power over Ethernet (PoE) | No |
| Power consumption (typical) | 8 W |
| Power consumption (max) | 13 W |
| Design | |
|---|---|
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Certification | FCC, CE, IC, UL, EN60601-1-2, WEEE/RoHS |
| Antenna | |
|---|---|
| Antenna type | Internal |
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 13 dBi |
| Polarization | Dual polarization |
| Weight & dimensions | |
|---|---|
| Width | 204 mm |
| Depth | 65 mm |
| Height | 300 mm |
| Weight | 1.3 kg |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
