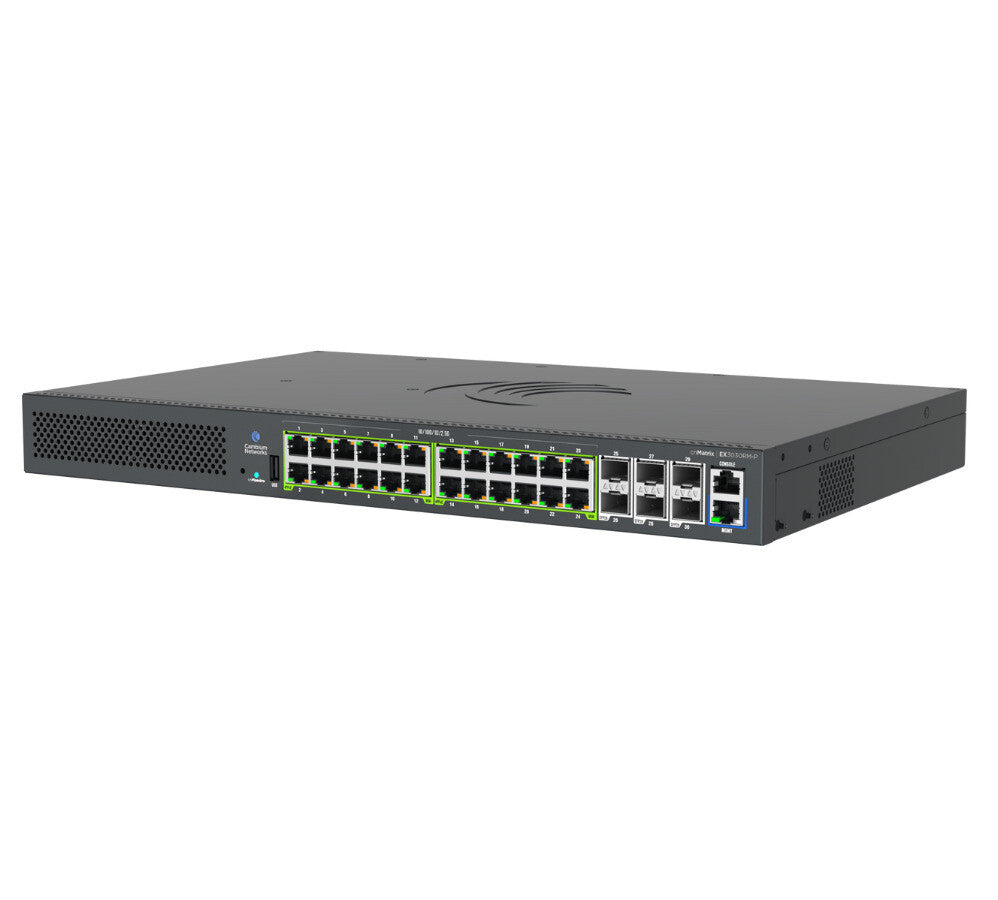

• Cambium Networks cnMatrix EX3030RM-P network switch, Managed, 24-port, black
1 2

Cambium Networks

Cambium Networks cnMatrix EX3030RM-P Managed L2/L3 2.5G Ethernet (100/1000/2500) 1U Black

Cambium Networks cnMatrix EX3030RM-P Managed L2/L3 2.5G Ethernet (100/1000/2500) 1U Black

MXEX3030MXPA10

£3,827.60 GBP£3,189.67 GBP
£0.00 GBP £3,827.60 GBP£3,189.67 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 2 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Managed L2/L3 Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 24 Console port: USB
  • MAC address table: 32000 entries Switching capacity: 420 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting
  • AC
Intelligent Ethernet Switch, 24 MG(2.5G) ports with 4PPoE(90W) , and 6 SFP28, 25Gbps ports. Dual/Removeable power supplies (not included) - no pwr cord, non-USA only

The cnMatrix™ series of fully managed Ethernet switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. The EX3030RM-P offers 24 2.5G/1G access ports with 6 x 25G SFP28 uplink ports. The EX3030RM-P switch also feature up to 90W of PoE max power per port. These switches come with a 5-Year limited lifetime warranty.

Management features
Switch type Managed
Switch layer L2/L3
Quality of Service (QoS) support Yes
Web-based management Yes
ARP inspection Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500)
Fiber ports quantity 6
Fiber optic connector SFP28
Console port USB
Network
Networking standards IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az
Port mirroring Yes
Spanning tree protocol Yes
Link aggregation Yes
Auto MDI/MDI-X Yes
Flow control support Yes
VLAN support Yes
Number of VLANs 4000
Data transmission
MAC address table 32000 entries
Switching capacity 420 Gbit/s
Jumbo frames support Yes
Jumbo frames 9000
Packet buffer memory 3 MB
Security
DHCP features DHCP client, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL) Yes
IGMP snooping Yes
SSH/SSL support Yes
Multicast features
Multicast support Yes
Protocols
Routing protocols OSPF, OSPFv2, RIP, RIP-2
Design
Rack mounting Yes
Form factor 1U
Product colour Black
Performance
Built-in processor Yes
Processor frequency 1200 MHz
Memory type DRAM
Internal memory 1000 MB
Flash memory 256 MB
Power
Power source AC
Power supply included No
Power consumption (max) 69.5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 0 - 95%
Weight & dimensions
Width 280 mm
Depth 440 mm
Height 44 mm
Weight 5.06 kg
View full details
